Linertec LTS-200 Series User Manual

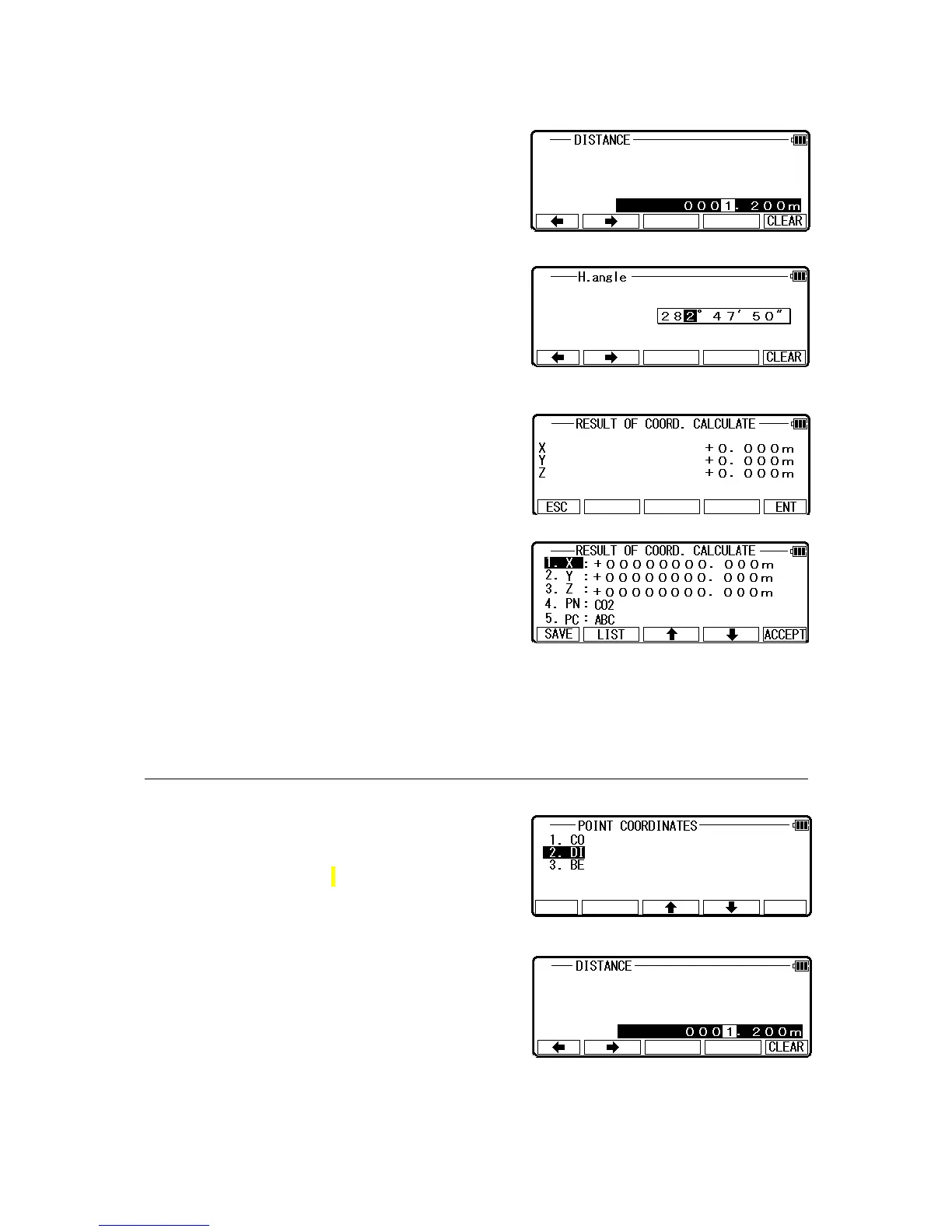

Input your desired PC by pressing keys, and press
[ENT] to view DI screen.
Input your desired value and press [ENT] to open
the H. ANGLE input window.
Input your desired value to view the RESULT OF
COORD. CALCULATE screen.
The Second point Coordinates are displayed by plus
or minus from the known Coordinates.
Press [ENT] to view the following screen.
The PN, X, Y, Z and PC are viewed and can be edited.
If all items are OK, press [F5] [ACCEPT] to save them.
6.1.2.2 Distance and H. angle
In the same manner, the values of Distance and H.
angle are input as follows and the Second point
Coordinates are displayed.
Select 2. DI and press [ENT] to view DI screen.
63
