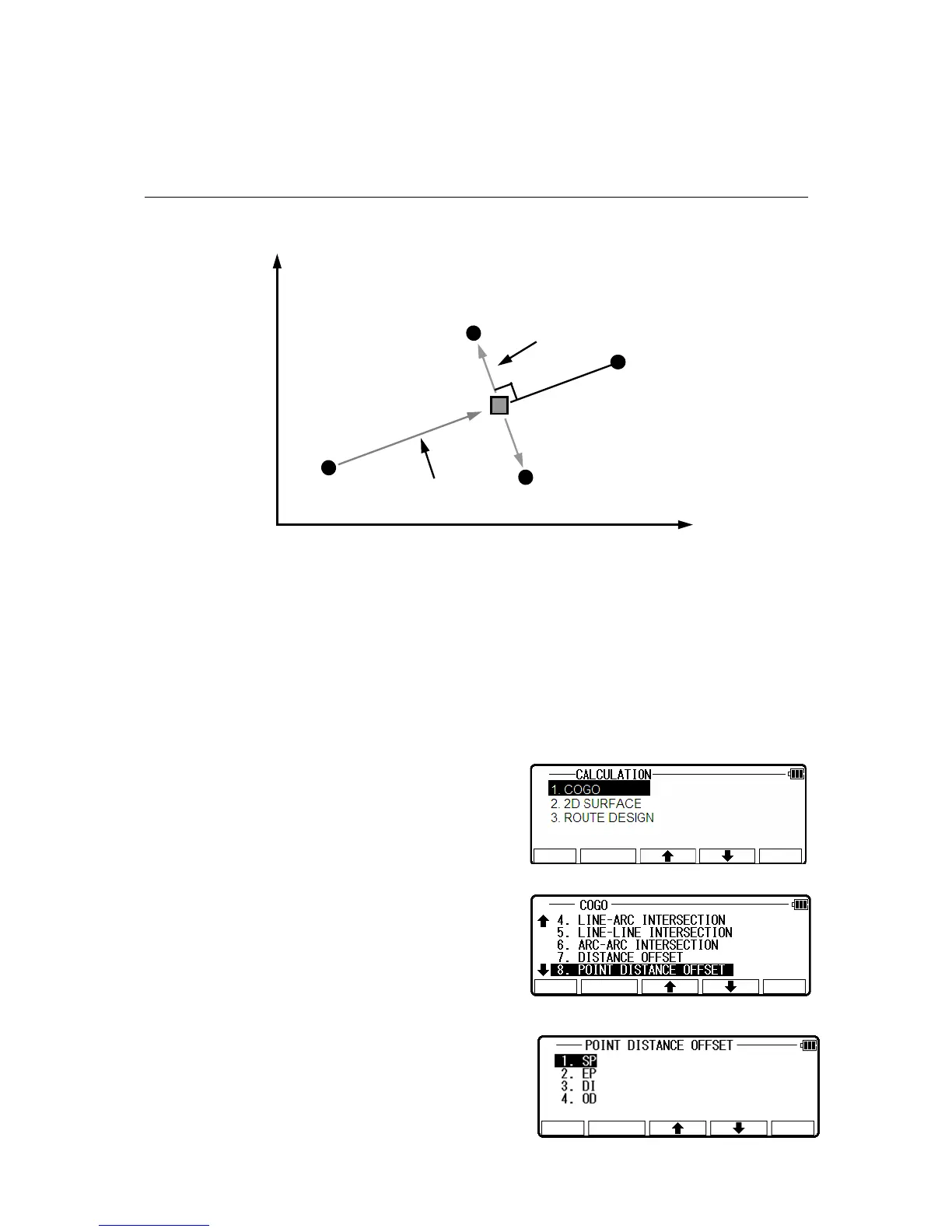

6.1.8 Point Distance Offset
New offset point is calculated by inputting distance from Start point and Offset from line.
Input: line: Start point and End Point
Distance from Start point (DI)
Offset from the line (OD) (moving in the direction from start point to
End Point, right is positive, left is negative)
Output: New Point
From the LinertecExpress screen, press 4 to view the
CALCULATION screen.
Select 1. COGO and press [ENT] to view the COGO
screen.
Select the 8. POINT DISTANCE OFFSET and press
[ENT] to view POINT DISTANCE OFFSET screen.
75
(+)
SP
EP
New Offset Point
New Point
New Offset Point
(-)
OD
DI
