Linertec LTS-200 Series User Manual

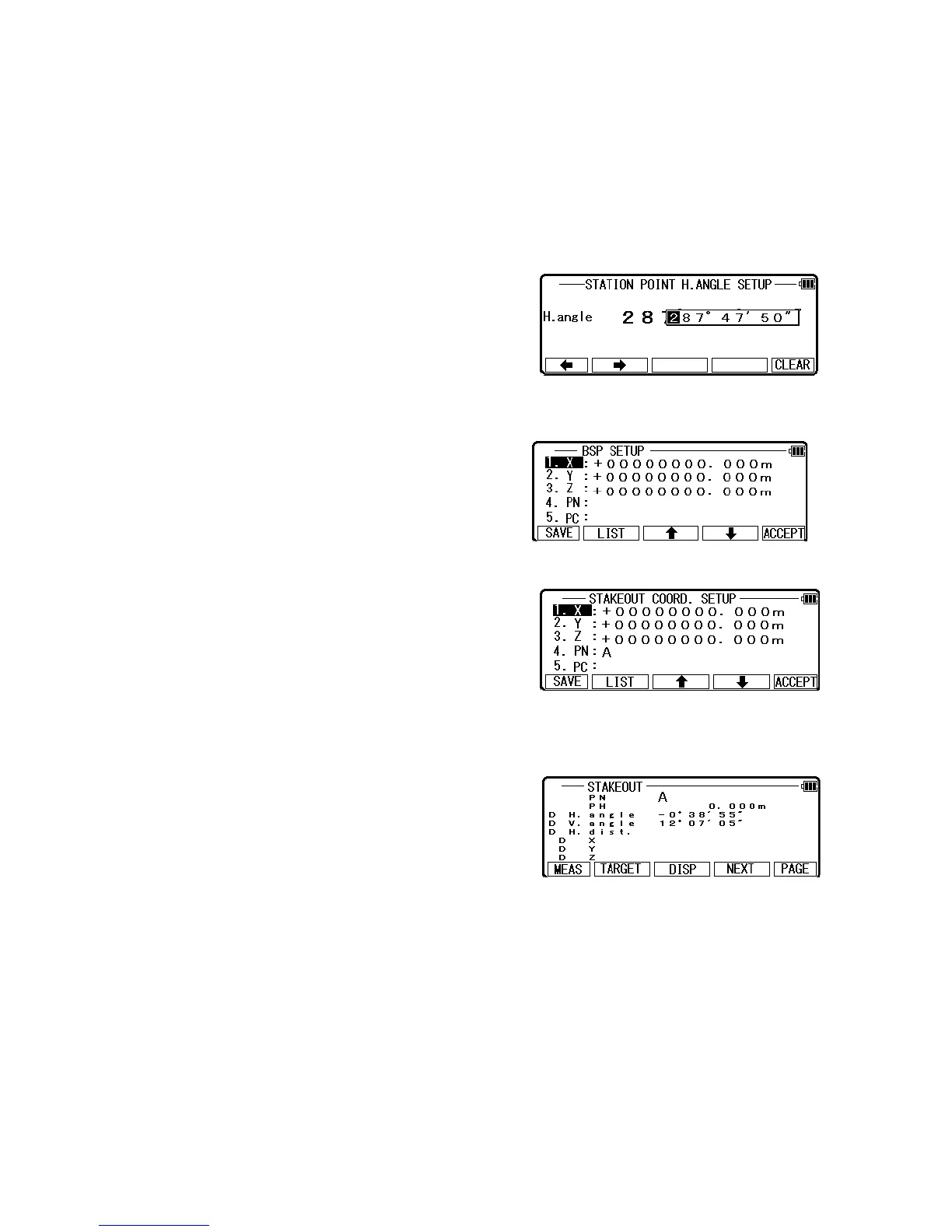

Press [ESC] to view STATION POINT H.ANGLE SETUP screen.
Input the H. angle by pressing [F2] [INPUT], [F3] [0SET] and [F4] [HOLD] or Backsight
Coordinates by pressing [F5] [BSP].
Pressing [F2] [INPUT]
Input any horizontal angle.
Pressing [F5] [BSP]
The information for Back Ssight Point is obtained.
Press [ENT] to finalize the input.
Aim Reference Point , then press [ENT] to enter
Multiple Orientation.
For more details, refer to “11.1.4 Multiple
Orientation”.
Press [ENT] to enter STAKEOUT COORD.SETUP
screen.
Open the PN, X, Y, Z, PH and PC input window and input each.
Save the data by pressing [F1] [SAVE].
Press [F5] [ACCEPT] to view the STAKEOUT
screen.
Aim at the Stake Out Point and press the [F1] [MEAS] to begin the Stake Out.
Deviation of each value is displayed.
Form of the screen to display deviation of the Stake Out can be changed by the selections of
the “5.6 Compare method selection” in “5.PREFERENCE” setting.
