Linertec LTS-200 Series User Manual

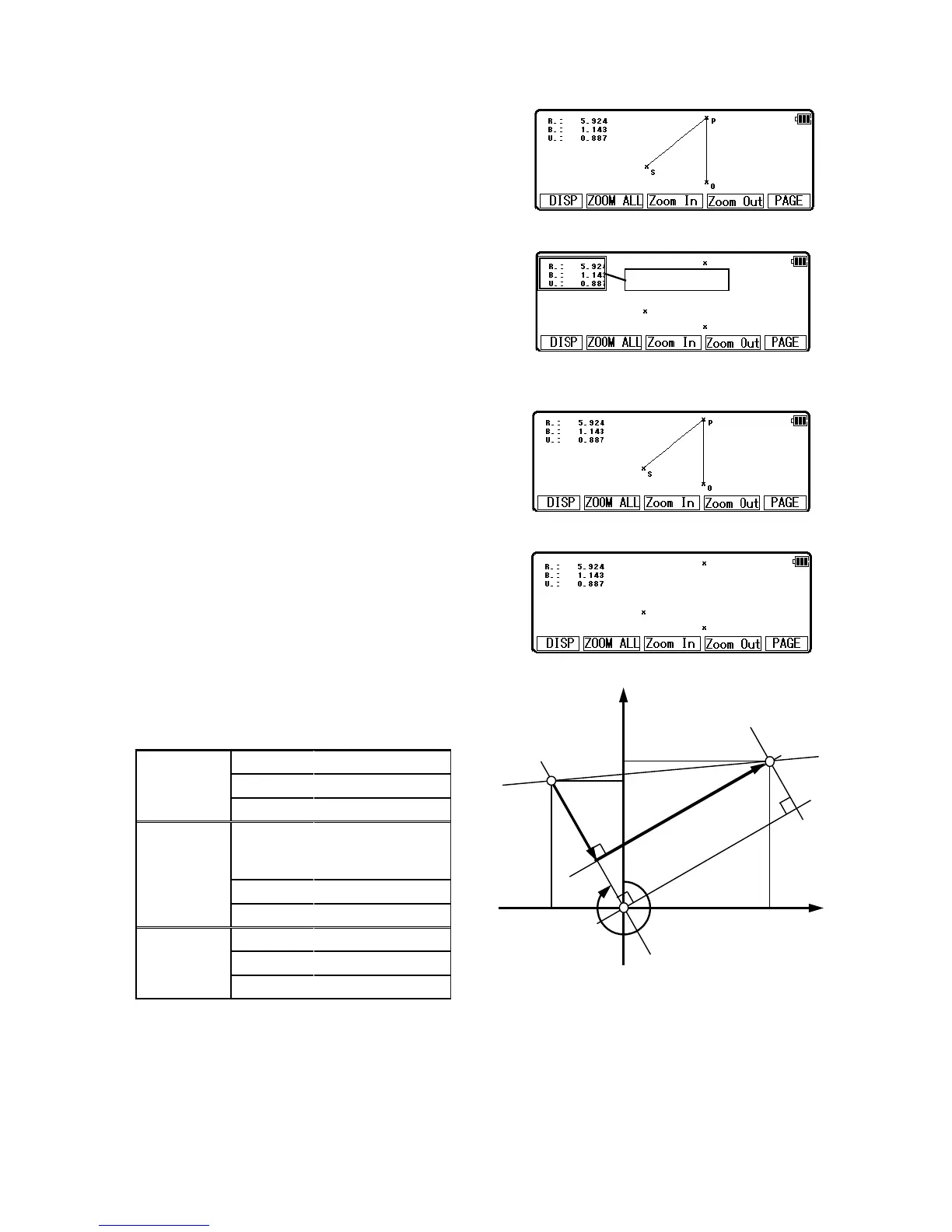

Press [F5] [PAGE] to view another screen.
Press [F1] [DISP] to change graphic view.
[Point Name]
S Station Point
P Measurement Point
O Design Point
[DEVIATION Information]
Display the distance and direction from point P to
Point O
F(Forward) / B(Back) Forward/Backwards
L(Left) / R(Right) Left/Right
U(UP) / D(Down) Up/Down
For more details on the operating procedure,
refer to “10. DATA”
Press [ENT] or [ESC] to return STAKEOUT screen.
Example：
In this case, the operator tells you to move 3.170m forward, 6.830m to the left and 1.000m
down against Point P.
97
Station
X 0.000 m
Point
Y 0.000 m
S
Z 0.000 m
Measuremen
t
Point
H.angle 330°00′00″
P
H.dst 5.000 m
V.dst 1.000 m
Design
X 5.000 m
Point
Y 5.000 m
O Z 0.000 m
B.: 3.170
R.: 6.830
D.: 1.000
O
S
P
330°
DEVIATION
