CP5 • Replacing components
CP_SEM_60-00-60.001 45

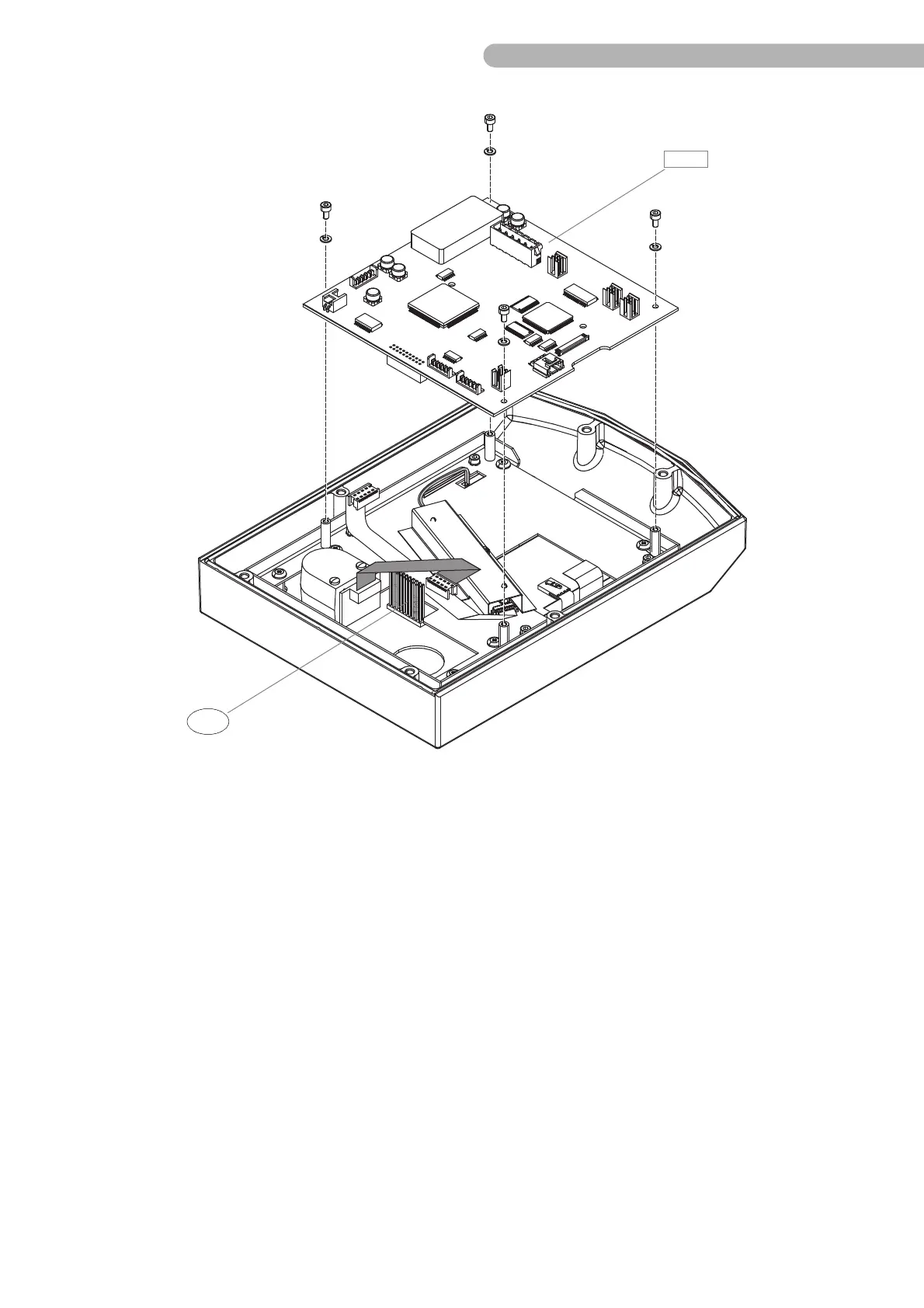

Fig. 20: Disconnecting the control panel (2)
◗ Remove the four distance bolts (internal/external thread M3x12 (AF 5.5 mm)
from the circuit board A 5.
◗ Take care to lift the circuit board straight upwards to avoid bending the contact pins a.
A 5
a
