LivaNova CP5 - Page 46

CP5 • Replacing components
46 CP_SEM_60-00-60.001

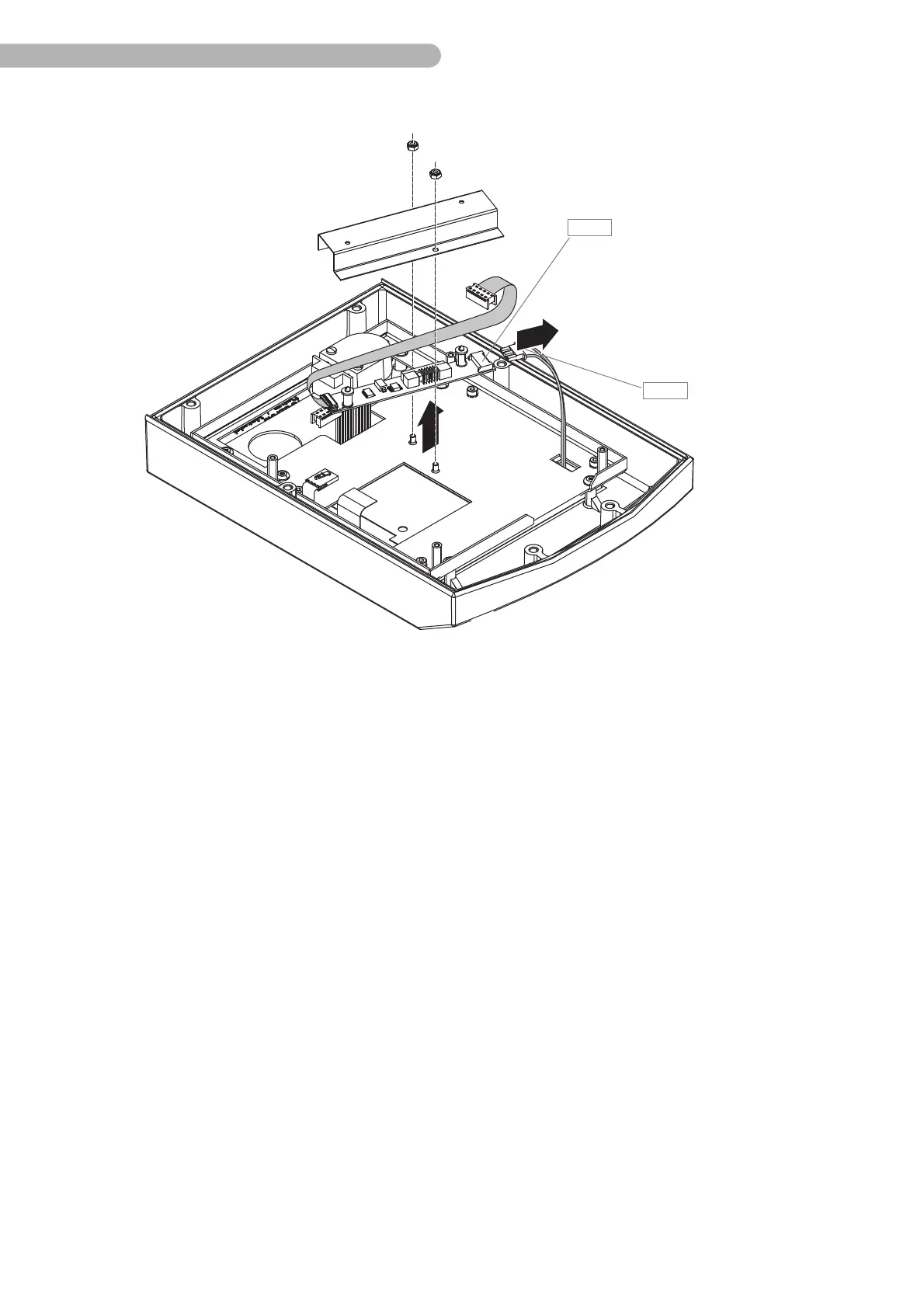

Fig. 21: Disconnecting the control panel (3)
To remove the circuit board inverter A 8:
◗ Detach both self-locking nuts (DIN 985 M3 AF 5.5) from the cover.
◗ Loosen the connection LCD A 32 and lift the circuit board up.
A 38
A 8
