32 | 4D-Nucleofector
®
Manual
2.13.1.2 Cleaning the Nucleofection
®
Vessel Tray (X, Y, or
96-well Unit)
To allow convenient cleaning, the Nucleofection
®
Vessel tray
can be removed from the X, Y, and 96-well Unit. To dismount
the tray please follow the instructions below:
• Open the “Settings” menu after vessel type selection
• Press “Cleaning Mode”.
• The drawer will open, giving access to the
Nucleofection
®
Vessel tray.
• Remove the tray from its suppot by pressing the two
plastic noses on the left and right sides of the tray.
• Wash the tray with a cloth dampeded in water and rinse
it with tap water until all leftovers are washed off.
• Dry the tray carefully.
• Remount the dried tray on the suppot.
• Press “Finish”.
• The drawer will close and the tray will be moved to its
home position.
2.13.1.3 Version
Tap on “Version“ to find out more information about the
software and the Lonza program list version. The table “De-
vice Versions“ displays the firmware version and the serial
number of all functional units. See „2.13.4 Firmware Update“
for instructions on updating the firmware.

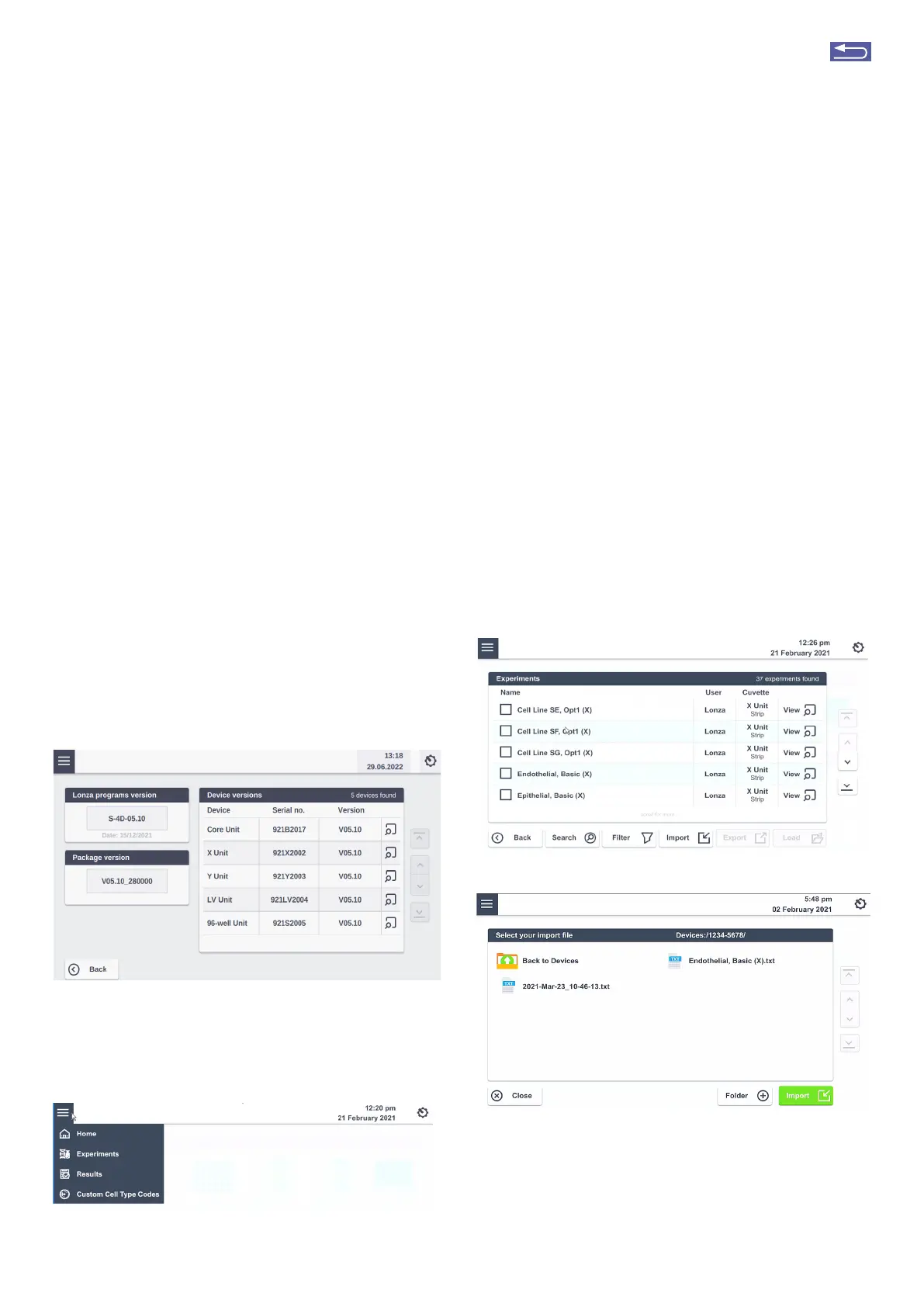

Figure 2.43: The table “De vice Versions“ displays the firmware version
and the serial number of all functional units
2.13.2 Left menu
Activate the left menu by tapping on the accordion icon on
the left side of the screen (Figure 2.4).
Figure 2.44: Accordion menu drop down.
Figure 2.45: Experiment screen. (A) all available experiments are listed with
information on the available cuvette format. Check the box and tap on
“Expot” to expot the experiment file or tap on “Load” to stat the experi-
ment. Tap on “View” to see details about the experiment. (B) Tap on “Impot”
to impot an experiment from an USB Stick and follow the instructions.
A
B
Tapping on home will close this screen and you will return
to the home screen (Figure 2.7).
2.13.2.1 E xperiments
This menu displays a list of all Experiments which are
either ready-to-use templates pre-installed by Lonza
(i.e. optimization schemes for X, Y, and 96-well Unit only)
or previous experiments saved by the user. By pressing
“Open” you can access the Experiment setup screen for the
respective experiment.
Experiment impot: The user can also upload an experi-
ment that has been predefined on another system or via
the PC Editor Software (see chapter 2.14.2). To load a prede-
fined experiment from a USB drive, inset the drive into the
USB pot on the front of the Core Unit, press “Impot ” and
follow the instructions displayed on the screen
(Figure 2.45, B).
Experiment expot or loading: Tap “Open” to load experi-
ment or on the checkbox in front of an experiment to ex-
pot it onto a USB stick. To delete experiments from the list,
select the respective experiment and select “Delete”.
