Start-up
- 48 - 10.13
13.3 Current/voltage display
The actual values of welding voltage and
welding current are displayed during and af-
ter welding (hold function).
These values can be displayed individually
or together on the graphic display
Possible display:
 Welding voltage and welding current
 Welding voltage
 Welding current

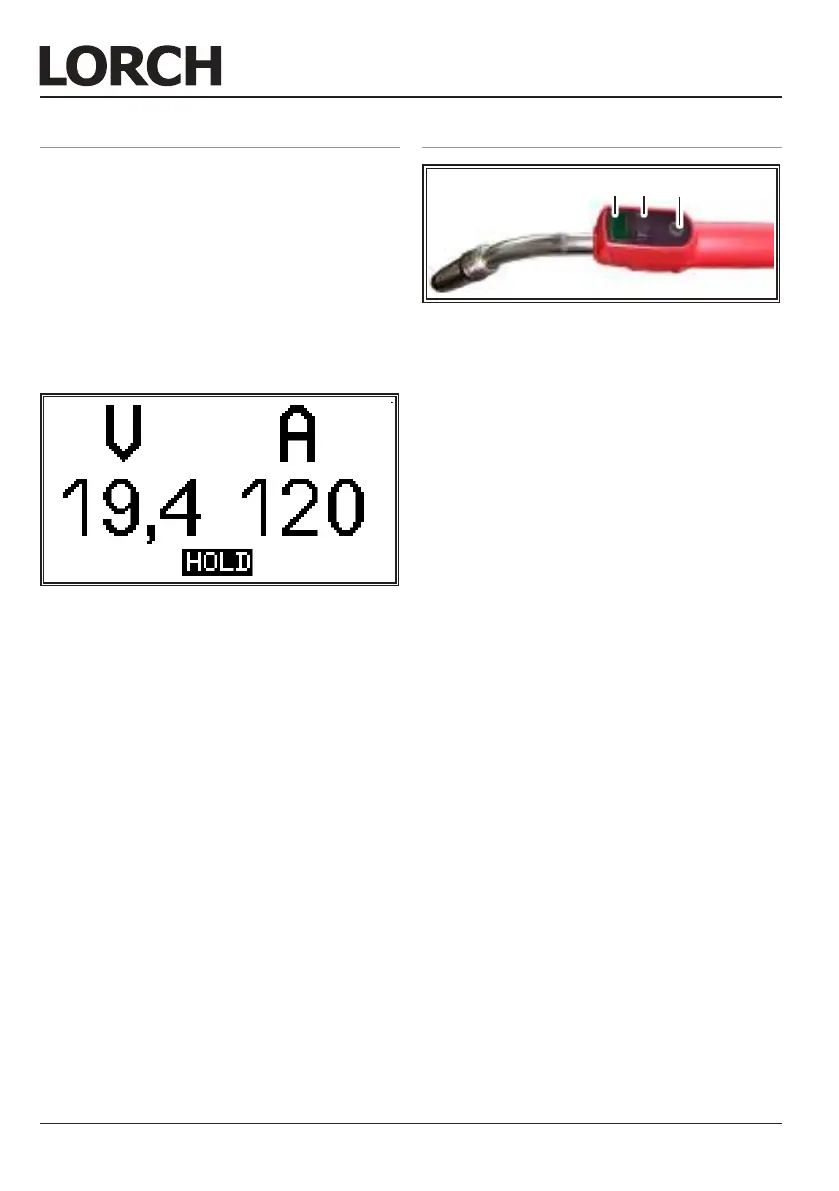

Abb. 17: Display mode
Change of display mode
 Press menu key 48.
 Select menu option „Display mode” by
pressing operation knob 52.
 Conrm menu option „Display mode” by
pressing operation knob 52.
 Set the desired diisplay mode by turning
operation knob 52.
 Conrm the desired display by pressing
operation knob 52.
9 For about 2 seconds a preview of the dis-
play will be shown if the display mode has
been changed.
13.4 Torch with remote control
65 66 67
Abb. 18: Torch PowerMaster
65 Torch display
Displays the actual welding step or wire
feed speed in Tiptronic mode. The cur-
rent job will be displayed
66 Torch rocker switch
Change welding step and wire feed
speed. Between active jobs can
switched over whilst being in Tiptronic
mode .
67 Torch key „Mode”
By pressing (for at least 2 seconds)
changeover between Tiptronic and
regular mode will take place. A quick
press In regular mode change be-
tween wire feed, welding step and
material thickness (at selected charc-
teristics).
