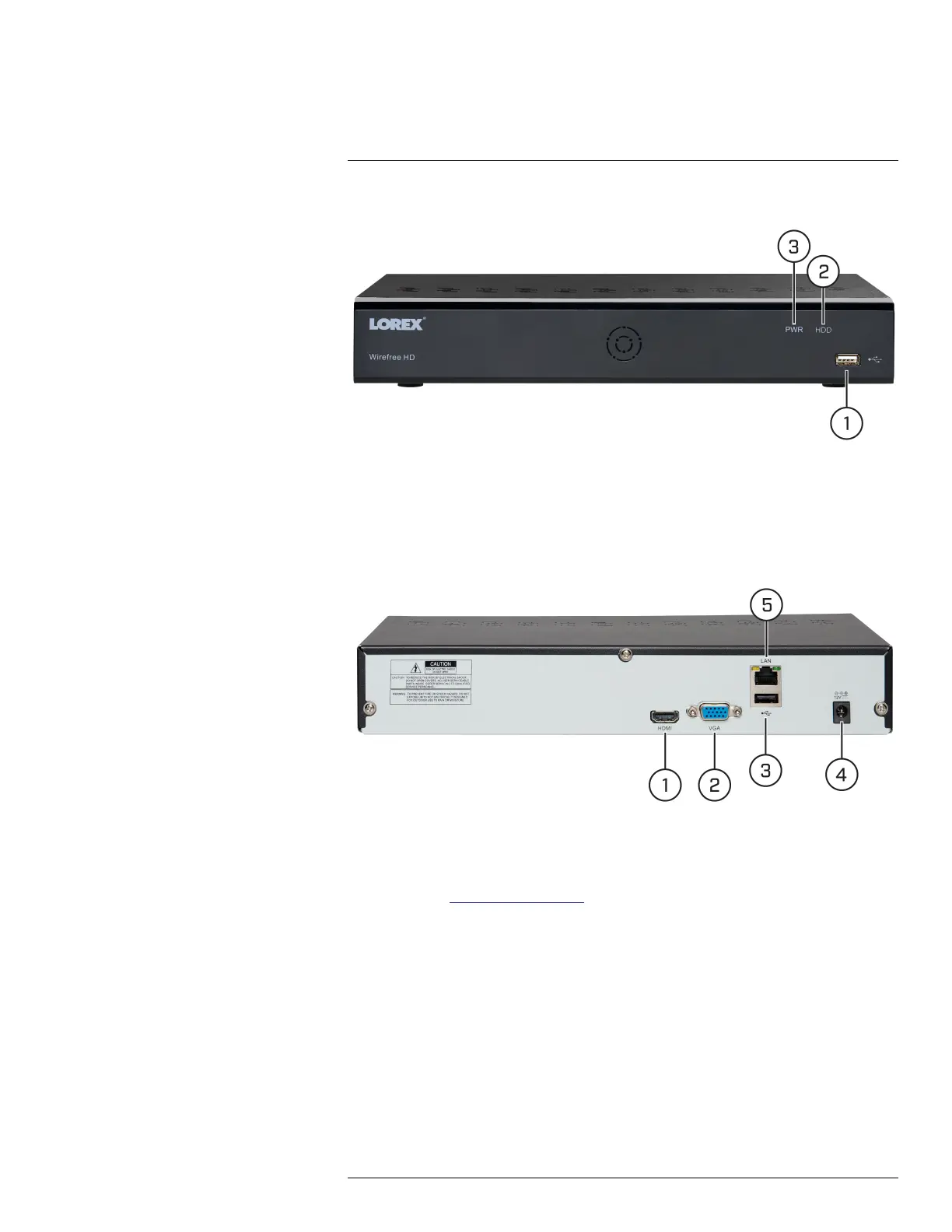

DVR Overview3
3.1 Front Panel
1. USB Port: Connect a USB mouse (included) or connect a USB flash drive (not included) for
data backup or firmware upgrades.
2. HDD – LED Indicator: Glows to indicate hard drive is in normal state. Turns off when there
is a hard drive error.
3. PWR – LED Indicator: Glows to indicate the system is on.
3.2 Back Panel
1. HDMI: Connect the included HDMI cable to view the system interface on an HDMI monitor
or TV (1080p output supported).
2. VGA: Connect a VGA monitor (not included) to view the system interface.
3. USB: Connect the wireless receiver for your Wire-Free cameras. For a full list of compatible
cameras, visit lorex.com/compatibility.
4. Power (12V): Connect the included 12V DC power adapter.
5. LAN: Connect the included Ethernet cable to a router or switch on your network for local and
remote connectivity.
#LX400109; r. 2.0/54857/55689; en-US 6
