3 -72

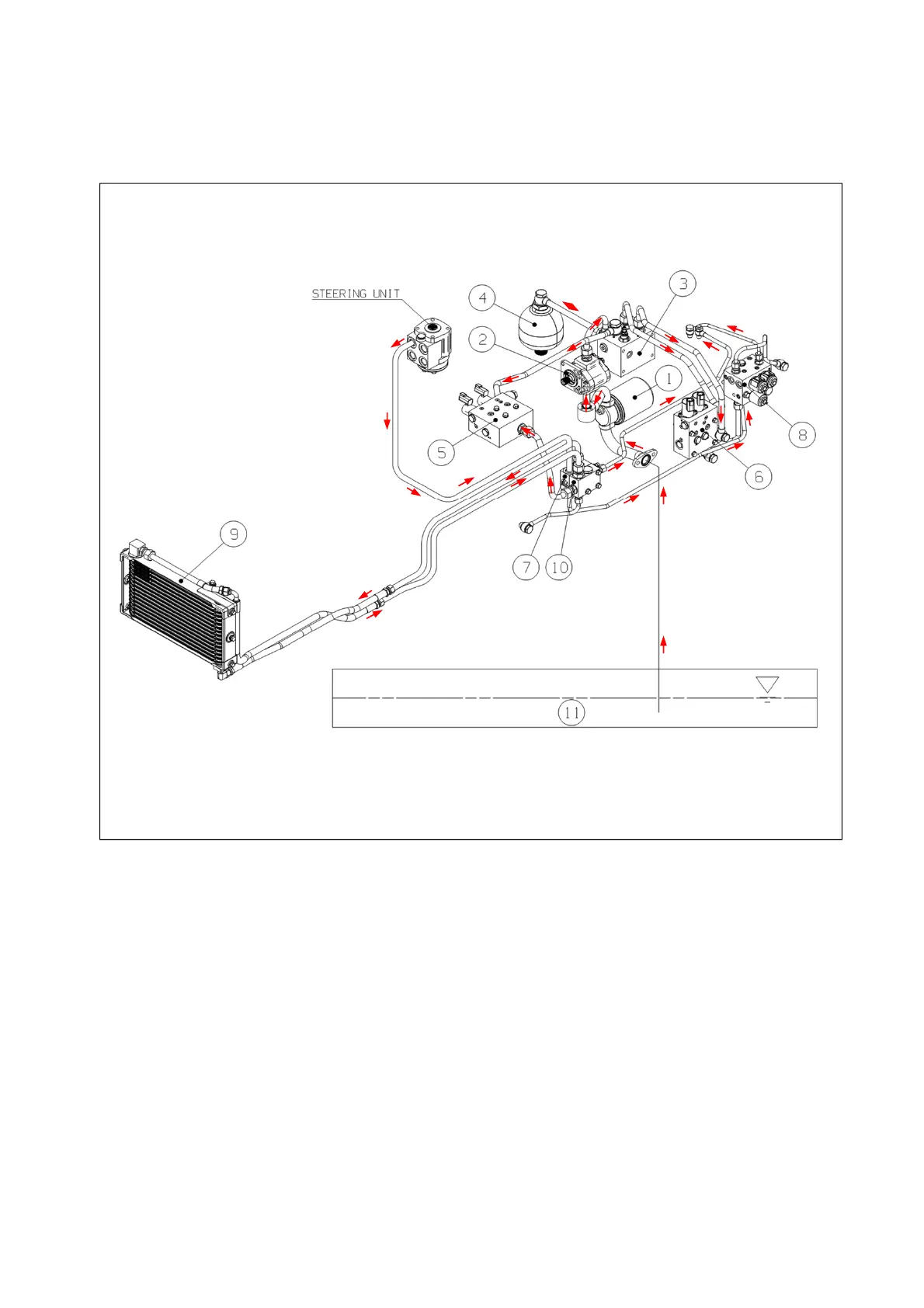

1. Power shift oil filter
2. TM control hydraulic pump
3. Sequence valve
4. Accumulator
5. Power shift valve (C1/C2)
6. Power shift valve (C3/C4)
7. Sequence valve
8. TM control valve
9. Oil cooler
10.Oil cooler valve
⑤ Power shift transmission hydraulic control line (PST, optional)
11. Oil tank (Transmission case)
To Next Page
