4 -21
▶When adjusting the stabilizer’s length, set the implement’s lateral swinging
clearance to be 20~40mm. (0.8~1.6 in.)
Notice

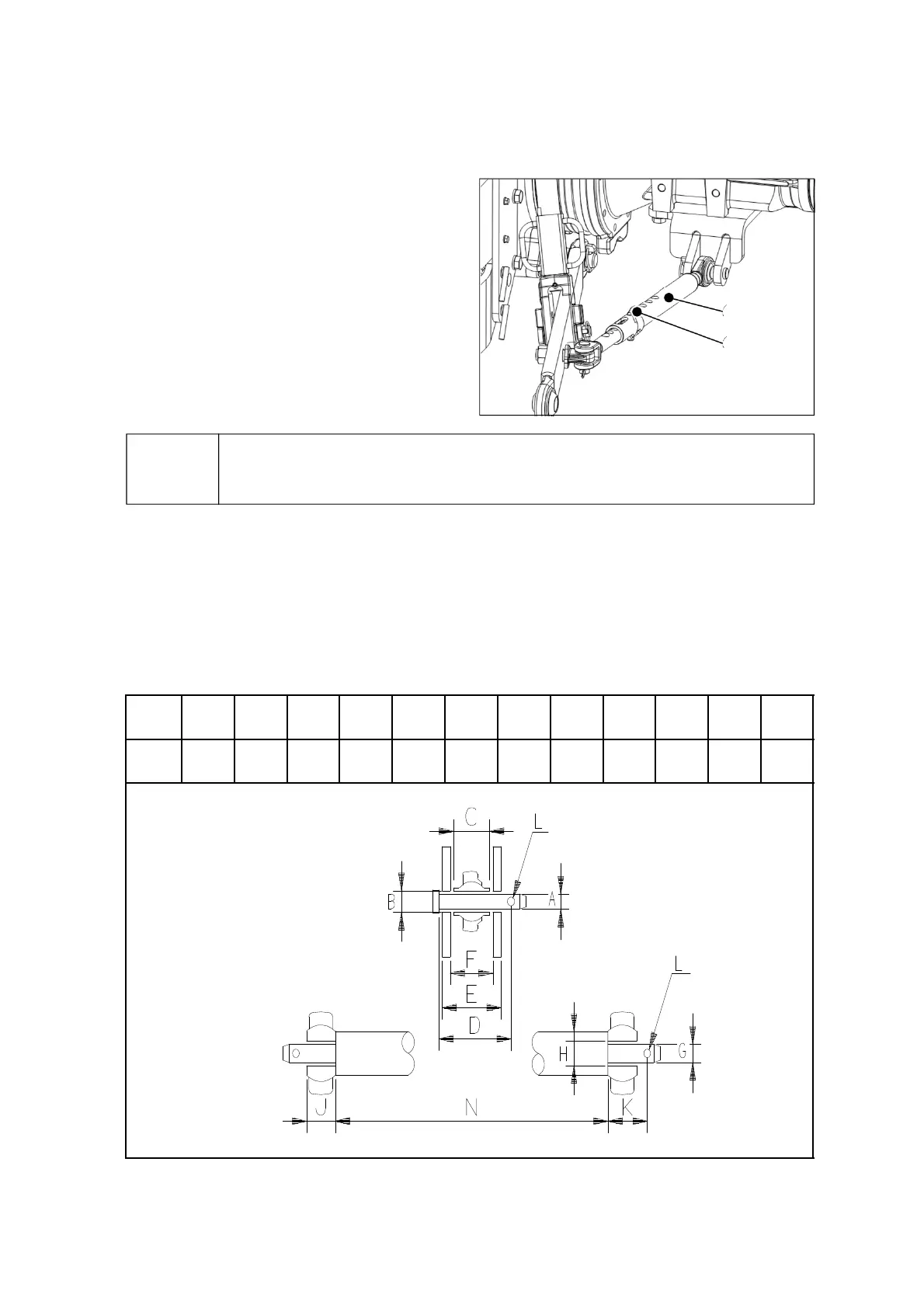

③ Adjustment of stabilizer (optional)
①
②
- Telescopic type
 Pull up the link pin(1) and find a suitable hole
with adjusting the stabilizer’s length.
 Insert the link pin(1) into the hole and let it
tightened firmly by locking spring.
④ Reference of implement installation part
AB
C
(MAX)
D
(MIN)
E
(MAX)
F
(MIN)
GHJ KLN
CAT.2
25.4
(1.00)
25.7
(1.01)
51
(2.00)
93
(3.66)
86
(3.38)
52
(2.04)
28
(1.10)
28.7
(1.12)
45
(1.77)
49
(1.92)
12
(0.47)
825
(32.4)
Unit : mm(inch)
