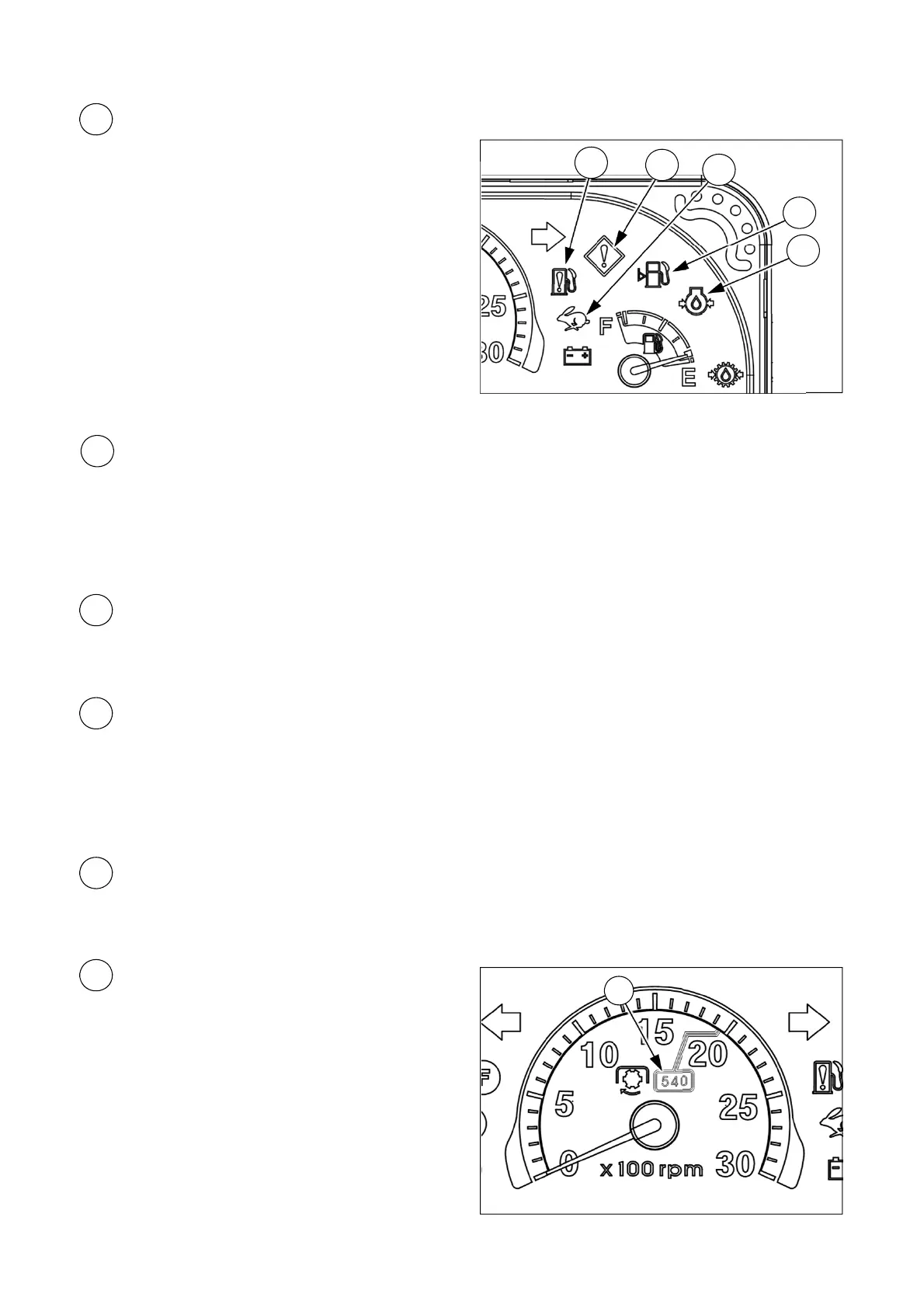

Engine oil pressure indicator
26
Low fuel level warning indicator
When the fuel level in the fuel tank is below minimum level, this indicator will be turned on. If this
indicator turns on, fill the fuel tank immediately with fuel.
When working on the uphill/downhill, the fuel can be exhausted before this indicator is turned on.
Add fuel in advance.
27
High speed indicator (power shuttle model only)
This indicator will be turned on/off in power shuttle transmission with Hi-Lo system when pressing
Hi/ Lo buttons. Refer to the chapter 3-4. “Power Shuttle System” in this manual.
28
Vehicle control error warning indicator
29
Fuel filter warning indicator
When there is a restriction or excess water in the fuel filter, this indicator will be turned on. Remove
water in the fuel filter. (See chapter 5-5-(1) in this manual)
If there is any significant error on vehicle control, this indicator will be turned on. Contact your
authorized local dealer for check.
This indicator shows detailed information for vehicle control error in combination with other
indicators. For further details, see next page.
26
27
28
29
25
The light indicates oil pressure only and goes
out when sufficient oil pressure is present at the
oil sender.
This indicator will be turned on when turning the
key switch to “ON” position and it will be turned
off after starting engine.
If the indicator is turned on during operation,
stop the engine immediately and check the
engine oil level. If the engine oil level is normal,
contact your authorized local dealer for checking
the engine lubrication system.
It determined by the position of the needle on the
tachometer. The tachometer is marked to
indicate 540 RPM of rear PTO.
If the tachometer registers above the 540 RPM
mark for rear PTO operation, this indicates a
dangerous over-speed condition. Reduce the
engine speed immediately.
30
30
PTO speed indicator
