Chapt
er 5 XGT
Panel
Menu Explanat
ion
5-
20

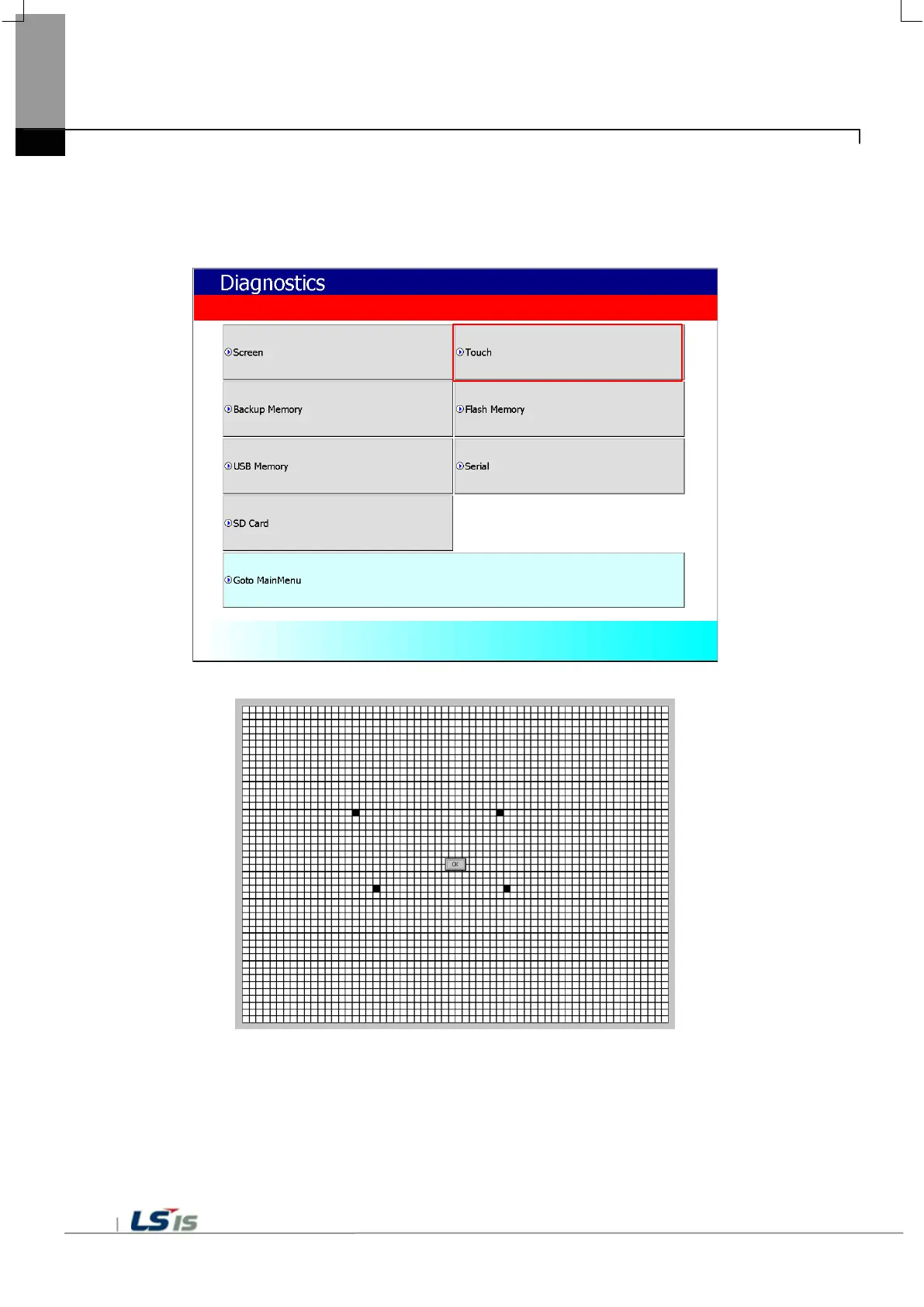

5.2.2 Touch Dia
gnos
tic
W
hen
you press the [
T
ouch] bu
tton, the diagn
ostic s
creen appear
s.
If y
ou touch the
screen, y
ou can
see that i
t is displ
ayed li
k
e the pi
c
ture below
.
Press the
[OK] button
to e
xit the
screen.
[XGT Panel Diagnostic
s
]
[T
ouc
h Diag
nos
tic
]
51
53
Table of Contents
Default Chapter
3
Installation Precautions
3
Table of Contents
7
Chapter 1 General Introduction
10
How to Use the Instruction Manual
10
Feature
11
Terminology
14
Chapter 2 System Configuration
16
Part Names
16
System Configuration
17
Chapter 3 Standard Specification
20
General Standards
20
Function Standards
22
Chapter 4 Installation and Wiring
24
Installation
24
Installation Environment
24
Notice in Handling
26
Precautions for Panel Installation
26
Wiring
29
Power Wiring
29
Ground Wiring
32
Chapter 5 XGT Panel Menu Explanation
33
Settings
35
Backlight Setting
35
Touch Setting
37
Datetime Setting
38
Environment Setting
39
Ethernet Setting
46
Buzzer Setting
47
Sound Setting
48
XP-Remote Setting
49
Diagnostics
50
Screen Diagnostic
51
Touch Diagnostic
52
Backup Memory Diagnostic
53
Flash Memory Diagnostic
54
USB Memory Diagnostic
55
Serial Diagnostic
56
SD Card Diagnostic
58
PLC Information
59
PLC Communication Setting
60
Connection Information
61
PLC Information
62
History of PLC Error
62
PLC Operation Mode Conversion History
63
History of Power off of PLC
63
PLC System History Information
64
N:1 Setting
65
Program Monitor
66
XGT Panel Update
67
Storage Function
68
Overview
68
Downloading a Project Using a Storage Device
69
Uploading a Project Using a Storage Device
70
Updating the Device Using a Storage Device
71
Chapter 6 Backup Files by Using Storage Devices
73
Path Structure in Case of File Backup
73
Operation Setting When There Is no Space for Backup
77
Monitoring Connection Status of External Storage Equipment
78
Chapter 7 Maintenance
80
Maintenance
80
Daily Maintenance
80
Periodical Maintenance
81
Chapter 8 EMC Standard Certification
83
Requirement for EMC Standard Certification
83
CE Standard Certification
83
KC Standard Certification
84
Requirement for Low Voltage Command Suitability
84
Standard Certification for XGT Panel
84
Selection of XGT Panel
84
Appendix 1 Troubleshooting
85
Type of Problems
85
Problems When Starting
86
Problems after the Monitor on
88
Display Problems of Figure and Object
90
Communication Problems
93
USB Removal of Memory Card
94
External Memory Recognition
95
Touch Recognition
95
Error Message During Execution of Programs
96
Appendix 2 Dimensions
111
Ixp2-08XX
111
Ixp2-10XX
112
Ixp2-12XX
113
Ixp2-15XX
114
Appendix 3 Warranty and Environmental Policy
115
Warranty Contents
115
Environmental Policy
115
