Lutron Electronics RadioRA Setup Guide

RadioRA® Setup Guide

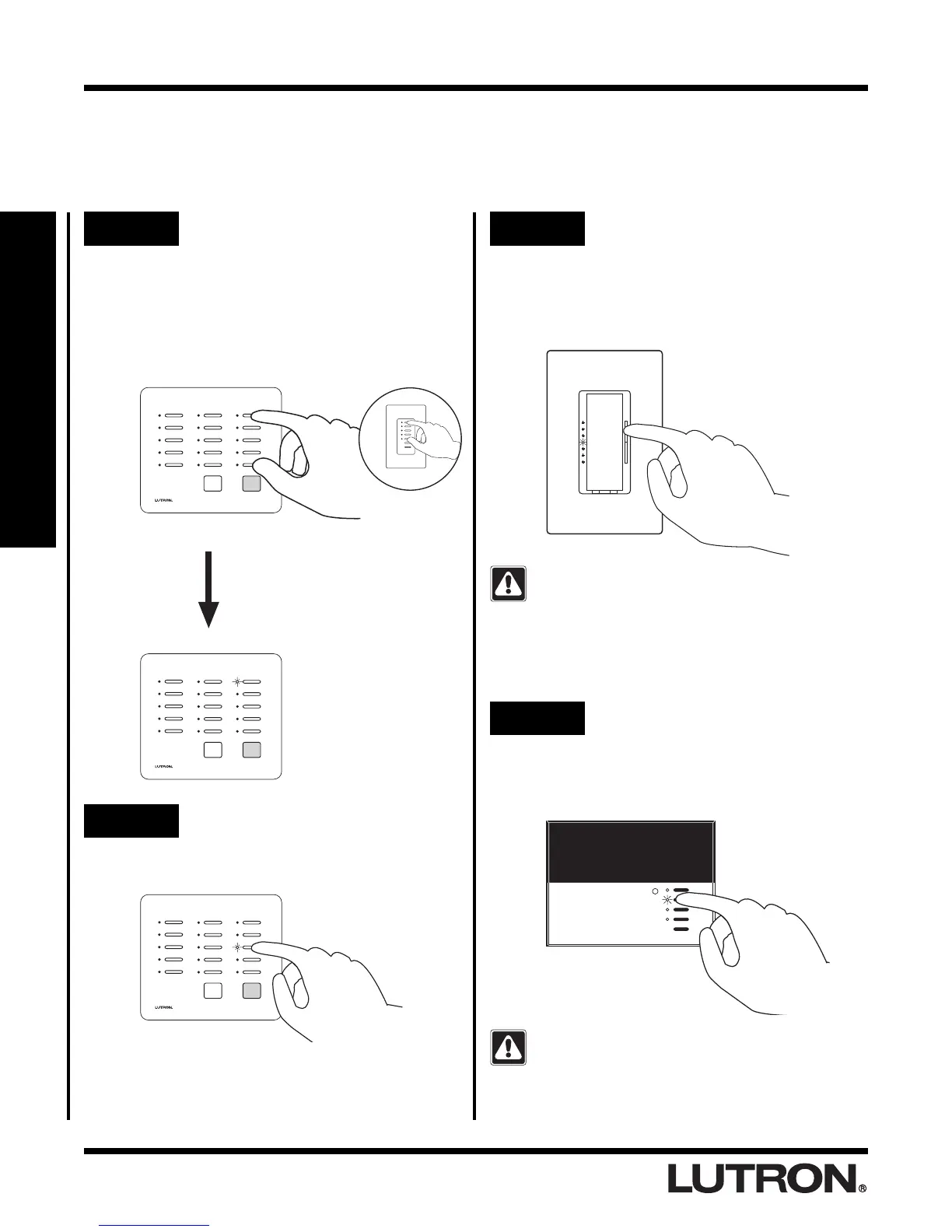

ROOM Button Programming
Setting Light Levels/GRAFIK Eye® Scene Selection for
ROOM Buttons
Note: Dimmers can be set to a variable light level. Switches must remain ON. GRAFIK Eye® Control Units can be
set to any scene.
Step 1 Begin setting light levels/
selecting GRAFIK Eye® scenes
Simultaneously press and hold the 1st and 5th
buttons in the right most column until the
upper right LED begins to blink (approximately
3 seconds).
Step 3 Set light levels for Dimmers
Use the dimming rocker to adjust the light
level of any Dimmer(s) assigned to that button.
This is the light level that the Dimmers will turn
ON to when the ROOM button is pressed ON.
1-11
Section 1 - Start-Up
Tabletop Master Wall Master
OR
Upper right LED blinks.
Step 2 Select a ROOM Button
Press and release the ROOM button that you
want to program. It's LEDs will begin to blink.
The GRAFIK Eye® Control Unit will turn ON to
the scene selected in this step when the ROOM
button is pressed ON. The last scene selected
on the GRAFIK Eye® Control Unit will be the
scene programmed to the ROOM button.
Step 4 Select a GRAFIK Eye® scene
At the GRAFIK Eye® Control Unit, select one
of the pre-programmed scenes (1 through 4)
by turning that scene ON.
LUTRON
While setting light levels
• Dimmers assigned to a Master Control
ROOM button cannot be turned OFF.
• Dimmers not assigned to a Master Control
ROOM button cannot be turned ON.
Dimmers, Switches, and GRAFIK Eye® Control Units
that have been assigned to that button will turn ON.
Devices not assigned to that button will turn OFF.
ALL ON
ALL OFF
