RadioRA® Setup Guide3-3
Adding Controls
Master Controls may be added to your system up to a maximum of 12. Dimmers, Switches, and GRAFIK Eye®
Control Units may be added up to a maximum of 32.
Adding Basic System Components

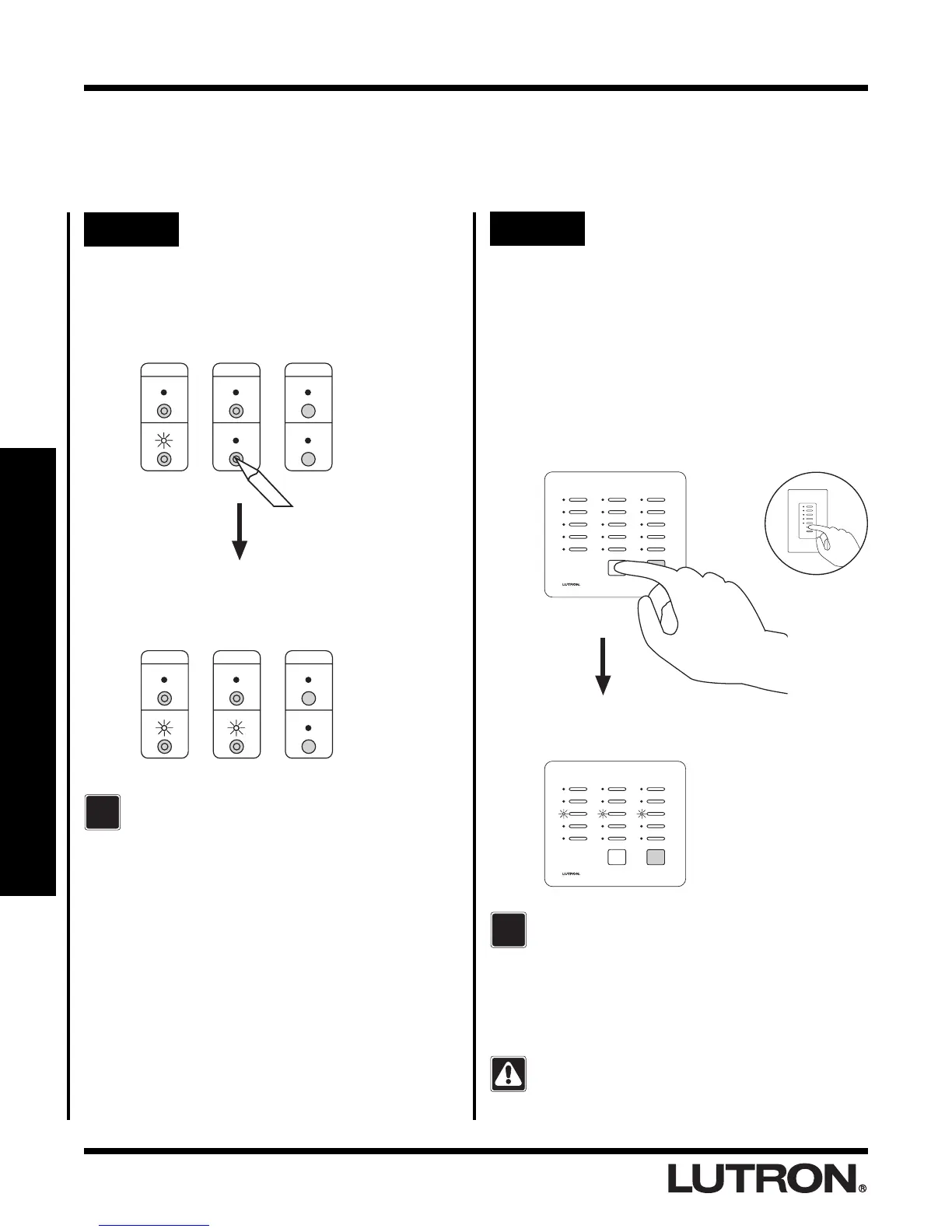

Step 1 Begin control activation
Press and hold the ACTIVATE CONTROLS
button on any Repeater until the green
ACTIVATE CONTROLS LED turns ON
(approximately 3 seconds).
Step 2 Activate Controls
To add a Master Control
Go to the new Master Control.
Note: All LEDs will be OFF prior to activation.
Section 3 - Expanding Your System
Middle row of LEDs will turn ON when the
Master Control has been activated.
ALL ON
ALL OFF
Wall Master
OR
Tabletop Master
Press any button.
• All LEDs will flutter, then
• Top and bottom row will flash alternately
MAIN
REPEATER
REPEATER
CONTROLS
ACTIVATE
BEEP
FLASH
VERIFY
AUXILIARY
The green ACTIVATE CONTROLS LED on
ALL Repeaters will turn ON.
MAIN
REPEATER
REPEATER
CONTROLS
ACTIVATE
BEEP
FLASH
VERIFY
AUXILIARY
?
If the Activate Controls LED fails to turn ON,
consult the Troubleshooting Guide, Section IV.
Activate one Master Control at a time. Wait for
the middle row of LEDs to turn ON before
activating any remaining Master Controls.
Repeat the above Step to activate any
remaining Master Controls
If a Master Control fails to respond as
described above, consult the Troubleshooting
Guide, Section VI or VII.
?
