RadioRA® Setup Guide
Activating Your System
Press and hold the ACTIVATE REPEATER
button until the green ACTIVATE REPEATER
LED begins to flash (approximately 3
seconds).
Important Notes:
1. If your system has only one Repeater, it must be
assigned as a Main Repeater.
2. If your system has more than one Repeater, only
one can be assigned as a Main Repeater.
3. If an LED turns orange while activating your
system, a system error occurred, consult the
Troubleshooting Guide.
Read each Step completely before
starting.
Step 1 Assign a Main Repeater
Any Repeater in the system can be the Main
Repeater.
Note: The green AUXILIARY LED will initially be ON
on all Repeaters.
MAIN
REPEATER
REPEATER
CONTROLS
ACTIVATE
BEEP
FLASH
VERIFY
AUXILIARY
Green MAIN LED is ON.
MAIN
REPEATER
REPEATER
CONTROLS
ACTIVATE
BEEP
FLASH
VERIFY
AUXILIARY

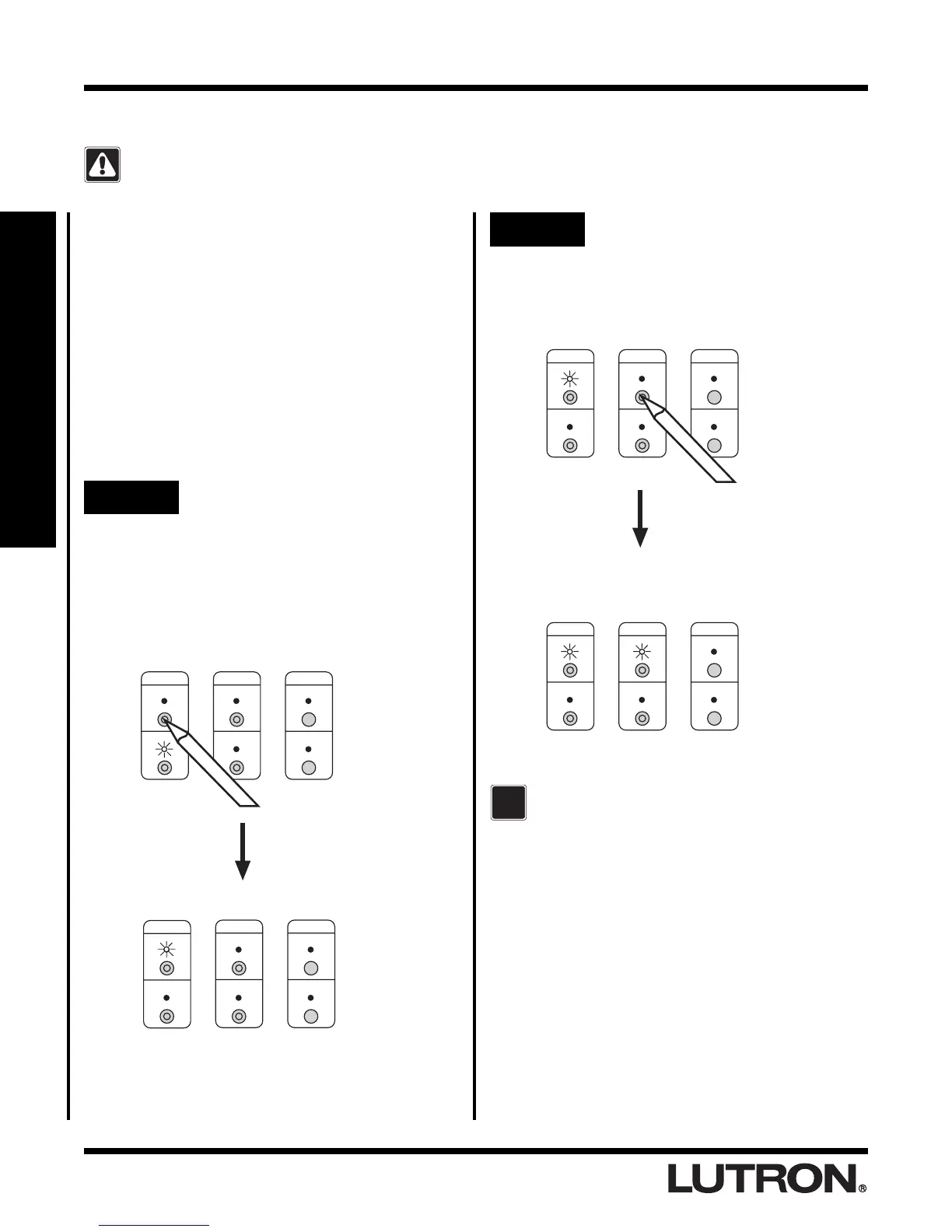

Press and hold the MAIN button until the
green MAIN LED turns ON (approximately 3
seconds).
1-1
Activating Repeaters
Repeaters must be in their permanent location and all controls must be operating (dimmers and switches
must be wired to a light) in order to be activated.
Section 1 - Start-Up
Green ACTIVATE REPEATER LED will stay
ON when the Repeater has been activated.
• If you have only one Repeater proceed
to Step 4.
?
MAIN
REPEATER
REPEATER
CONTROLS
ACTIVATE
BEEP
FLASH
VERIFY
AUXILIARY
MAIN
REPEATER
REPEATER
CONTROLS
ACTIVATE
BEEP
FLASH
VERIFY
AUXILIARY
If the ACTIVATE REPEATER LED turns
orange, consult the Troubleshooting Guide,
Section I or II.
Step 2 Activate the Main Repeater
