Lutron Electronics RadioRA Setup Guide

RadioRA® Setup Guide

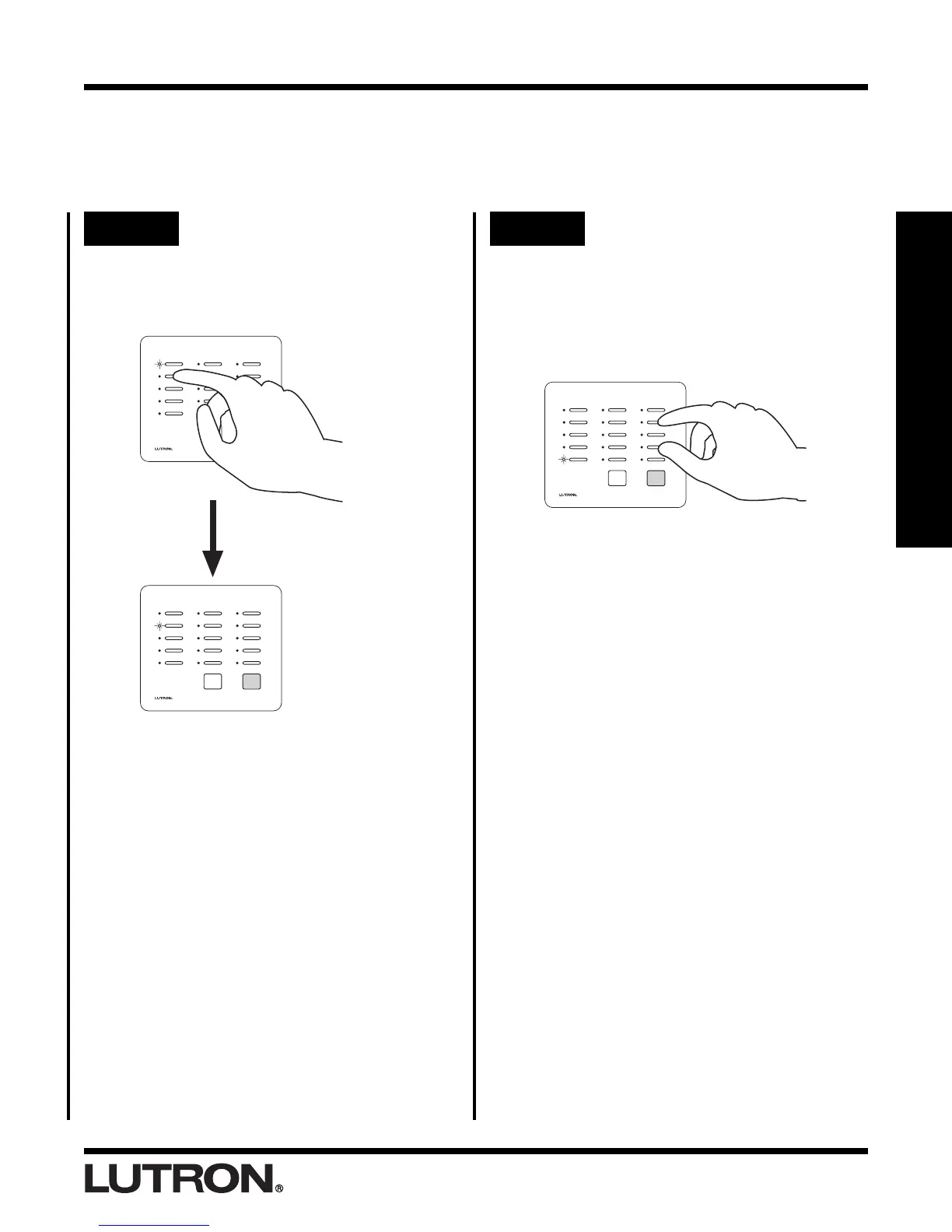

SCENE Button Programming
1-14
Step 4 Select next SCENE button Step 5 Complete assigning Dimmers,
Switches, and GRAFIK Eye®
Control Units
To assign Dimmers, Switches or GRAFIK
Eye® Control Units to another Master Control
SCENE button, press and release that button.
Its LED will begin to flash.
ALL OFF
ALL ON
ALL ON ALL OFF
Simultaneously press and hold the 2nd and 4th
buttons in the right most column until all the
LEDs begin to flutter (approximately 3
seconds).
Perform Step 3 for this newly selected SCENE
button.
• Proceed to Step 5 when all SCENE
buttons on this Master Control have
been programmed.
Section 1 - Start-Up
• Repeat Steps 1 through 5 to assign
Dimmers, Switches or GRAFIK Eye®
Control Units to SCENE buttons on any
additional Master Controls.
• Pressing a newly programmed SCENE
button at this point will turn assigned:
Dimmers on to 50% light, Switches ON,
and GRAFIK Eye® Control Units ON to
scene 1.
• Proceed to Setting Light Levels/GRAFIK
Eye® Scene Selection for SCENE Buttons
on page 1-15.
