Lutron Electronics RadioRA Setup Guide

RadioRA® Setup Guide
Step 3 Activate a Dimmer, Switch or
GRAFIK Eye
® Control Unit
Step 4 Complete Control activation
Activating Your System
1-4
Section 1 - Start-Up

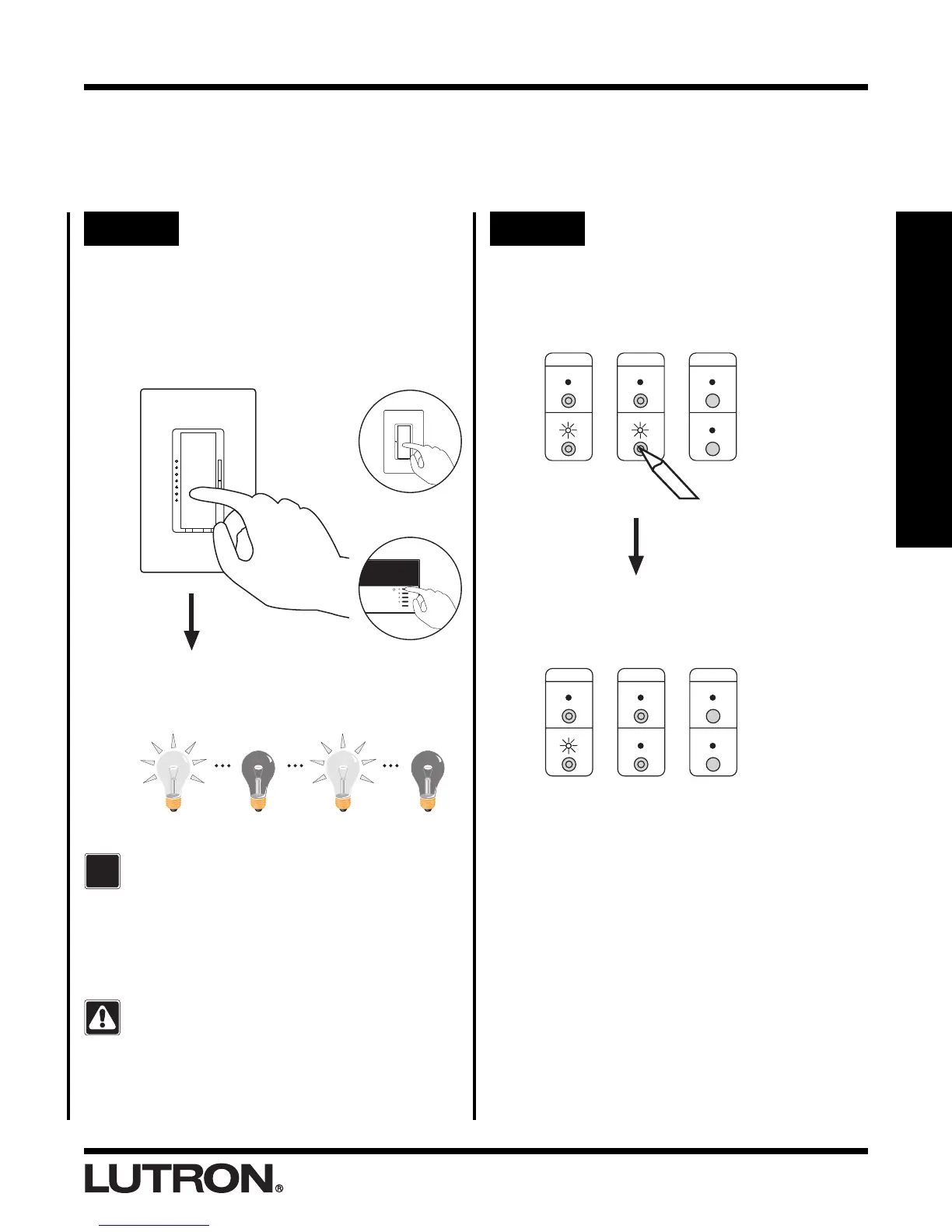

Press and hold the ACTIVATE CONTROLS
button on any Repeater until the green
ACTIVATE CONTROLS LED turns OFF
(approximately 3 seconds).
Go to any Dimmer, Switch or GRAFIK Eye
®
Control Unit. Turn the Dimmer or Switch ON or
OFF by pressing the tapswitch. On a GRAFIK
Eye® Control Unit, change the selected scene
by pressing a scene button.
The light(s) that the Dimmer, Switch or
GRAFIK Eye® Control Unit operate will turn
ON and OFF a few times when it has been
activated.
Dimmer Switch
• Proceed to Step 4 when all Dimmers,
Switches or GRAFIK Eye® Control Units
have been activated.
Activate one Dimmer, Switch or GRAFIK Eye®
Control Unit at a time. Wait for the control to
flash its light(s) before activating any remaining
controls.
• Repeat Step 3 to activate any remaining
Dimmers, Switches or GRAFIK Eye®
Control Units.
?
If a Dimmer, Switch or GRAFIK Eye® Control
Unit fails to respond as described above,
consult the Troubleshooting Guide, Section V.
• Continued on next page.
MAIN
REPEATER
REPEATER
CONTROLS
ACTIVATE
BEEP
FLASH
VERIFY
AUXILIARY
The green ACTIVATE CONTROLS LED on
ALL Repeaters will turn OFF. The MAIN or
AUXILIARY LED will remain on.
MAIN
REPEATER
REPEATER
CONTROLS
ACTIVATE
BEEP
FLASH
VERIFY
AUXILIARY
TRON
GRAFIK Eye®
Control Unit
OR
