Step 5 Verify that all Controls have
been activated

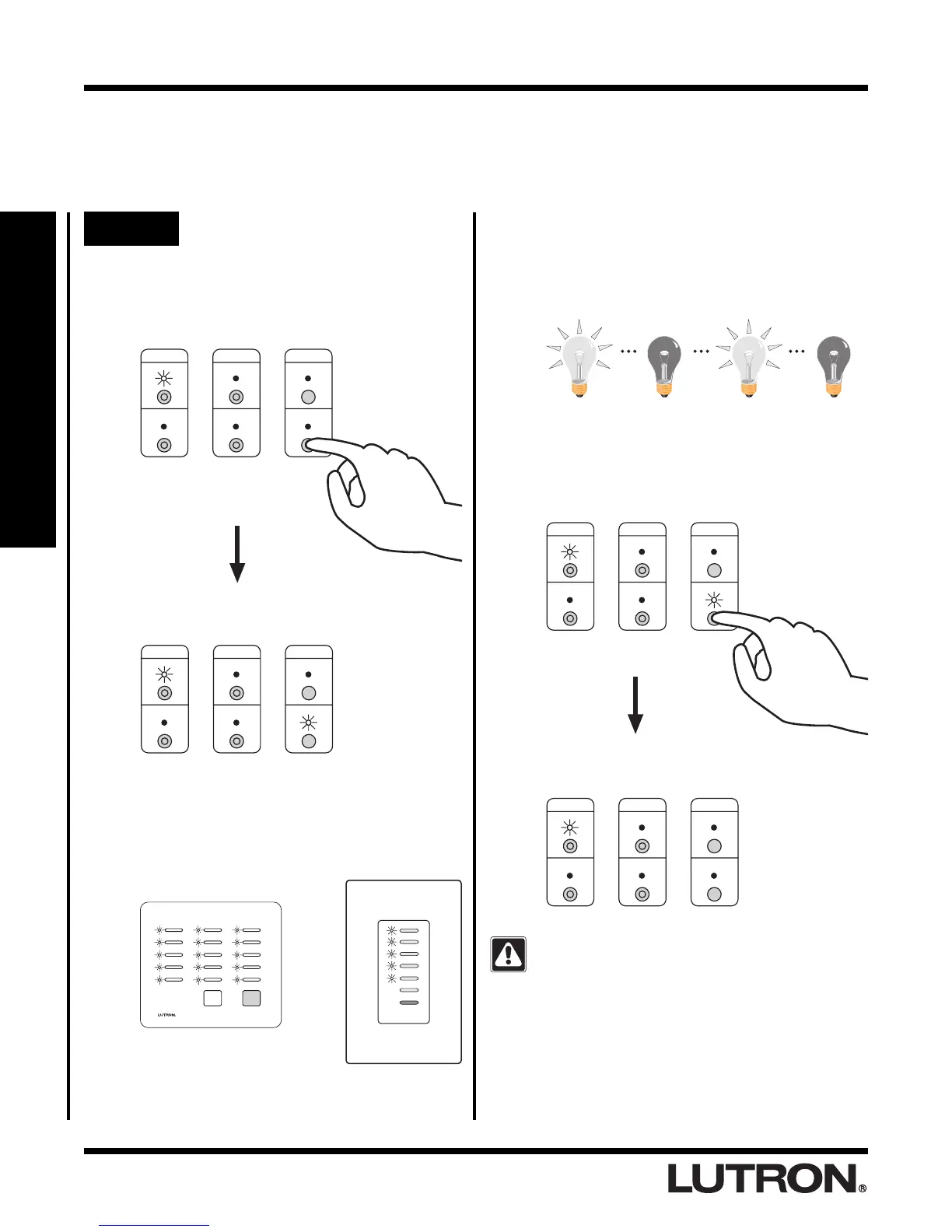

Press and hold the FLASH button on any
Repeater until the green FLASH LED turns
ON (approximately 3 seconds).
MAIN
REPEATER
REPEATER
CONTROLS
ACTIVATE
BEEP
FLASH
VERIFY
AUXILIARY
MAIN
REPEATER
REPEATER
CONTROLS
ACTIVATE
BEEP
FLASH
VERIFY
AUXILIARY
Green FLASH LED on all Repeaters will turn
ON.
Master Controls, if activated, will flash all
their LEDs. Make note of any Master Controls
which are not activated.
Dimmers, Switches, and GRAFIK Eye®
Control Units, if activated, will flash the
light(s) they control. Make note of any
Dimmers, Switches or GRAFIK Eye® Control
Units which are not activated.
After verifying that all Master Controls,
Dimmers, Switches, and GRAFIK Eye® Control
Units are activated, press and hold the FLASH
button on any Repeater until the green FLASH
LED turns OFF (approximately 3 seconds).
Activating Your System
1-5
Section 1 - Start-Up
Green FLASH LED on all Repeaters will turn
OFF.
If any Master Control, Dimmer, Switch or
GRAFIK Eye® Control Unit has not been
activated, repeat Steps 1 through 5, starting on
page 1-3.
• Master Controls, Dimmers, Switches,
and GRAFIK Eye® Control Units are now
activated.
• Proceed to Programming Preparations
on page 1-6.
Tabletop Master
Wall Master
MAIN
REPEATER
REPEATER
CONTROLS
ACTIVATE
BEEP
FLASH
VERIFY
AUXILIARY
MAIN
REPEATER
REPEATER
CONTROLS
ACTIVATE
BEEP
FLASH
VERIFY
AUXILIARY
