LXNAV S100 - Spin Control; Selection Control; Checkbox and Checkbox List

Rev #37 Version 8.0 April 2021
Page 22 of 121

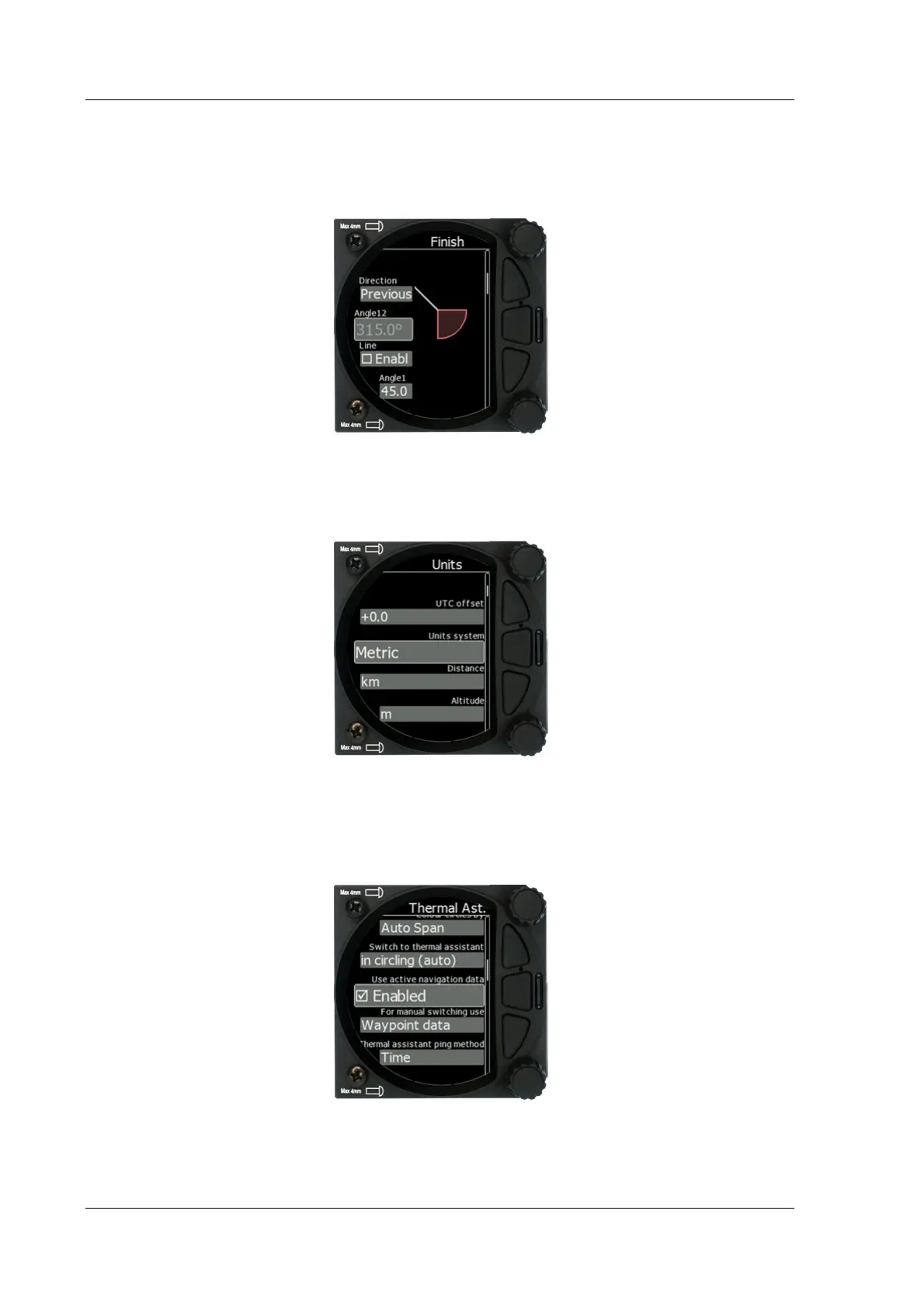

4.5.2 “Spin” Control
“Spin” controls are designed for numeric parameters. Rotate the knob to increase/decrease
the selected value. To increase a value in larger steps, spin the lower rotary knob faster.
4.5.3 Selection Control
Selection boxes, also known as combo boxes, are used to select a value from a list of
predefined values. Use the lower rotary knob to scroll through the list.
4.5.4 Checkbox and Checkbox List
A checkbox enables or disables a parameter. Press the lower rotary knob to toggle the
value. If an option is enabled a check mark will be displayed, otherwise an empty rectangle
will be displayed.
