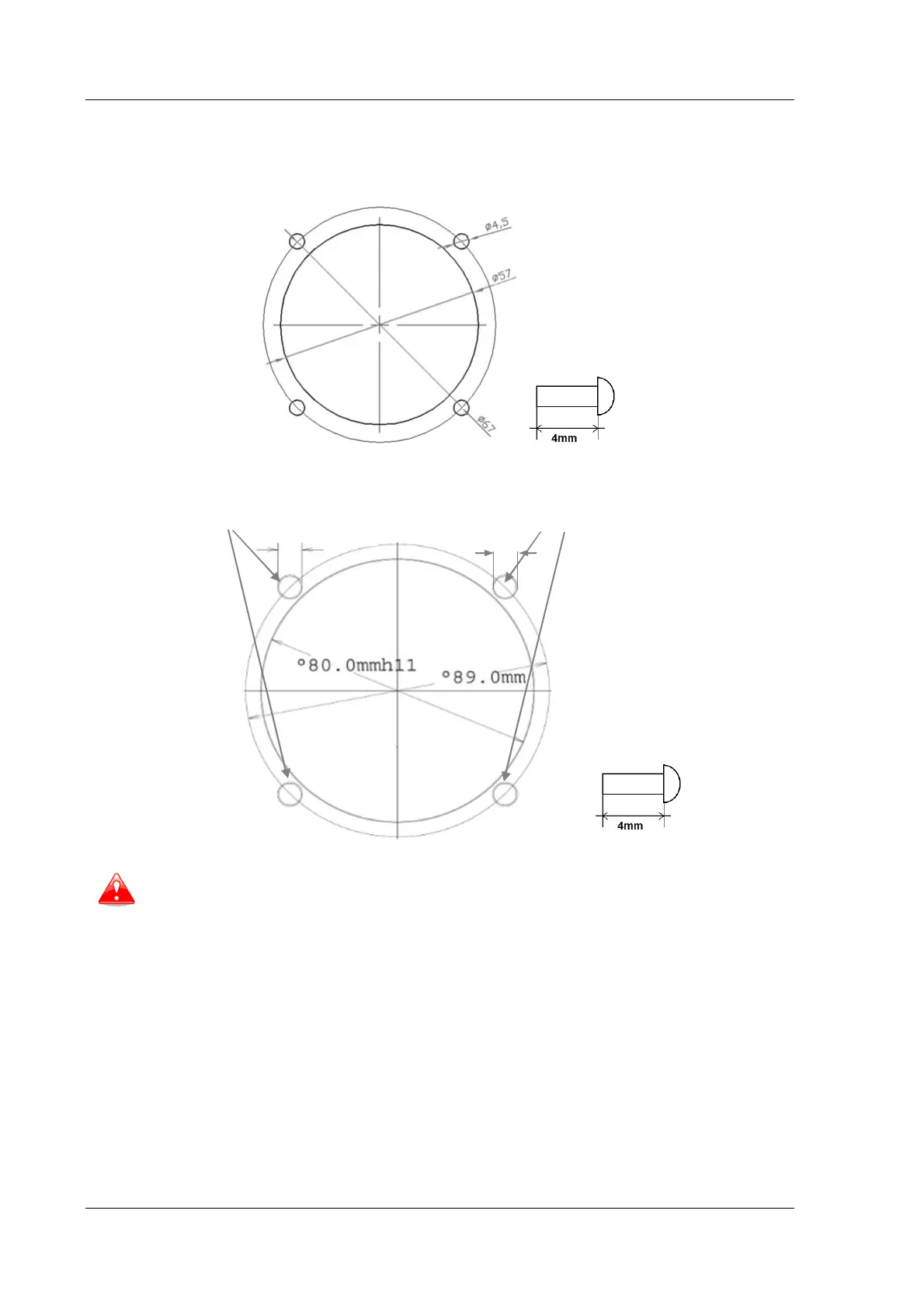

9.3 Cutouts
9.3.1 Cut-Out for S8 and S10
9.3.2 Cut-Out for S80 and S100
The length of the screw is limited to max 4mm!
4,5mm
6,3mm
