Lynx NGT-9000 User Manual

Lynx NGT-9000
Installation Manual
Splash Screen System Status (Passed) and Versions
System Status (Failed) System Status (Degraded)

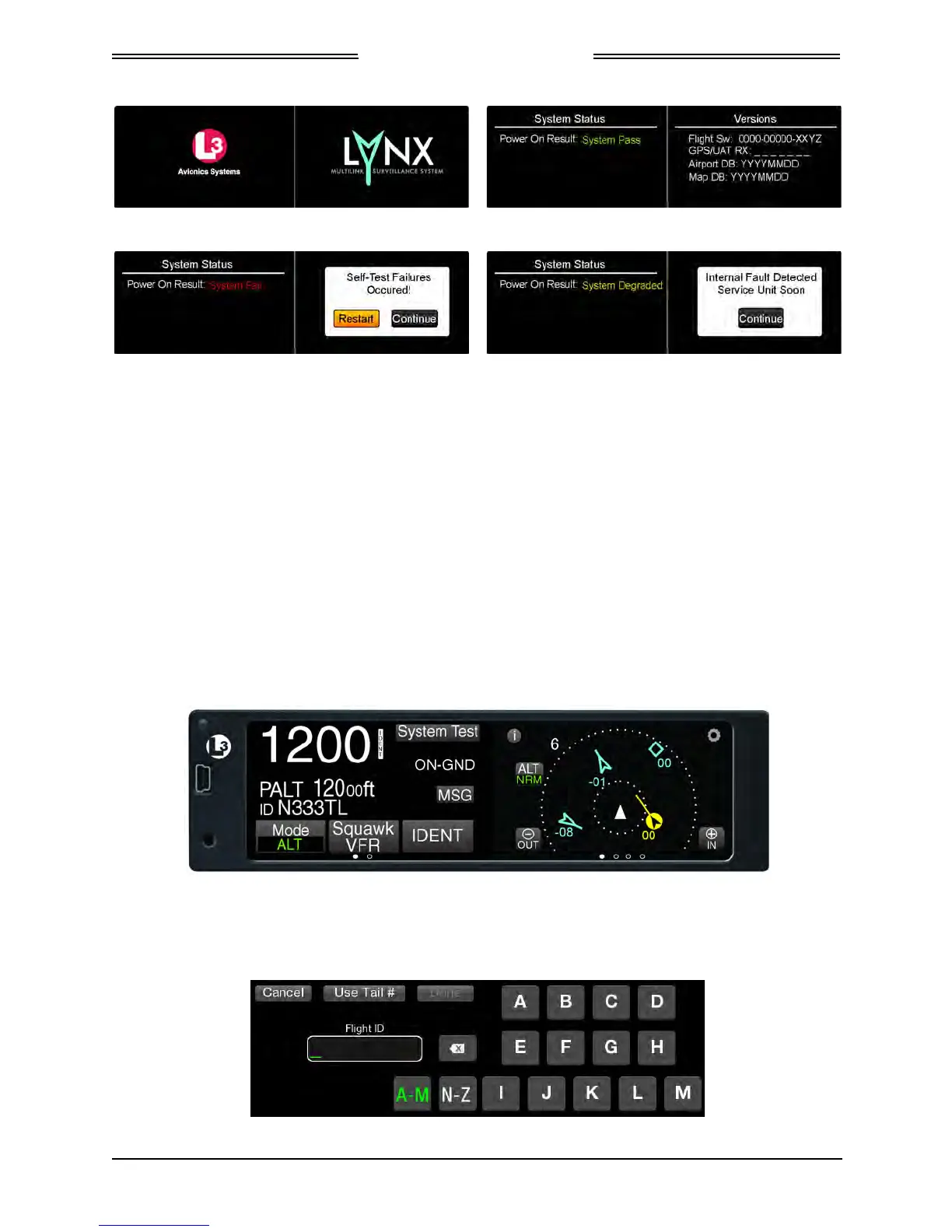

Figure 3-19: Examples of Start-up Screens
3. The System Status is shown on the left side in less than 20 seconds
• If System Status is “System Pass”, then the Versions screen is shown on the right of the display.
The version screen identifies software and database information currently loaded on the unit.
Verify that the information is correct for this installation.
• If System Status is “System Fail”, then the message “Self-Test Failures Occurred” is shown on
the right side of the display. The option to restart the unit or to continue start up in a degraded
mode is shown on the right side of the display. Press the Restart or Continue button to proceed.
• If System Status is “System Degraded”, then the message “Internal Fault Detected Service Unit
Soon” is shown on the right side of the display. Press the Continue button to proceed.
4. When normal operation begins the left screen shows the Transponder Application screen and the
right screen shows the Traffic screen. See Figure 3-20.
Figure 3-20: Example of Normal Operation
• If configured the Flight ID Screen is shown before the normal operation screen is shown See
Figure 3-21.
Figure 3-21: Example of Flight ID Input Screen
Page 3-24 Installation Checkout 0040-17001-01
January 15, 2015 Revision A
