Lynx NGT-9000
Installation Manual
Section
3
Installation Checkout
3.1 INTRODUCTION
This section contains instructions for the configuration and checkout of the Lynx
NGT-9000s. Refer to the
fault isolation information provided in the maintenance manual for help in correcting installation issues
found during checkout. Refer to the General Information section - Equipment Required Not Supplied for
details on equipment used in this section.
A Log Sheet is available in Appendix C to record the Configuration and Checkout information. It should
be filled out prior to performing this procedure.
NOTE
These procedures assume that the mounting, wiring, power, and antenna
requirements have been checked out according to the instructions given
in the installation section.
CAUTIONS
1. Operating the unit with the GPS antenna connected and the L-
Band antenna NOT connected may damage the unit.
2. All antenna connections must be connected prior to operation.
3.2 BASIC OPERATION
The unit uses a touch screen display to select, input, and adjust information on the screen using gestures
(actions); such as tap, momentary press, drag, or swipe. See Figure 3-1.

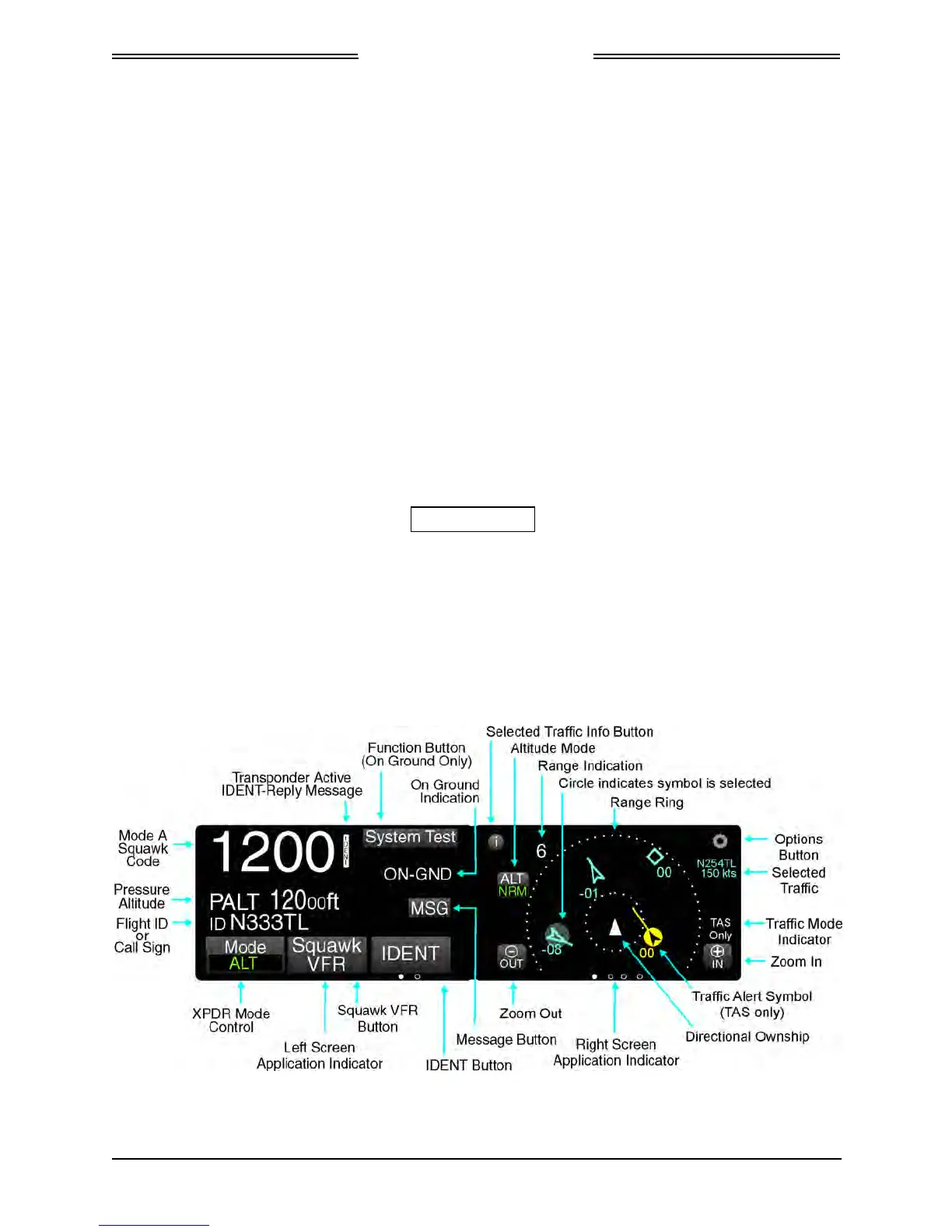

Figure 3-1: Transponder/Traffic Screens
0040-17001-01 Installation Checkout Page 3-1
Revision A January 15, 2015
