Lynx NGT-9000s
Installation Manual
Section
1
General Information
1.1 INTRODUCTION
This section includes descriptions, specifications, TSO information, equipment required but not supplied,
and installation approval and limitations for the Lynx
®
MultLink Surveillance System Lynx NGT-9000s
family (Release 1) See Figure 1-1. Available models of the Lynx NGT-9000s are detailed in Table 1-1.
Included at the end of this section is a list of compatible equipment and equipment required but not
supplied with the system.
Table 1-1: System Components
COMPONENT MODELS H/W PART NO. S/W PART NO.
MultiLink Surveillance System
NGT-9000+
(1)
NGT-9000D
(1)
9029000-20000 9020010-001
(2)
Detachable Configuration Module DCM 9230-17003-01 - -
GPS Antenna See Table 1-17 - - - -
L-Band Antenna See Table 1-18 - - - -
Directional Antenna (optional) See Table 1-19 - - - -
Notes:
(1) The
NGT-9000D and NGT-9000+ require an unlock code that is set up during installation. See paragraph1.3.3.
(2) Details on software releases are located in paragraph 1.9.
(3) The “+” at the end of the model number indicates TAS functionality. The “D” at the end of the model number
indicates Diversity functionality.

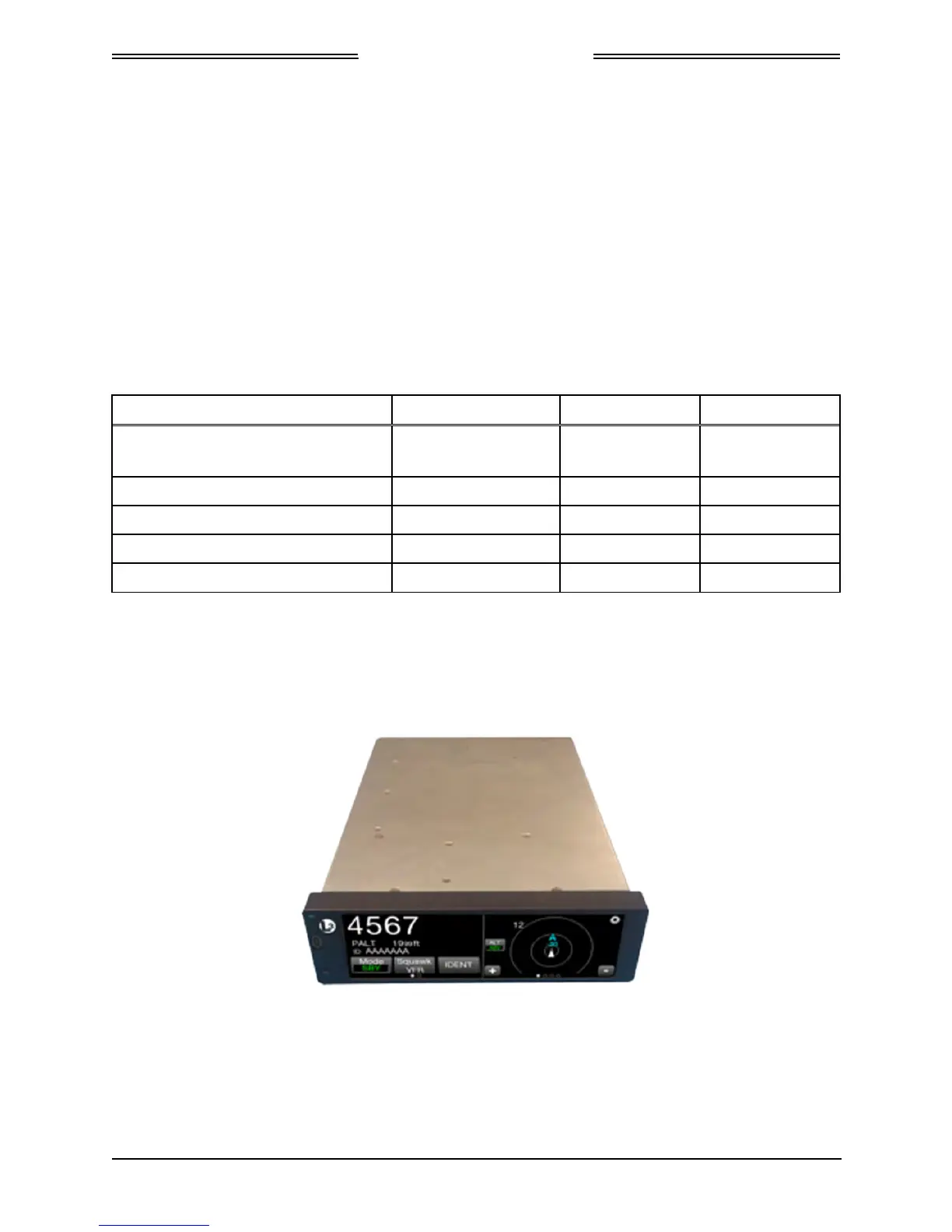

Figure 1-1: Lynx NGT-9000s
0040-17001-01 General Information Page 1-1
Revision A January 15, 2015
