Lynx NGT-9000s
Installation Manual

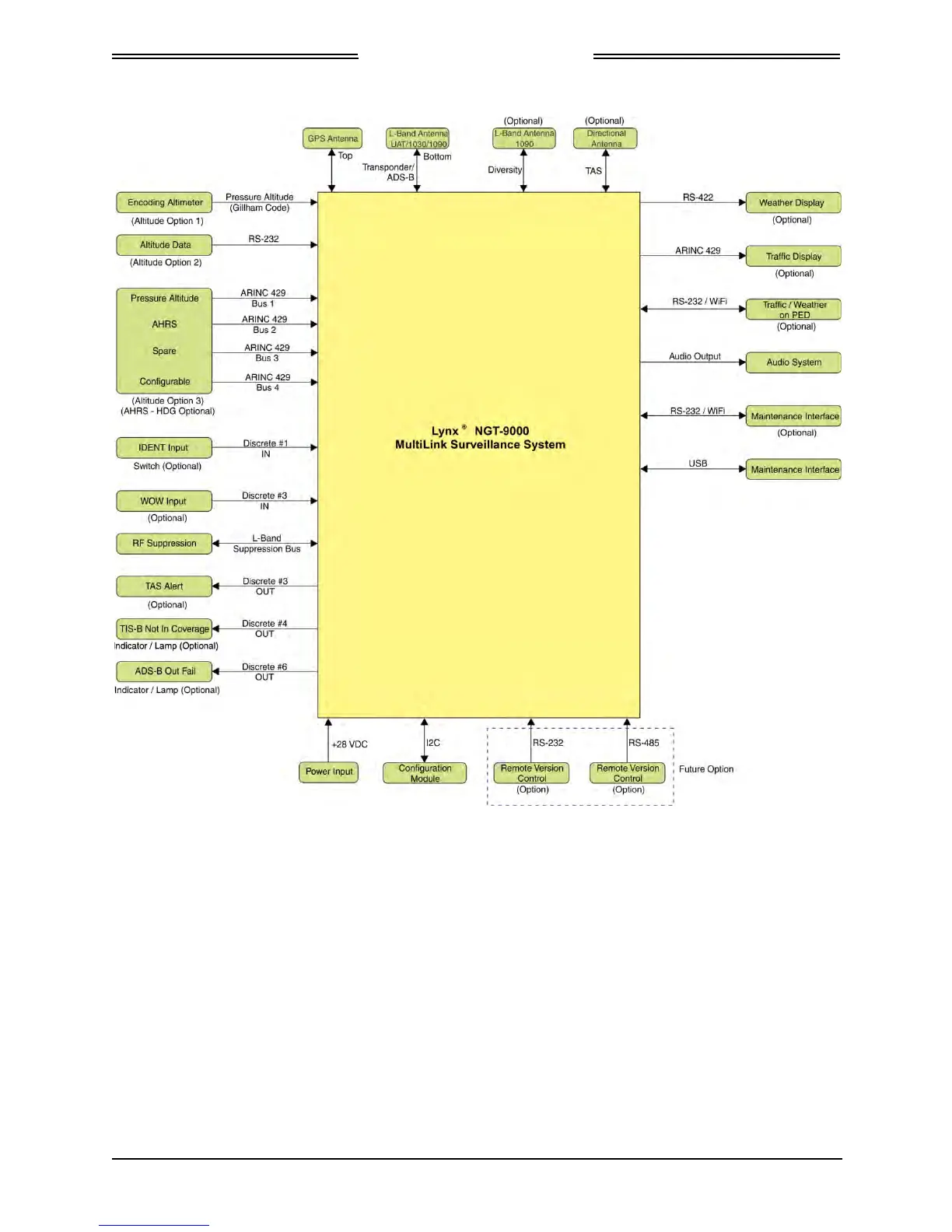

Figure 1-3: System Block Diagram
1.4.1 ADS-B Out Fail
The ADS-B Out Fail is a discrete output that provides an indication of when there is a loss of ADS-B Out.
The discrete output is a ground/open type and is able to sink 250mA.
1.4.2 AHRS Input
An optional ARINC 429 input is provided to interface to an AHRS (heading) system in order to provide
data for Enhanced Surveillance (EHS) and ADS-B data.
1.4.3 Altitude Encoder Input
Altitude input is required on either and an RS-232 input port, 11 Wire Gillham Input Port or ARINC 429
Input Port.
Page 1-8 General Information 0040-17001-01
January 15, 2015 Revision A
