A.2.5 RS-232 Interface
The RS-232 is a serial interface used to receive and transmit altitude data, interface with Control Panel,
and interface with Wi-Fi Device. The altitude data and Wi-Fi are optional depending on the installation.
A.2.5.1 RS-232 WiFi Output
The RS-232 WiFi interface is optional. An optional equipment interface wiring diagram is shown in
Figure A-1. When configured the NGT-9000 outputs the following information to a WiFi connection:
• FIS-B Weather Data
• ADS-B Traffic Data
• Ownship Data
A.2.5.1.1 Compatible PED Interconnect Layout

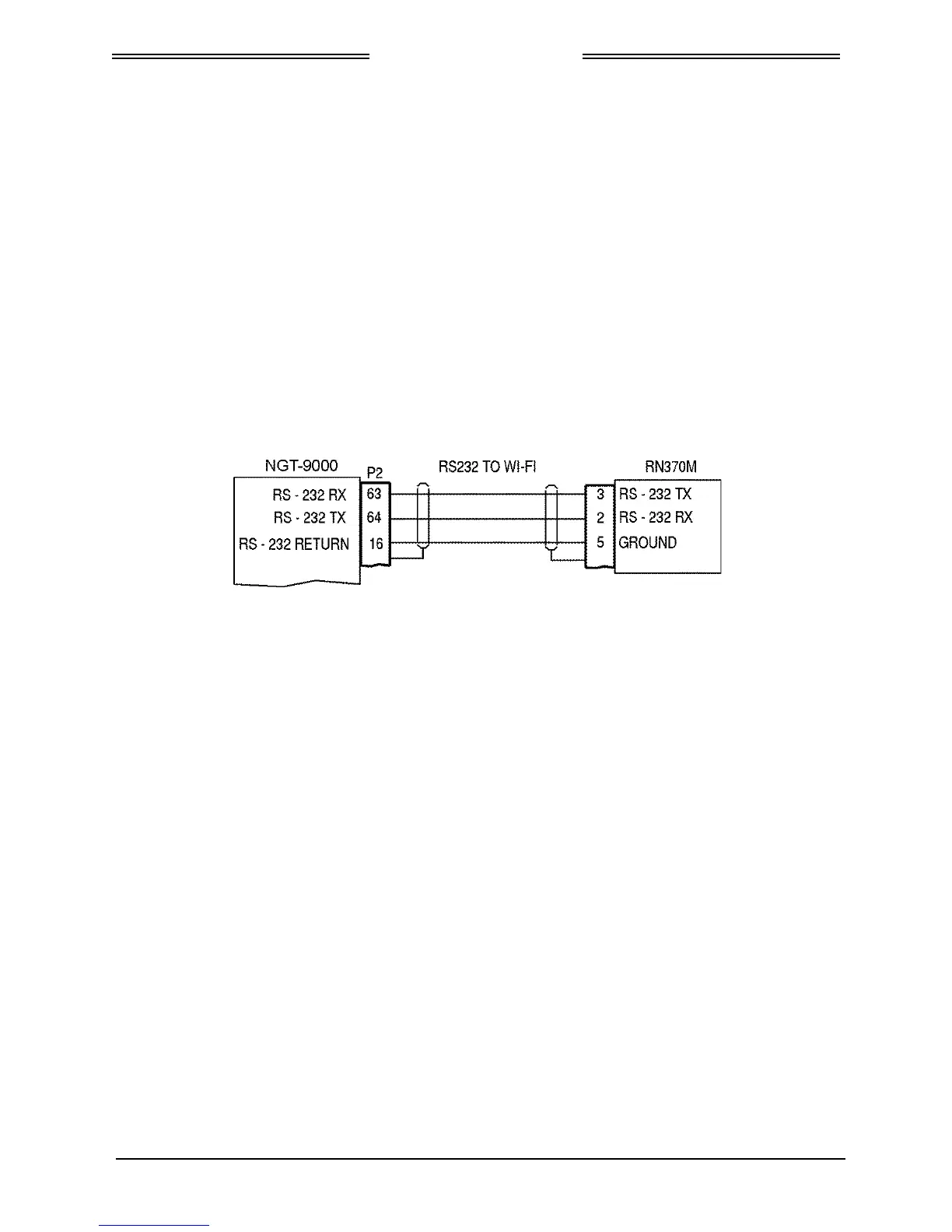

Figure A-1 provides interconnect information for the RN370M PED Accessory.
Figure A-1: RN370M Interconnect Option for RS-232 to WiFi Converter
Page A-2 Appendix A 0040-17001-01
January 15, 2015 Revision A
