Lynx NGT-9000
Installation Manual
3.5 CONFIGURE WIFI ACCESSORY
This procedure requires a Maintenance PC (MPC), Lynx Maintenance Application Tool (Lynx MAT),
and a standard Null Modem cable (DB9 F/F).
These procedures assume the following:
• The Lynx MAT is active on the MPC.
1. Connect WiFi Accessory to the MPC via the Com Port that the dongle is connected to using a standard
Null Modem cable.
2. From the Lynx MAT menu select ToolsZConfigure WiFi Dongle. See Figure 3-7.

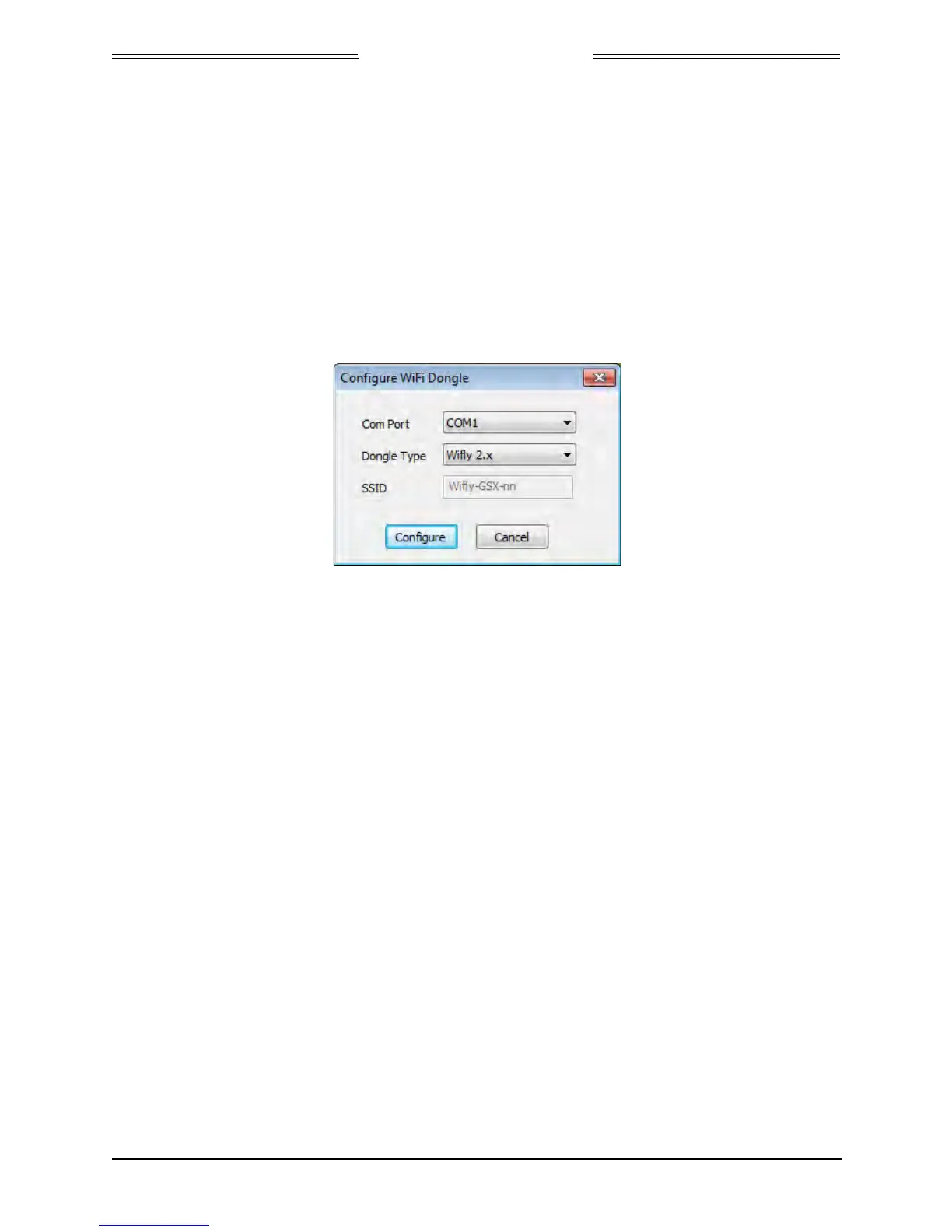

Figure 3-7: Lynx MAT – WiFi Accessory
3. If using model RN370 verify that dip switches 1 -4 are in the off position (i.e. towards the connector
side of the dongle).
4. Select the Com Port (typically COM1).
5. Select the Dongle (accessory) Type.
6. Enter the SSID (4.x only) if the entry field is not grayed out and accessible. Otherwise the SSID is
already loaded.
7. Click “Configure” to begin. A message is shown to indicate configuration complete or if
configuration could not be completed.
8. If the configuration could not be completed, then check the following:
• Cable connection
• Com port connection
• Accessory type
• Correct SSID
• Check batteries for the WiFi Accessory
9. After the configuration is complete remove the serial cable and cycle power to the dongle.
10. Connect the accessory to the aircraft wiring harness connecting to the Lynx NGT-9000s.
11. Verify that the SSID name can be seen with a WI-FI device such as laptop or PED.
Note - The SSID may show the default SSID being used, which is typically Wifly-Serial-nn, where
nn is variable per dongle.
0040-17001-01 Installation Checkout Page 3-7
Revision A January 15, 2015
