Lynx NGT-9000 User Manual

Lynx NGT-9000s
Installation Manual
4. Secure Rear Plate (item 2) to Panel Rack P/N 9010-17022-01 (item 1) using 4 Screws P/N NAS514-
P-440-5 (item 4).
5. Place the assembled Panel Rack P/N 9010-17022-01 (item 1) in the location selected in paragraph 2.3.1.
6. Secure Panel Rack using 6 Screws P/N MS35206-230 (item 12).

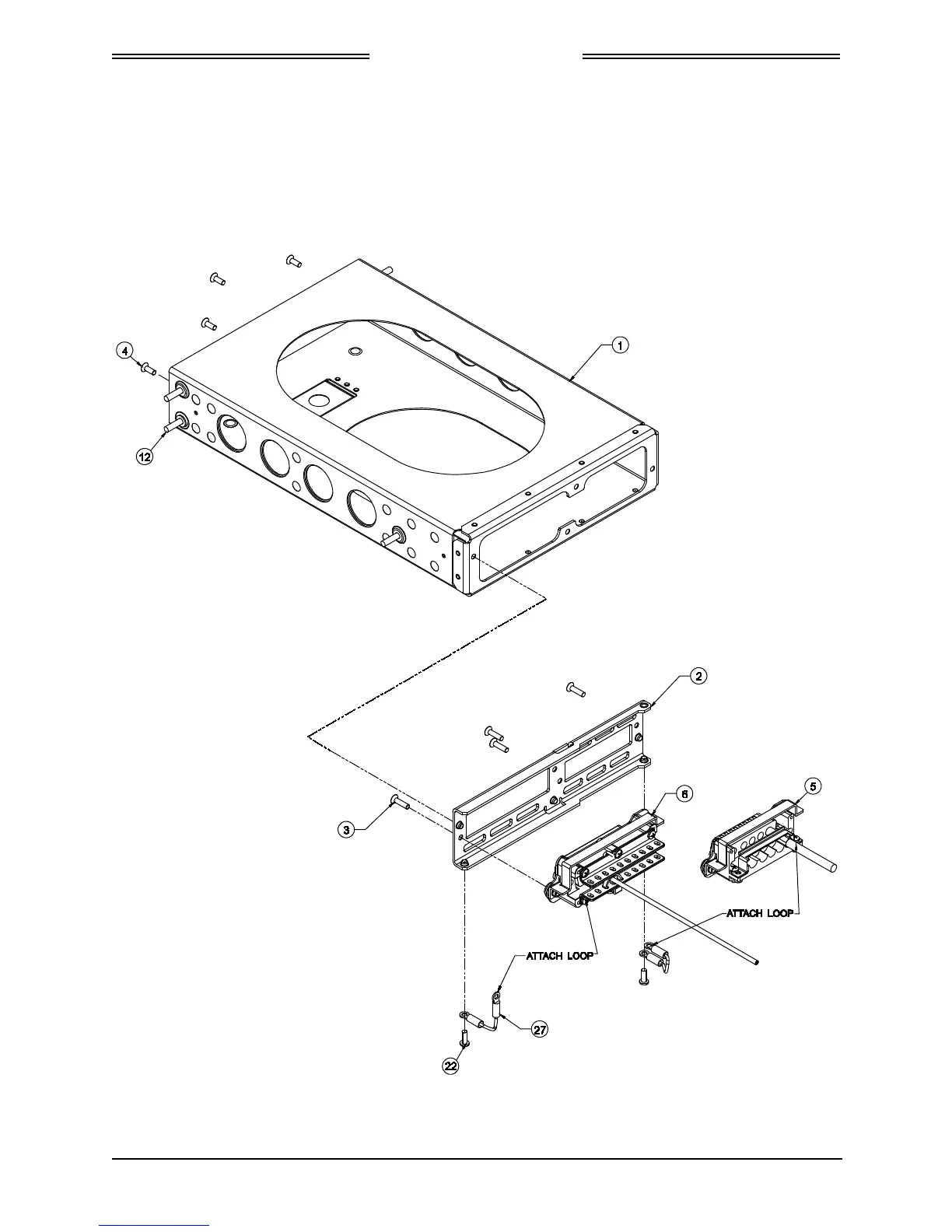

Figure 2-12: Panel Assembly
Page 2-20 Installation 0040-17001-01
January 15, 2015 Revision A
