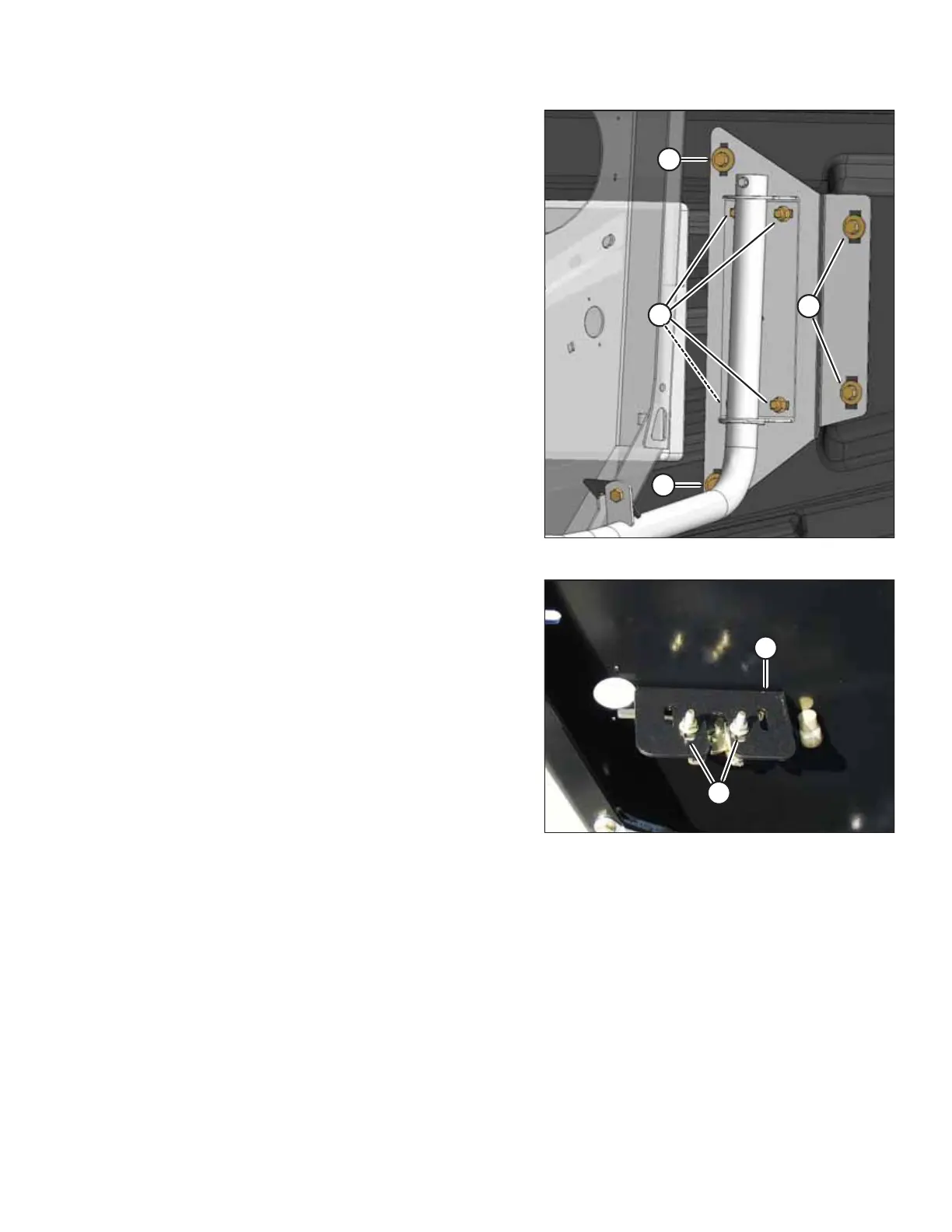

Figure 4.14: Endshield Support
7. Tighten bolts (A).
8. Loosen bolts (B).
ϭϬϯϵϵϱϲ
A
B
Figure 4.15: Latch
9. Loosen bolts (A) on latch (B), and adjust the latch as
required to achieve a snug fit between the aft end of the
endshield and the header frame.
10. Tighten all bolts.
11. Close the endshield.
