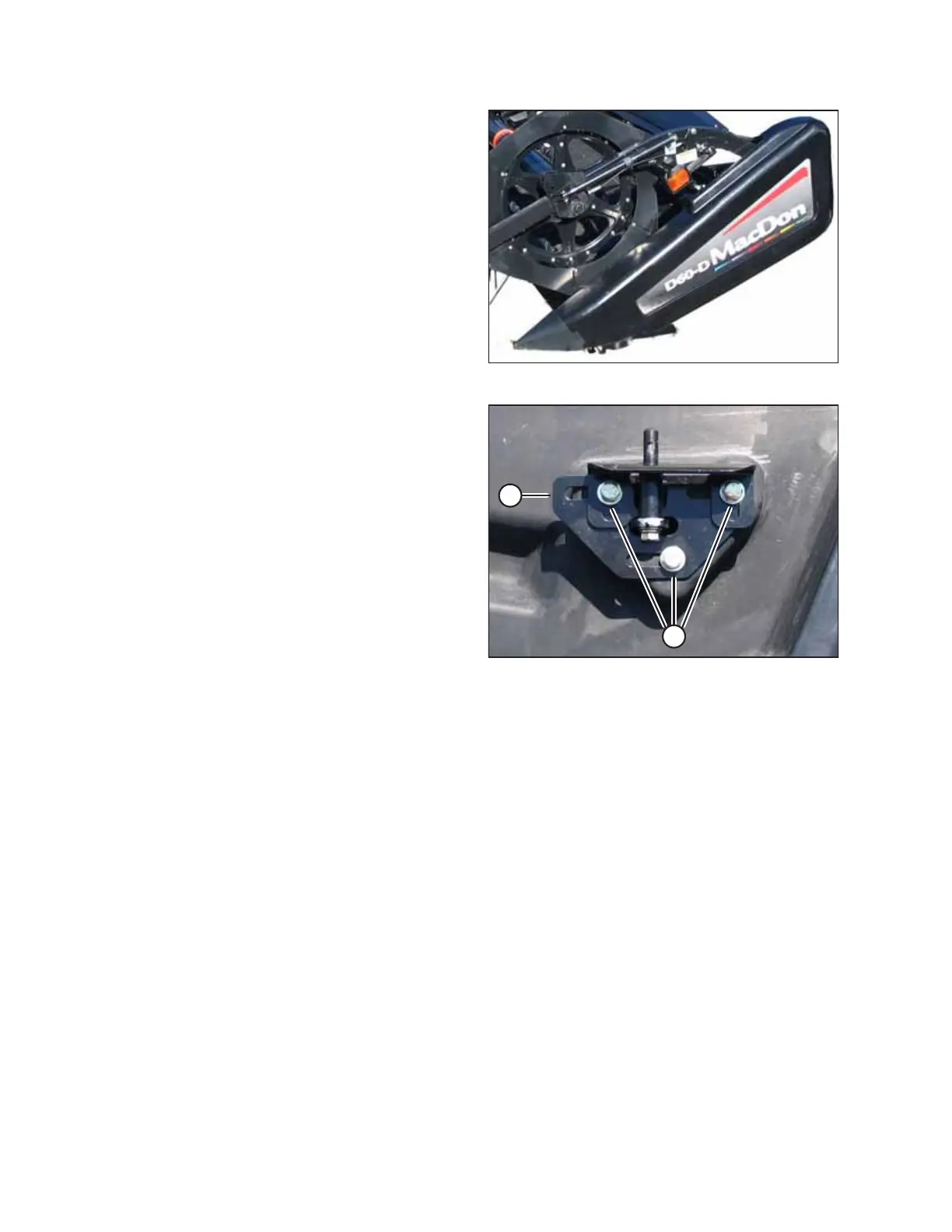

Figure 4.12: Left Endshield
5. Close the endshield and adjust its position to achieve the
desired gap between the front end of the endshield and the
header frame.
Figure 4.13: Latch Assembly
6. Re-open the endshield and tighten bolts (A).
