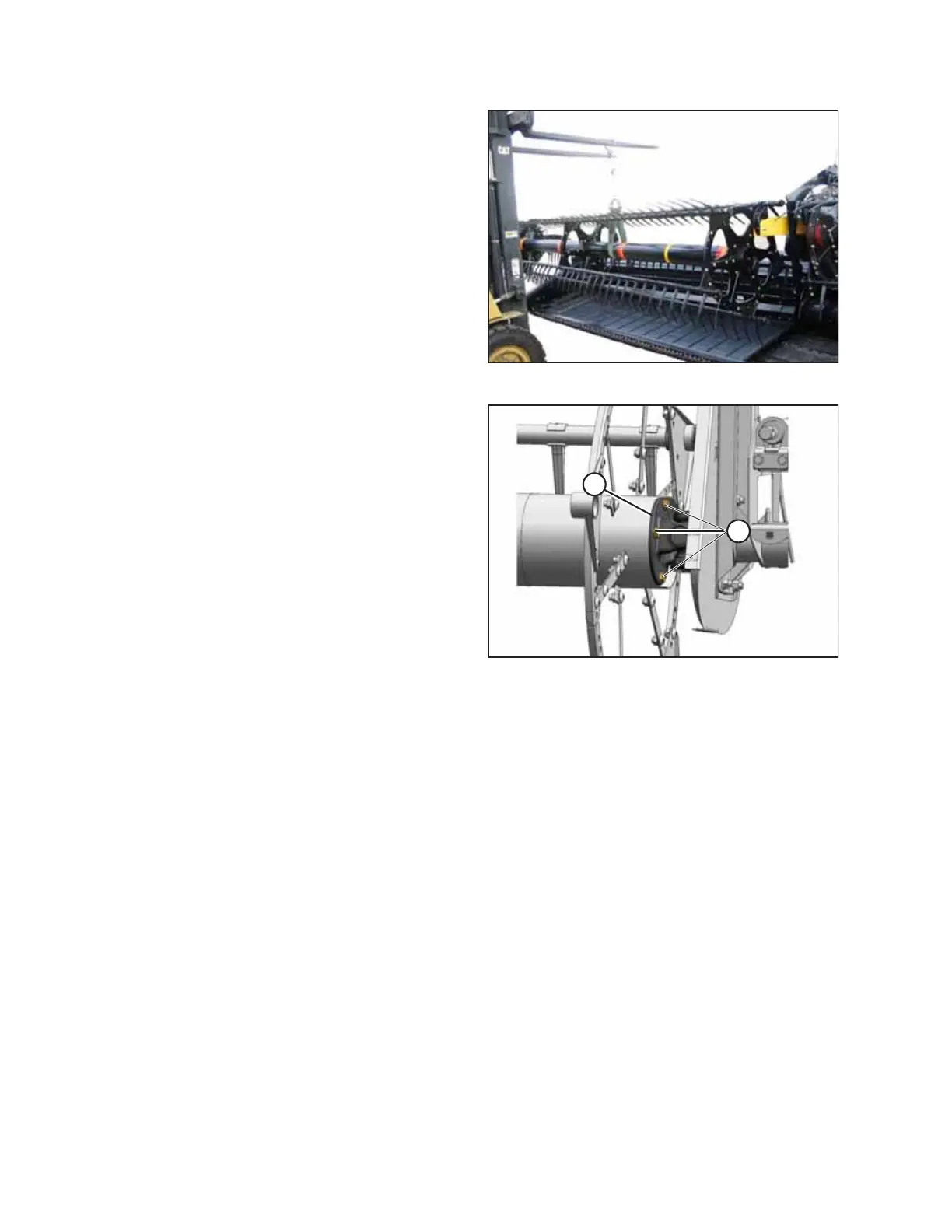

Figure 4.180: Supporting Reel
4. Support the inboard end of the right reel with a front end
loader and nylon slings (or equivalent setup).
NOTE:
To avoid damaging or denting center tube, support reel as
close as possible to the cam end disc.
Figure 4.181: U-Joint
5. Remove four bolts (A) attaching the reel tube to U-joint (B).
MAINTENANCE AND SERVICING
