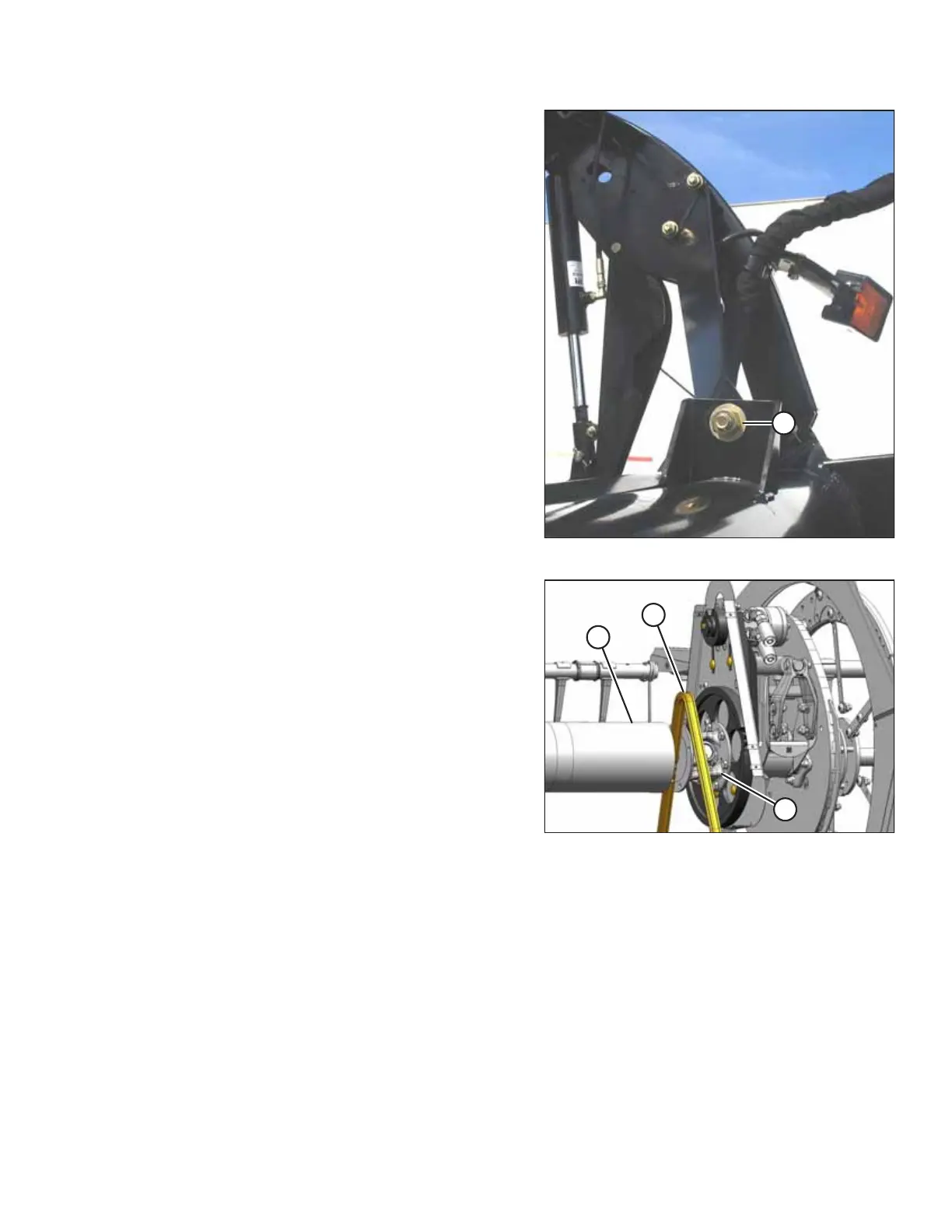

Figure 4.182: Right Reel Arm Brace
6. Loosen the right reel arm brace by loosening bolt (A) on the
backtube.
1001613
C
B
A
Figure 4.183: Replacing Chain
7. Move the right reel sideways to separate the reel tube (A)
and U-joint (B).
8. Remove chain (C).
9. Route new chain (C) over U-joint (B) and position it on the
sprockets.
