169441 212 Revision D

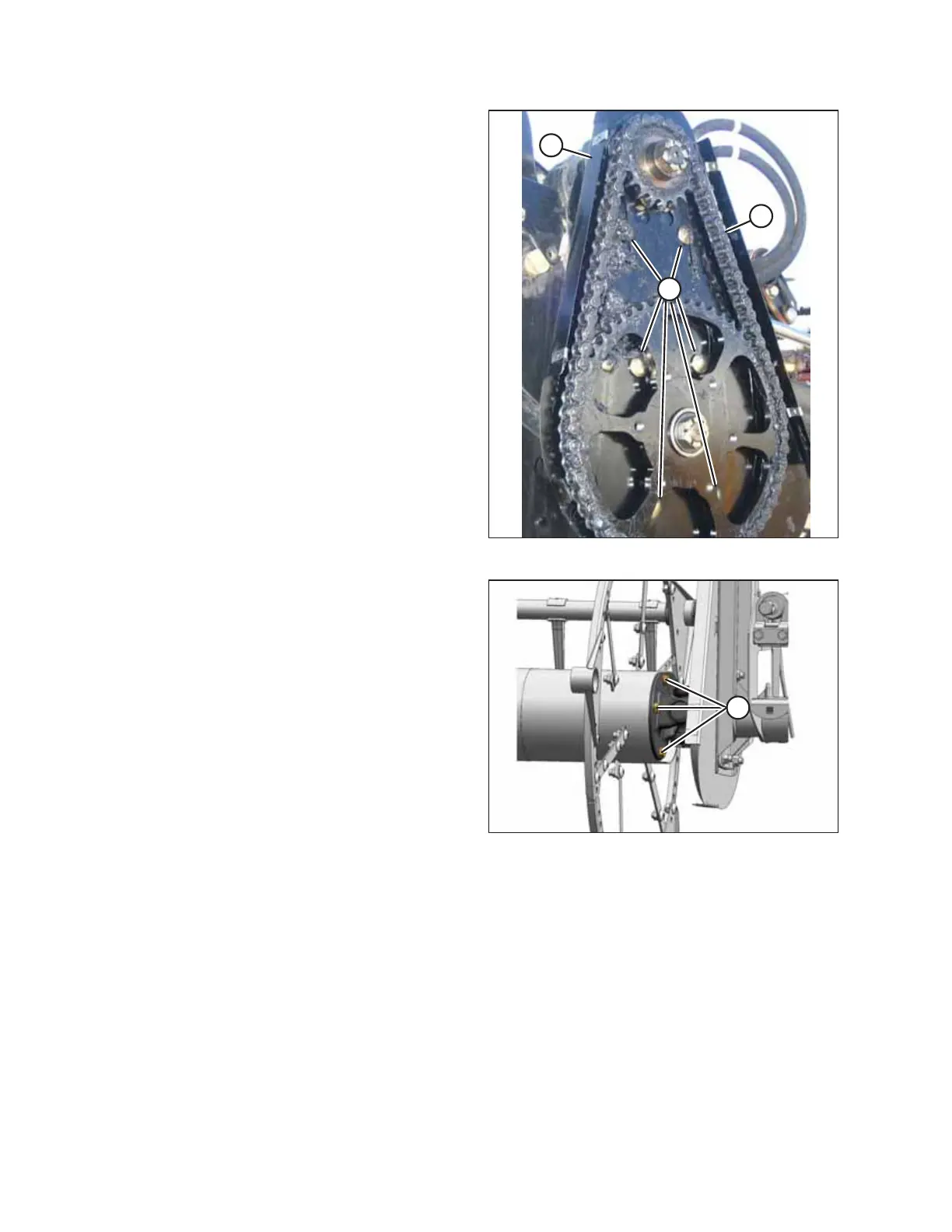

Figure 4.184: Reel Drive
10. Slide the motor and motor mount (B) up until the tension
on chain (C) is such that hand force deflects the chain 3 mm
(1/8 in.) at mid-span.
11. Tighten nuts (A), and then recheck the chain tension.
Figure 4.185: U-Joint
12. Position right reel tube (A) against the reel drive and
engage the stub shaft into U-joint (B) pilot hole.
13. Rotate the reel until the holes in the end of the reel tube
and the U-joint line up.
14. Apply medium-strength threadlocker (Loctite
®
#243 or
equivalent) to four 1/2 in. bolts (A) and install with lock
washers.
15. Torque the hardware to 104 Nm (77 lbf∙ft).
MAINTENANCE AND SERVICING
