169441 216 Revision D

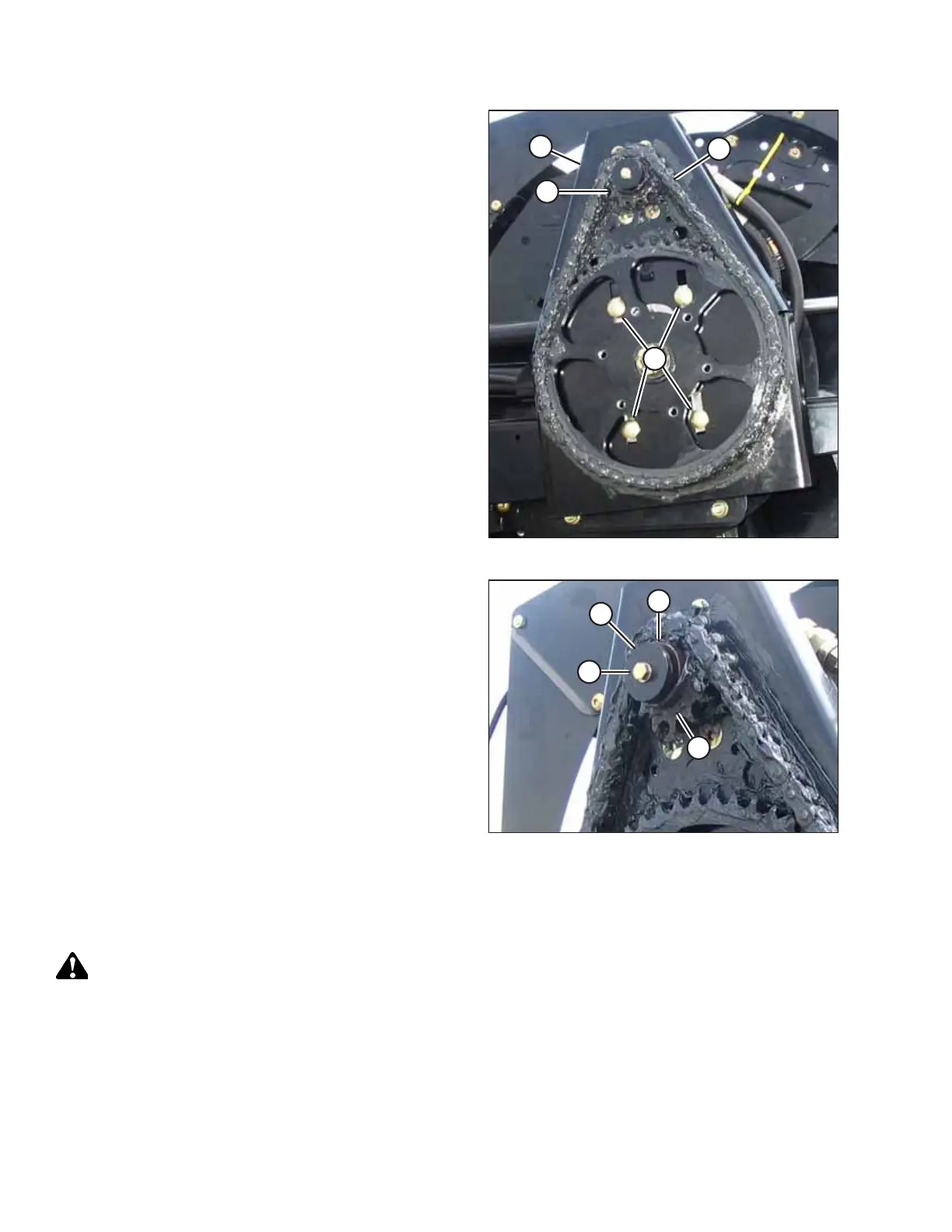

Figure 4.191: D50 Reel Drive
3. Loosen four bolts (A) and slide the motor and motor
mount (B) down towards the reel shaft.
4. Lift chain (C) off drive sprocket (D).
Figure 4.192: D50 Reel Drive
5. Remove bolt (A), lock washer (B), and flat washer (C) from
the motor shaft.
6. Remove drive sprocket (D). Ensure the key remains in
the shaft.
IMPORTANT:
To avoid damaging the motor, use a puller if the drive
sprocket does not come off by hand. Do NOT use a pry bar
and/or hammer to remove drive sprocket (C).
Removing Reel Drive Sprocket – D60
The reel drive sprocket is attached to the reel drive motor.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine and
remove the key from the ignition before making adjustments to the machine. NEVER climb onto or go underneath an
unsupported header.
1. Shut down the engine, and remove the key from the ignition.
2. Remove the reel drive cover. For instructions, refer to Removing Reel Drive Cover, page 202.
MAINTENANCE AND SERVICING
