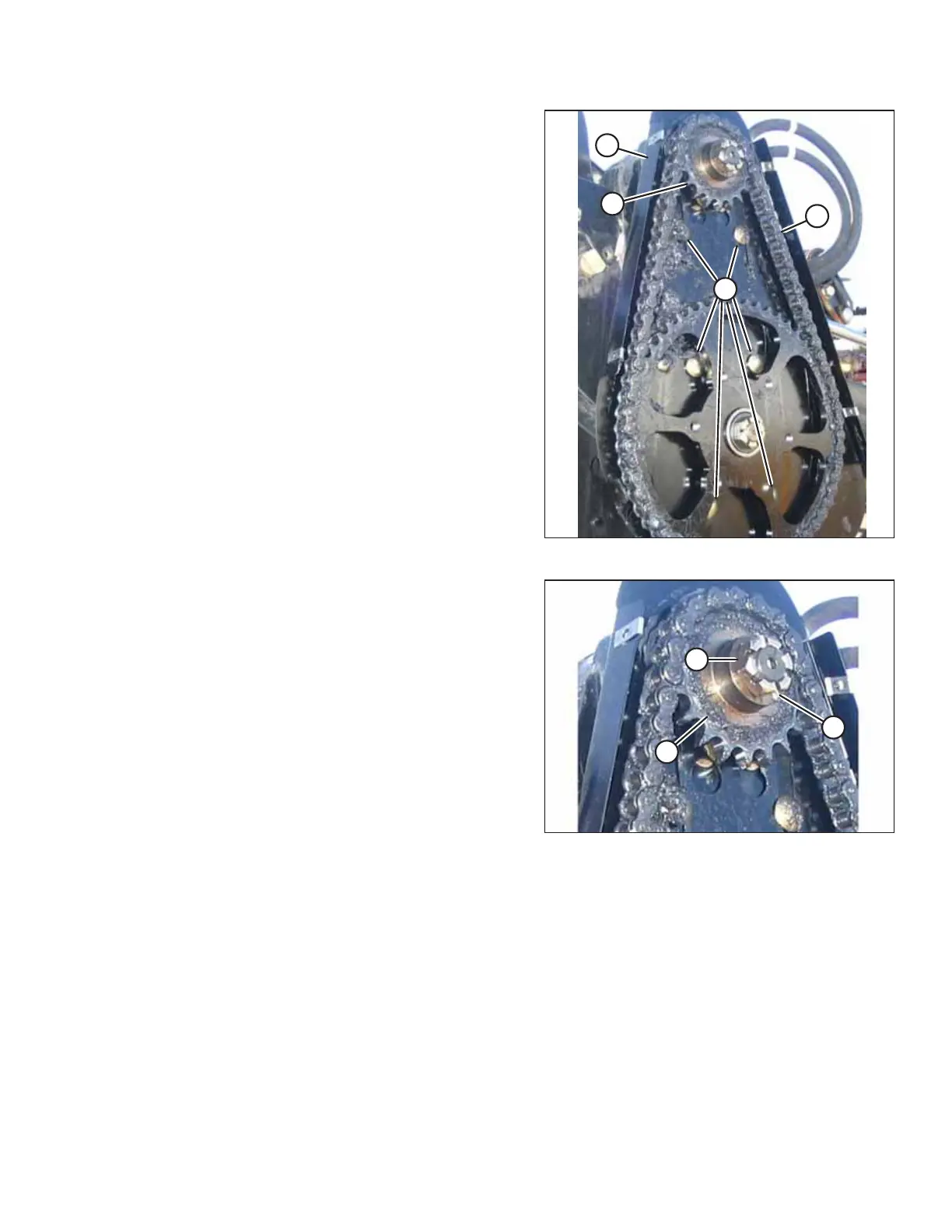

Figure 4.193: D60 Reel Drive
3. Loosen six bolts (A) and slide the motor and motor
mount (B) down towards the reel shaft.
4. Lift chain (C) off drive sprocket (D).
Figure 4.194: D60 Reel Drive
5. Remove cotter pin (A) and slotted nut (B) from the
motor shaft.
6. Remove drive sprocket (C). Ensure the key remains in
the shaft.
IMPORTANT:
To avoid damaging the motor, use a puller if the drive
sprocket does not come off by hand. Do NOT use a pry bar
and/or hammer to remove drive sprocket (C).
