EN
40

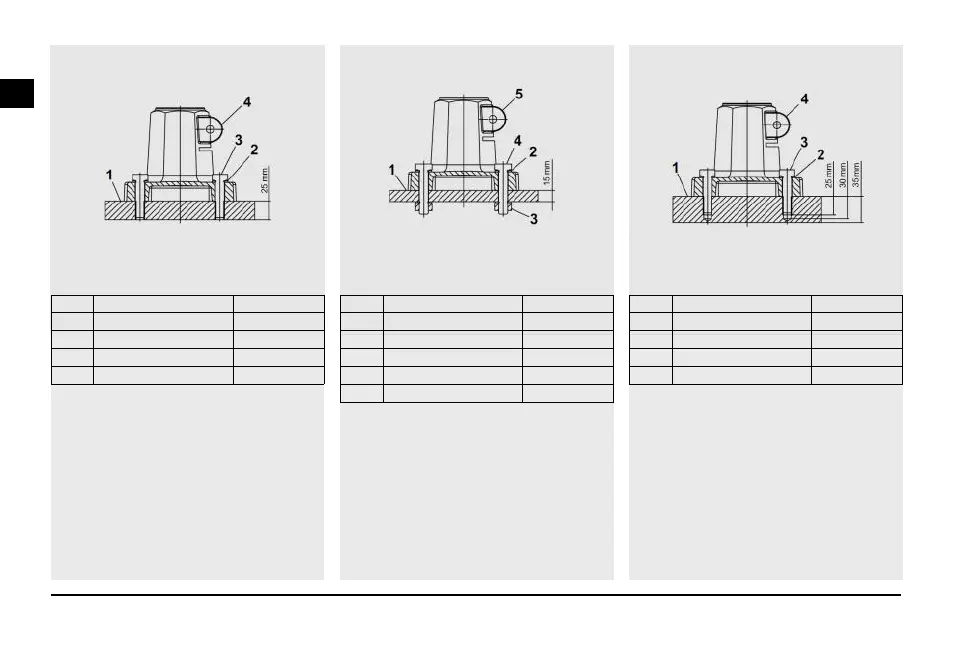

Fig.8 Fig.9 Fig.10
Section
A-A
Section
A-A
Section
A-A
(25mm thick plate with threaded through holes) (15 mm thick plate with through holes) (35 mm thick plate with dead holes)
SOLUTION A SOLUTION B SOLUTION C
POS. DESCRIPTION QUANTITY
1 15 mm thick plate 1
2 Plain washer Ø12 mm 8
3 Nut M12 4
4 HH screw M12x60 4
5 Base 1
POS. DESCRIPTION QUANTITY
1 35 mm thick plate 1
2 Plain washer Ø12 mm 4
3 HH screw M12x50 4
4 Base 1
POS. DESCRIPTION QUANTITY
1 25 mm thick plate 1
2 Plain washer Ø12 mm 4
3 HH screw M12x50 4
4 Base 1
