16 Series, Model - 2816 HST
104
Close the fuel shut-off valve.
Install new filter element. Assem-
ble filter cup and retaining nut to
filter body.
NOTE: Be sure O-ring is in
place on the filter body and filter
cup.
Loosen the filter cup retaining
nut. Remove filter cup. Remove
old filter element and clean inside
of filter cup.
Open the fuel shut-off valve and
vent the fuel system. See Fuel
System Air removal in this
manual.
STEP6
Clean fuel off the engine. Start
the engine to check for fuel leaks
around the filter, lines and fit-
tings.
NOTE: If the engine does not
have power with a full load after
you have done the filter service
and removed the air from the
system, see your Dealer to find
and correct the cause.
Fuel Filter Element Replacement

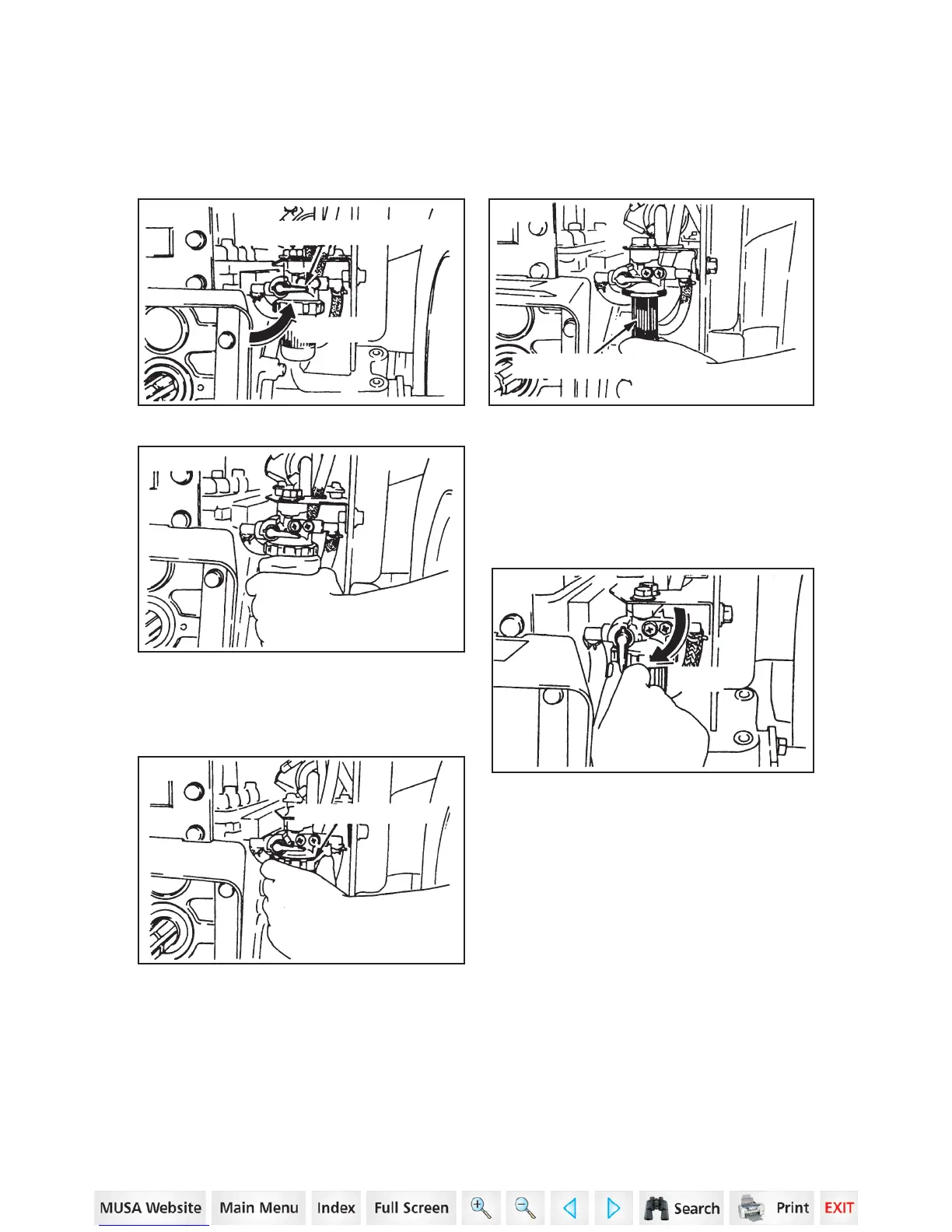

To replace the filter element, use following procedure:
OPEN
STEP5
STEP3
RETAINING NUT
STEP2
STEP1
CLOSE
FUEL SHUT-OFF VALVE
STEP4
FILTER ELEMENT
Clean the outside of the filter
body and cup to prevent dirt or
foreign materials from entering
the system.
LUBRICATION/FILTERS/FLUIDS _____________________________________________
