16 Series, Model - 2816 HST
40
NOTE: When engaging the differential lock, push the clutch pedal
down or bring speed ratio control pedal to Neutral, to stop the wheels
that are rotating, then push the differential lock pedal. Do not operate the
differential lock pedal while the wheels are rotating.

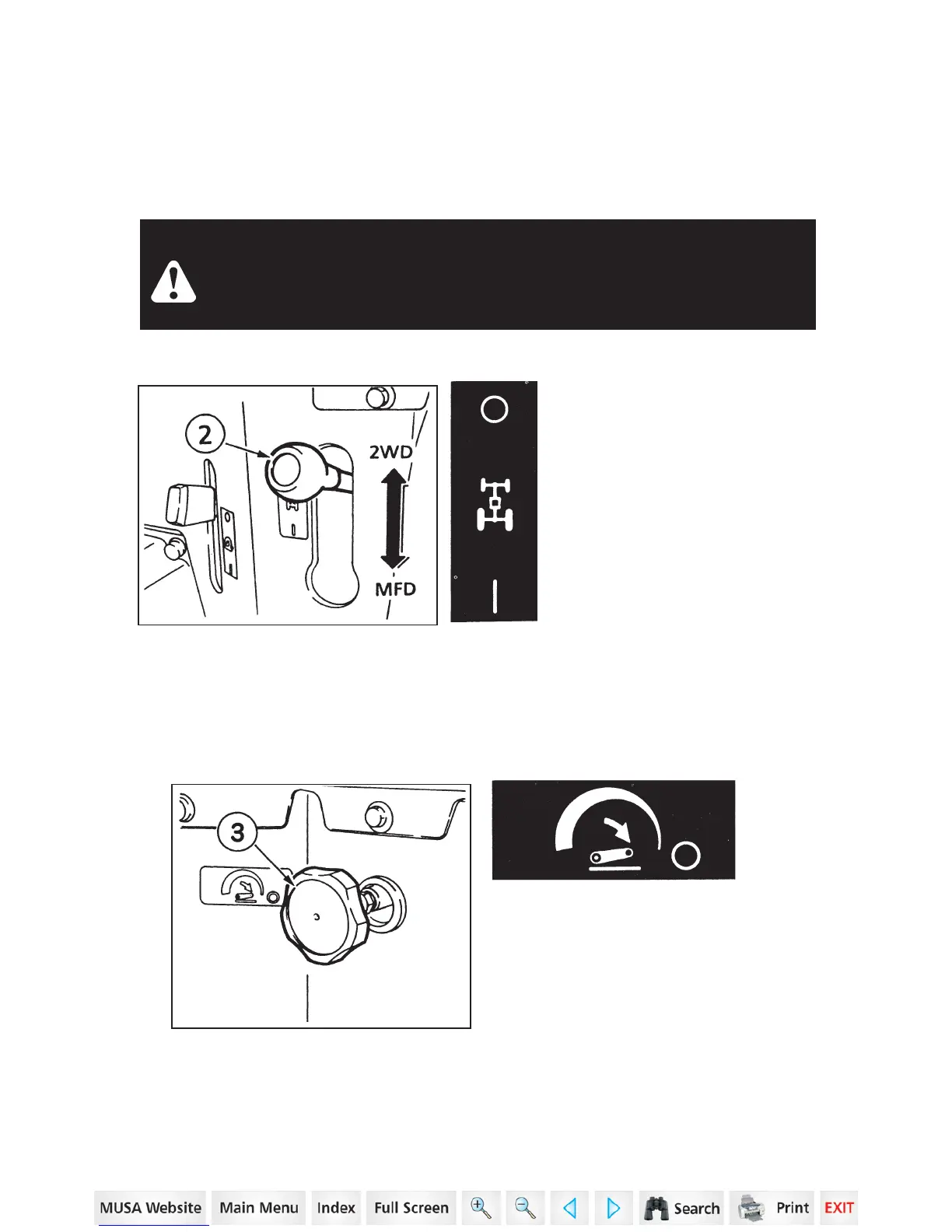

2. MFD CONTROL LEVER – To engage the MFD (Mechanical Front
Drive), move the MFD
control lever downward.
Move the lever upward to
disengage MFD (drive to the
rear wheels only).
IMPORTANT: The clutch
pedal must be pushed down
to operate the MFD lever.
3. HYDRAULIC FLOW CONTROL KNOB – Use the hydraulic flow
control knob to adjust the hitch lowering speed. Adjust the lowering
speed to provide smooth operation of the hitch with the implement
being used. Turn the knob fully clockwise to lock the hitch in position.
See Hitch Lowering Speed Adjustment in this manual for more in-
formation.
Do not drive on roads, or at high speed anywhere, with the
differential lock engaged. Difficult steering will occur, and can result
in an accident. In field operation, use the differential lock for traction
improvement, but release for turning at row ends.
M116
