16 Series, Model - 2816 HST
110
DIPSTICK
Transmission Oil Level
(Hydrostatic Drive)
Before checking the oil level of the
hydrostatic drive tractor, run the
engine for three to five minutes at
1500 RPM with the speed ratio
control lever, range shift lever and
PTO control lever in Neutral or OFF
position. Then check the oil level in
the transmission.

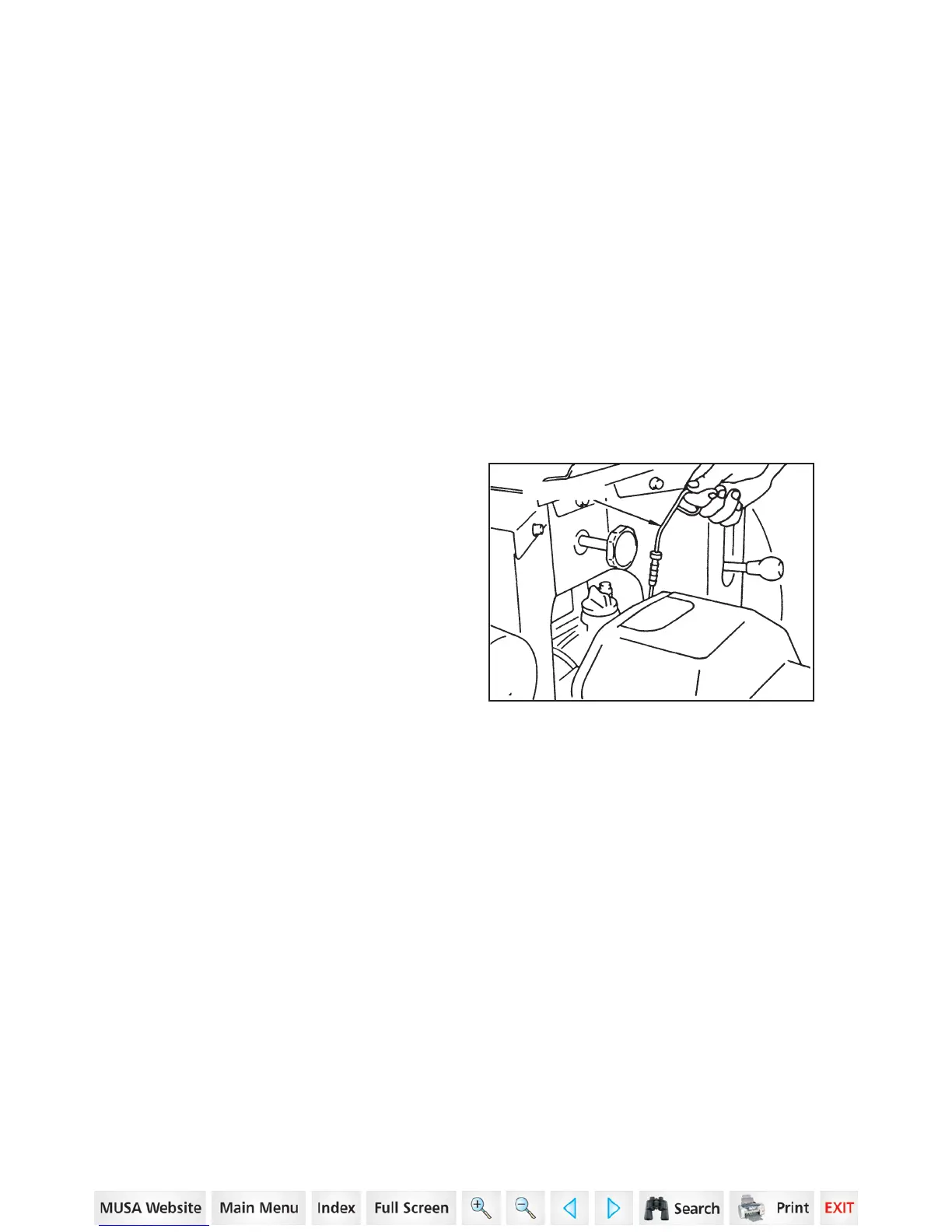

To check the transmission oil level, put the tractor on level ground.
Check the oil level on the transmission dipstick. If the oil level is below
the lower line of the dipstick, add the recommended oil to the transmis-
sion to raise the oil level to the F (Full) marked position.
TRANSMISSION & HYDRAULIC LUBRICATION
Service Specifications
Oil Level Check Interval ......................................................................Daily
Oil Change Interval.......................................................... Every 200 hours.
Oil Capacity – Hydrostatic Drive ......................... 22 Litres (23.2 Quarts).
Oil Type – Hydrostatic Drive .......... Refer Lubrication table page 89.
Hydraulic System Check .......................... Yearly inspect for leaks, cracks
and abrasion. Tighten fittings or
replace as needed.
