16 Series, Model - 2816 HST
121

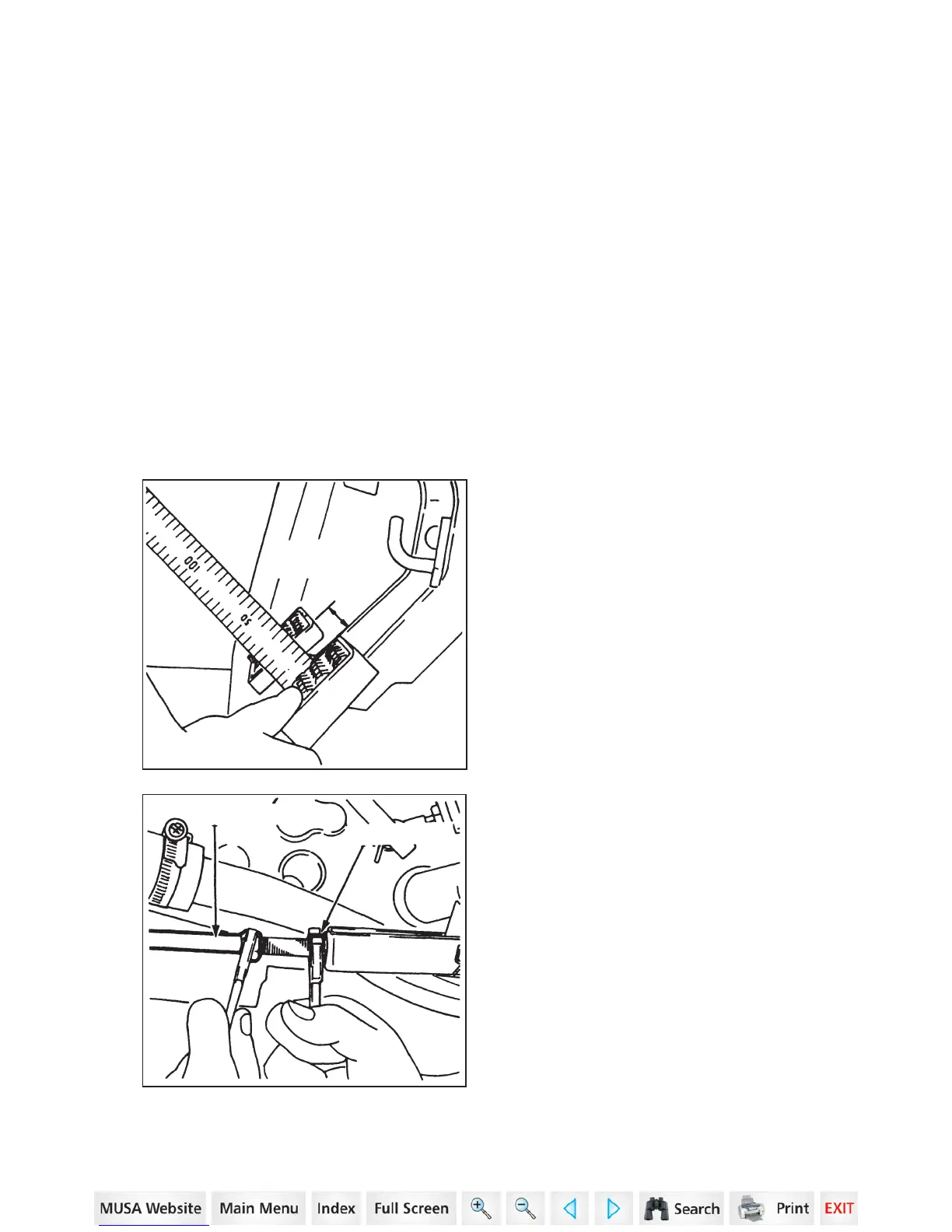

BRAKE ROD
LOCK NUT
FREE
MOVEMENT
BRAKE PEDAL ADJUSTMENT
Service Specifications
Loosen lock nut and rotate the
brake rod to make a free play of 20
to 30 mm (0.79 to 1.18 in.) at the
brake pedal.
With this much play obtained,
tighten the lock nut.
Confirm that the right and left brakes
operate simultaneously by running
the tractor.
If not, adjust both of them by means
of the brake rods.
Brake Pedal Check and Adjustment Interval..... Every 200 hours or yearly
Free Pedal Movement Specification .................................... 25 mm (1 inch)
Brake pedal free play is very important and must be checked at the
recommended intervals. If there is no free movement, the brake shoes
will wear quickly.
If there is too much free movement, accidents may occur. If there is not
the same free movement between LH pedal and RH pedal, it may cause
serious accidents.
Put the tractor on level ground, move the range lever in the L position.
Stop the engine.
MAINTENANCE/ADJUSTMENTS _____________________________________________
