16 Series, Model - 2816 HST
15
Remove the lock nuts.
Remove the lock pins.

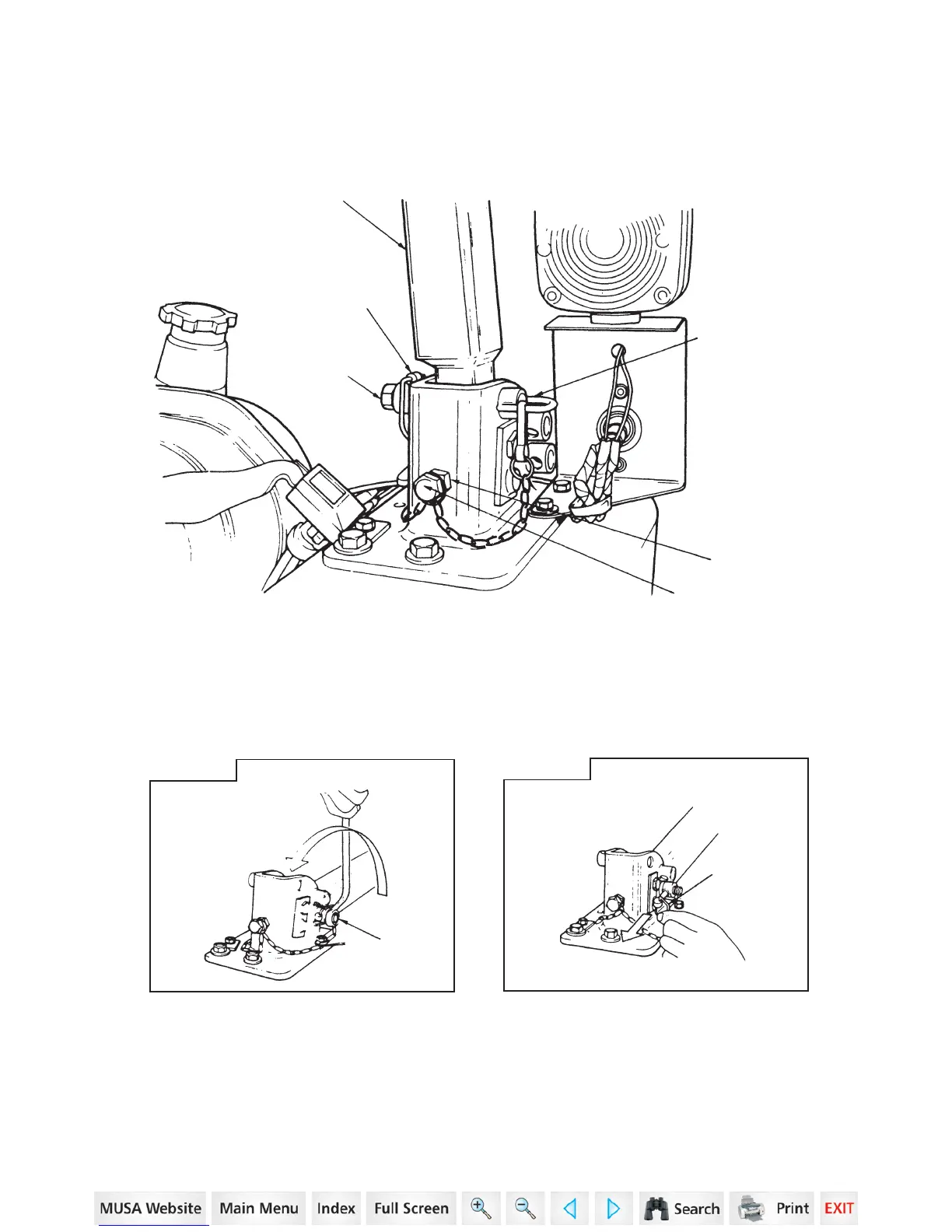

Securing the ROPS in the Upright Position
LOCK PIN
LOCK NUT
POSITION PIN
LOCK BOL
T
JAM NUT
ROPS BAR
(NORMAL OPERA
TING POSITION)
LOCK PIN
LOCK NUT
STEP 2
STEP 1
For normal operation, the ROPS must be in the secured upright position.
Place the tractor on level ground, put the range shift lever in the L
position, apply the park brake and stop the engine.
