Mahindra 2816 HST User Manual

16 Series, Model - 2816 HST
13

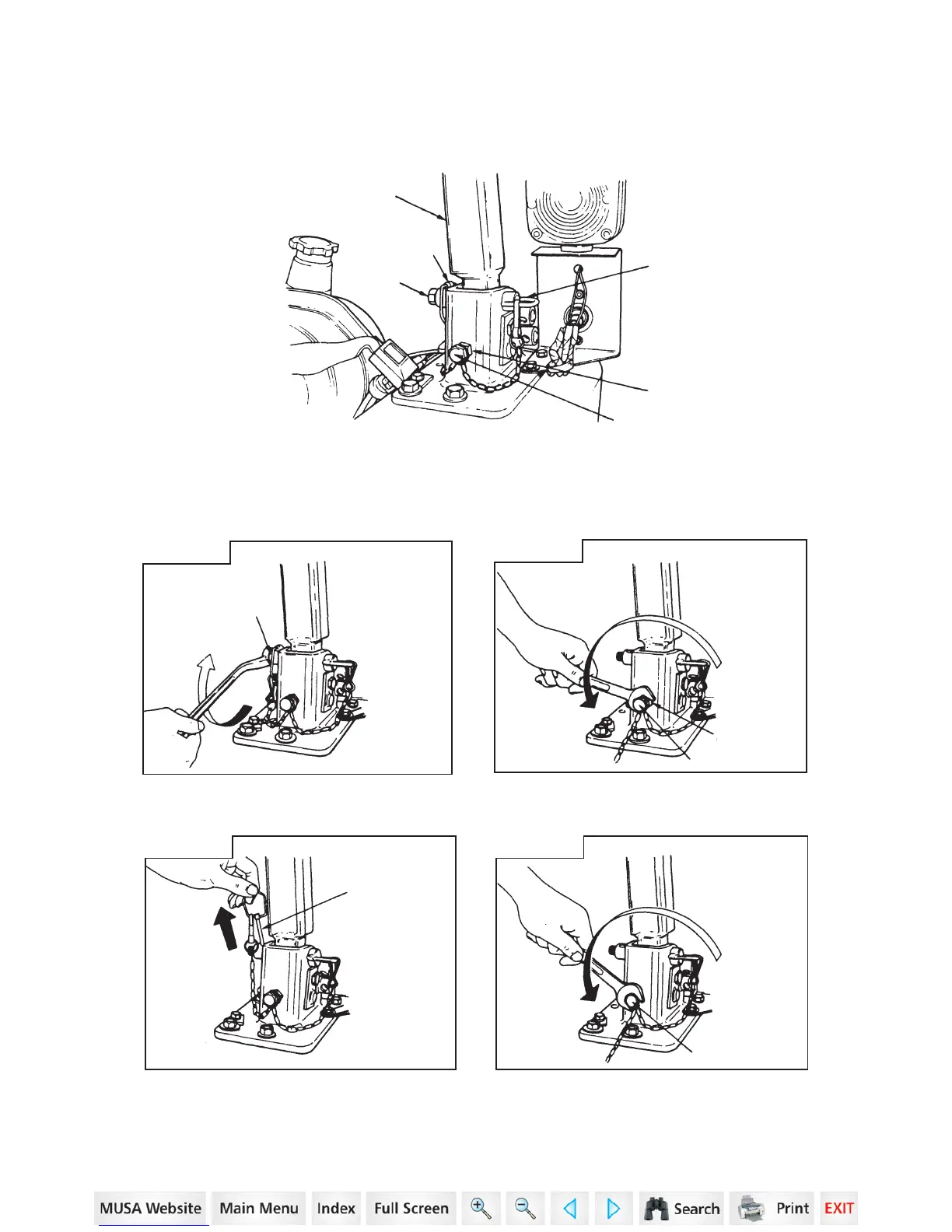

To fold the ROPS, put the tractor on level ground, put the range shift
lever in the L position, apply the park brake and stop the engine.
Folding the ROPS
ROPS BAR
(NORMAL OPERATING POSITION)
IMPORTANT: Do not fold the ROPS with a sunshade installed.
Remove the lock pins.
STEP 2
LOCK PIN
Loosen the jam nut on the lock
bolts.
JAM NUT
LOCK BOLT
STEP 3
Remove the lock nuts.
LOCK NUT
STEP1
STEP 4
LOCK BOLT
Loosen the lock bolts enough to
permit the position pin to be
removed. DO NOT remove pins
until STEP 6.
JAM NUT
POSITION PIN
LOCK PIN
LOCK NUT
LOCK BOLT
