16 Series, Model - 2816 HST
29

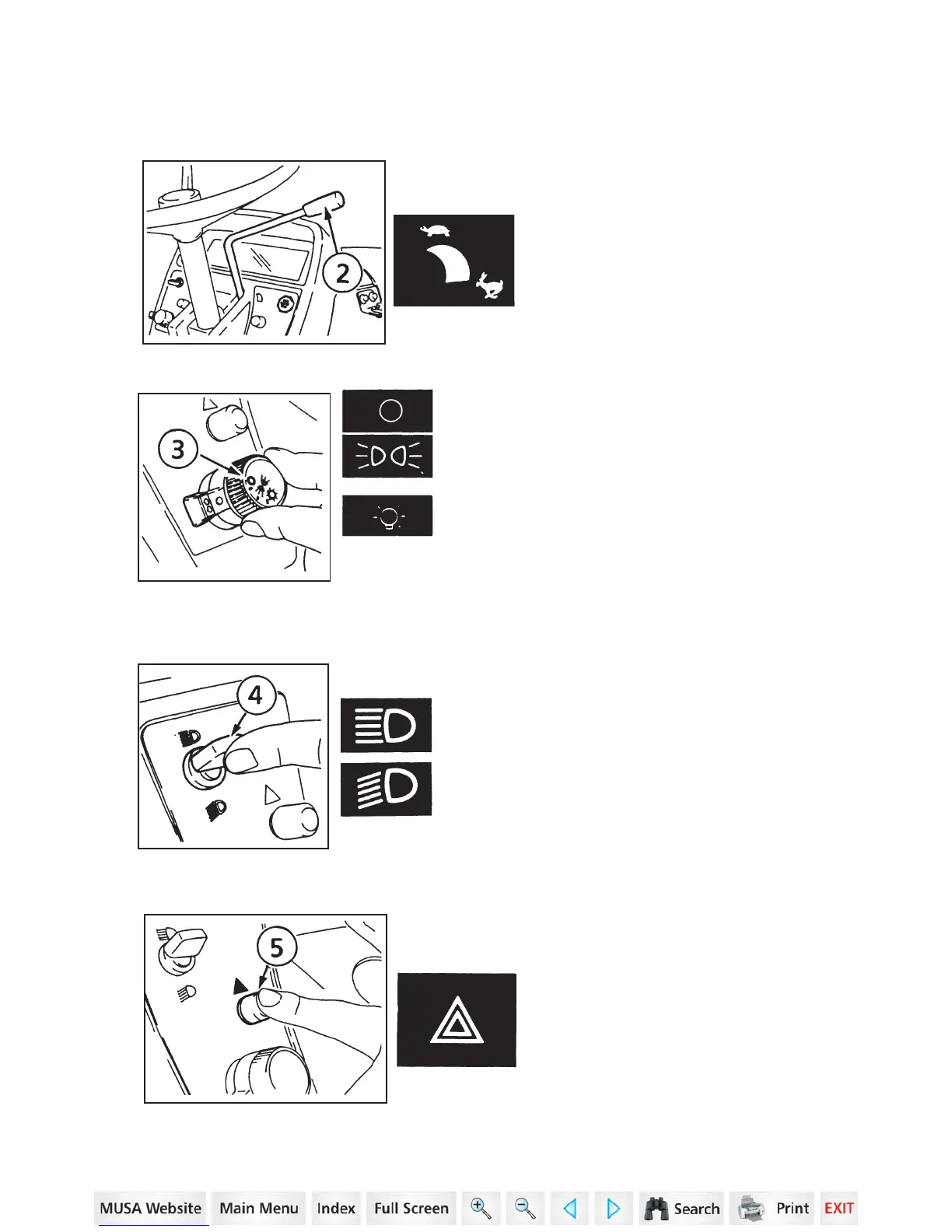

2. ENGINE SPEED CONTROL LEVER – Move the engine speed
control lever to the rear to increase engine
speed. Move the engine speed control lever
forward to decrease engine speed.
3. LAMP SWITCH – Three position switch as follows:
– ALL lamps are OFF. (Turn signal and
flasher lamps can be turned on.)
– First position clockwise illuminates
instrument panel lamp and rear red
lamp.
– Second position clockwise illumi-
nates headlamps, instrument panel
and rear red lamp.
Use dimmer switch to dim or brighten
the headlamps.
4. DIMMER SWITCH – Move the dimmer switch to dim or brighten the
head lamps, when lamp switch is in
second position.
– Move the switch up to brighten the
head lamps.
– Move the switch down to dim the
head lamps.
5. FLASHER CONTROL BUTTON – To flash the Flasher Lamps when-
ever the tractor is operated or traveling on
roads.
Push the button to energize the lamps.
INSTRUMENTS/CONTROLS _____________________________________________
