16 Series, Model - 2816 HST
127
BATTERY
Auxiliary Battery Connections
IMPORTANT: Always connect the negative cable last and disconnect
the negative cable first so you do not cause a spark at the battery. A
spark can cause a battery explosion and cause injury.

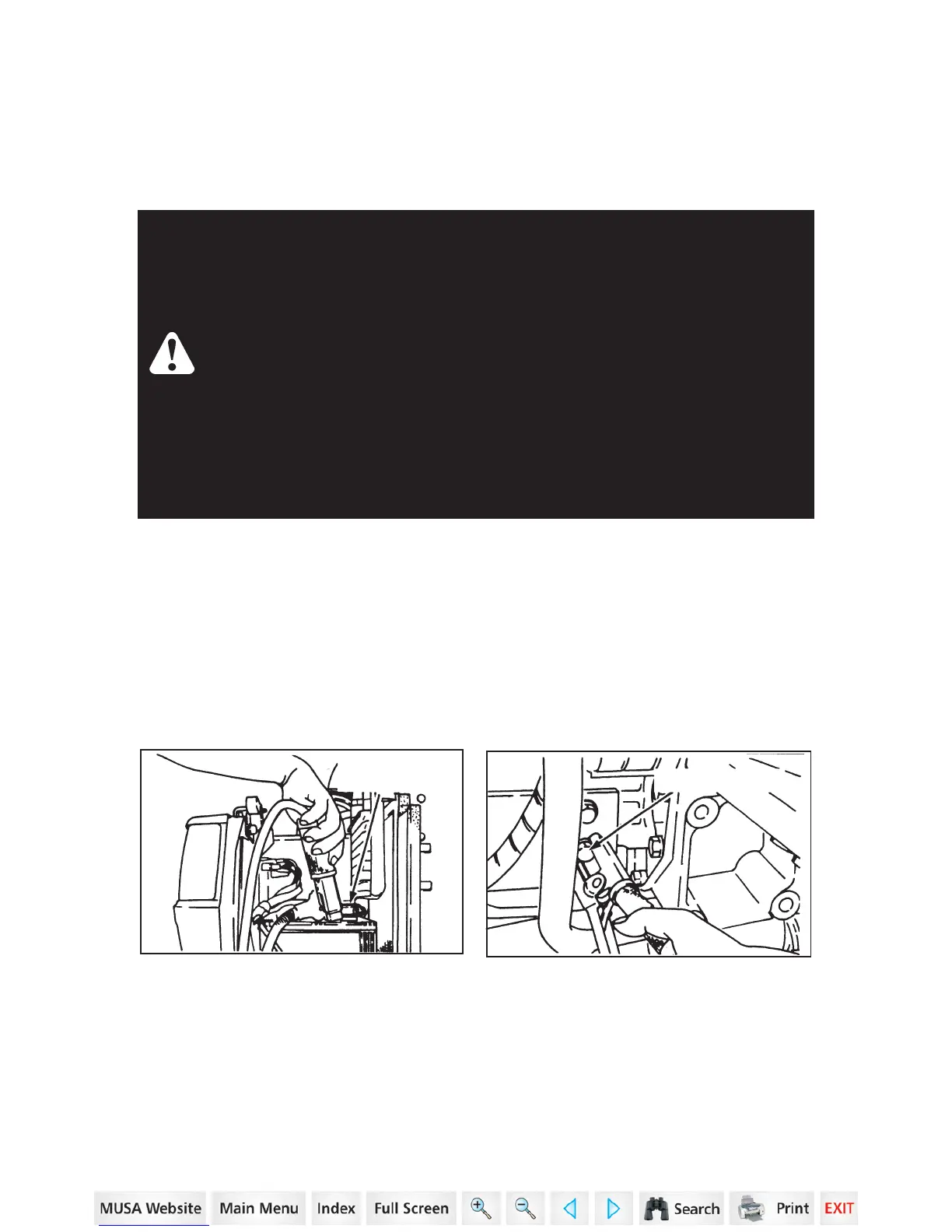

Connect the negative ( – ) cable
clamp of the auxiliary battery to
the tractor side rail as a ground.
Connect the positive (+) cable
clamp of the auxiliary battery to
the positive cable terminal of the
tractor battery.
When connecting an auxiliary battery or charger to the tractor battery,
make sure you connect positive to positive and negative on the auxiliary
battery to the tractor side rail as a ground. Do not connect auxiliary
battery cables across the terminals of the starter. Start the engine from
the operator’s seat.
IMPORTANT: This is the only safe method to start the tractor engine
with an external power supply. Any other method of starting can cause
injury or death to the operator or other persons.
POSITIVE(+)
TERMINAL
NEGATIVE (–)
Engine can start with transmission in gear when neutral or safety
start switch is by-passed:
1. Do not connect across terminals on starter.
2. Attach a booster battery by connecting the positive terminal of the
booster battery to the “positive terminal” provided or to the posi-
tive terminal of the machine battery. Connect the negative terminal
of the booster battery to the “negative terminal” provided or to the
chassis of the machine.
Then use recommended starting procedures from operators seat.
3. When necessary, repair electrical system components promptly
so that “jump starting” will not be attempted.
Machine run-away can cause injury or death to operator and bystan-
ders.
M107C
