16 Series, Model - 2816 HST
37
(Hydrostatic
Drive)

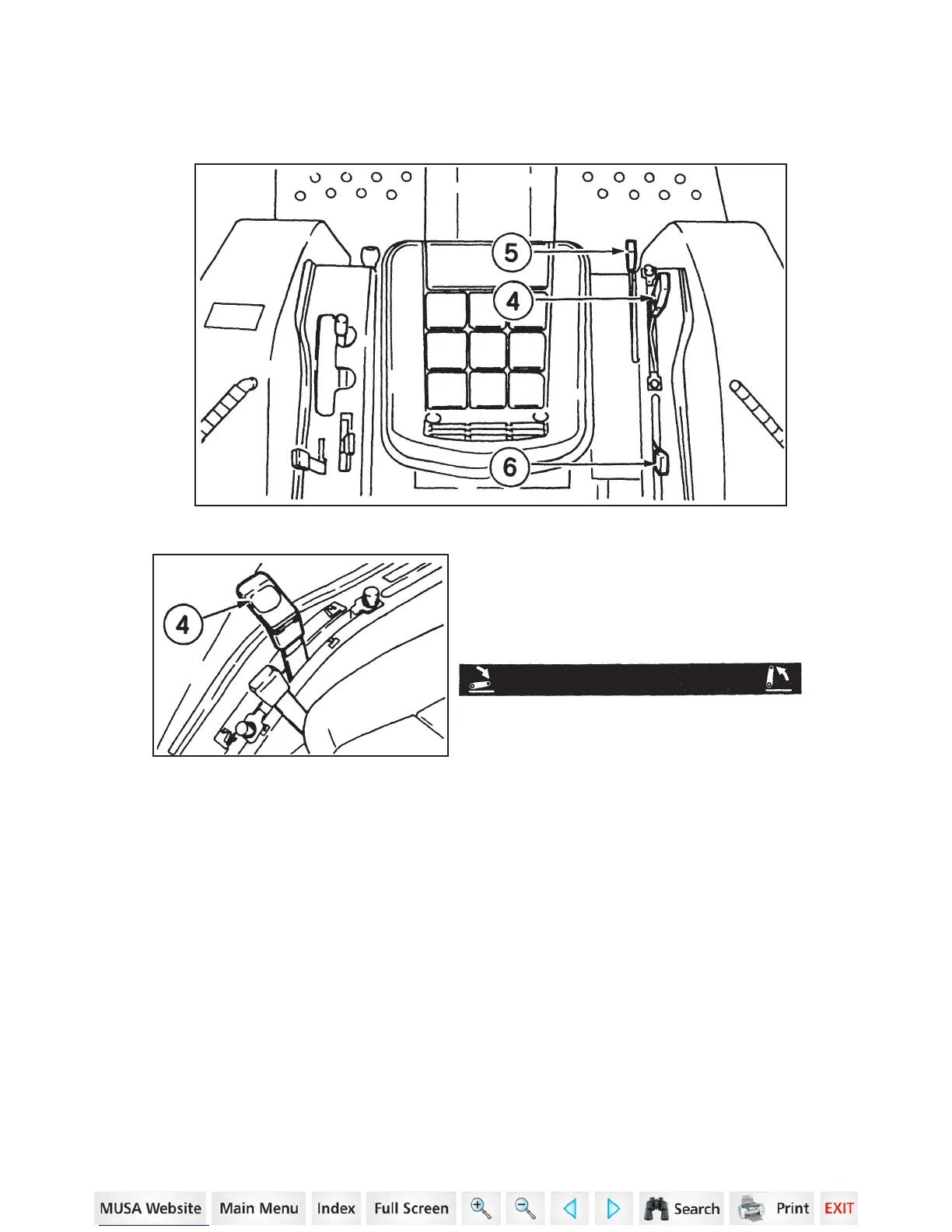

4. HITCH CONTROL LEVER – Use this lever to control the position of
the hitch. Move the lever forward to
lower the hitch to the required depth.
Move the lever to the rear to raise
the hitch to the required height.
INSTRUMENTS/CONTROLS
_____________________________________________
46
48
Table of Contents
About this Manual
2
Serial Numbers
9
General Table of Contents
10
Safety Precautions
11
Safe Operation
14
Travelling on Roads and Streets
16
Steering and Turning the Tractor
16
Towing and Operating on Hills
16
Using Attachment
17
Decals
18
Roll over Protective Structure (ROPS)
20
Low Clearance Positions
21
Tractor Roll over
22
ROPS Safety Rules
22
ROPS Label
22
Folding the ROPS
23
Securing the ROPS in the Upright Position
25
Specifications
30
Power Train
31
Differential Lock
32
Hydraulic System
33
Dimensions
34
Tachometer and Hourmeter
35
Instruments and Indicators
35
Engine Coolant Temperature Gauge
36
Fuel Gauge
36
Turn Signal Indicators
36
Engine Oil Pressure Indicator
37
High Beam Indicator
37
Charge Indicator
37
Engine Glow Plug Indicator
37
Operating Controls
38
Control Switches
38
Starter Key Switch
38
Engine Speed Control Lever
39
Lamp Switch
39
Dimmer Switch
39
Flasher Control Button
39
Turn Signal Switch
40
Horn Button
40
Accelerator Pedal
41
Control Levers and Pedals (Hydrostatic Drive)
41
Speed Ratio Control Pedal
42
Brake Pedals
42
Brake Pedal Lock
42
Park Brake Lever
43
Speed Lock Lever
44
Clutch Pedal
44
Clutch Lock Latch
44
MID PTO Control Lever
46
Rear PTO Control Lever
46
Range Shift Lever
46
Hitch Control Lever
47
Draft Control Lever
48
Remote Hydraulic Control Lever, with Float Position
48
Differential Lock Pedal
49
MFD Control Lever
50
Hydraulic Flow Control Knob
50
Operators Seat
51
Steering Column Tilt
51
Before Starting the Engine
52
Operating Instructions
52
Run-In Procedure
53
Normal Starting Procedure
54
Starting Procedure after Transporting on Truck or Flatcar
57
Stopping the Engine
58
Cold Temperature Operation
59
Warming the Engine and Transmission
60
Towing
61
How to Transport Tractor
61
Transmission Operation
62
Hydrostatic Drive Transmission
62
Differential Lock
63
Power Takeoff (PTO)
64
MID PTO
67
Power Takeoff Guards
68
PTO Operating Safety
69
Three Point Hitch Connecting Implements
69
Drawbar Connecting Implements
69
Warning Lamps
71
Rear Work Lamp
72
Connecting Implement to Drawbar
73
Field Operation
73
Safety Chain
74
Three Point Hitch System
75
Hitch System Adjustments
76
Upper Link
77
Stabilizer
77
Hitch Operation
78
Connecting Implement to Hitch
78
Disconnecting Implement from Hitch
78
Operating with Draft Control
81
Hitch Lowering Speed Adjustment
82
Remote Hydraulic Control Valve
83
Remote Hydraulics Operation
84
Float Operation
84
Hydraulic Block
85
Adding Fluid after Connecting Cylinders and Hoses
86
Tire and Rim Equipment
88
Tire Inflation Specifications
88
Tire Load Capacity
89
Check Air Pressure
90
Tire Inflation Procedure
90
Wheel Mounting Torques
91
Front Wheel Adjustment
92
Toe-In Adjustment
93
Tire Size Combinations - MFD
95
Tractor Ballast
96
Front End Weights
96
Hood
98
Lubrication/Filters/Fluids
98
Lubrication Table
99
Service Hour Interval
100
Engine Hourmeter
100
Service after First 50 Hours
101
System Capacities
102
Lubrication/Maintenance Charts
104
Engine Lubrication
106
Engine Oil Level
106
Engine Oil Change
107
Engine Oil Filter
108
Cooling System
109
Coolant Solutions
110
Cleaning the Cooling System
111
Fuel System
112
Water Removal from the Filter Cup
112
Diesel Fuel Specifications
113
Fuel Filter Element Replacement
114
Fuel System Air Removal
115
Fuel Injection Pump and Nozzle Check
116
Air Induction System
117
Dump Valve
117
Air Filter Element Removal
118
Element Cleaning
119
Air Induction System Inspection
119
Transmission and Hydraulic Lubrication
120
Transmission Oil Level (Hydrostatic Drive)
120
Transmission Oil Change
121
Hydraulic Filter (Hydrostatic Drive)
122
Hydrostatic System Filter (Hydrostatic Drive)
123
Front Axle Lubrication (MFD)
124
Front Axle Oil Level
124
Front Axle Oil Change
125
Cooling System Maintenance
126
Grille Screens and Radiator Area
126
Fan Belt Adjustment
127
Fan Belt Replacement
128
Clutch Pedal Adjustment
129
Maximum Pedal Movement Adjustment
130
Brake Pedal Adjustment
131
Raise Stop Setting Position
132
Electrical System
133
General Service Information
134
Alternator Charging System
134
Fuses
135
Line Fuse
136
Auxiliary Battery Connections
137
Battery Cables and Terminals
138
Removal and Installation of Battery
138
When Charging the Battery
139
When Battery Is Not in Use
139
Head Lamp Adjustment
140
Storing the Tractor
141
Storage
141
Removing from Storage
142
