16 Series, Model - 2816 HST
73

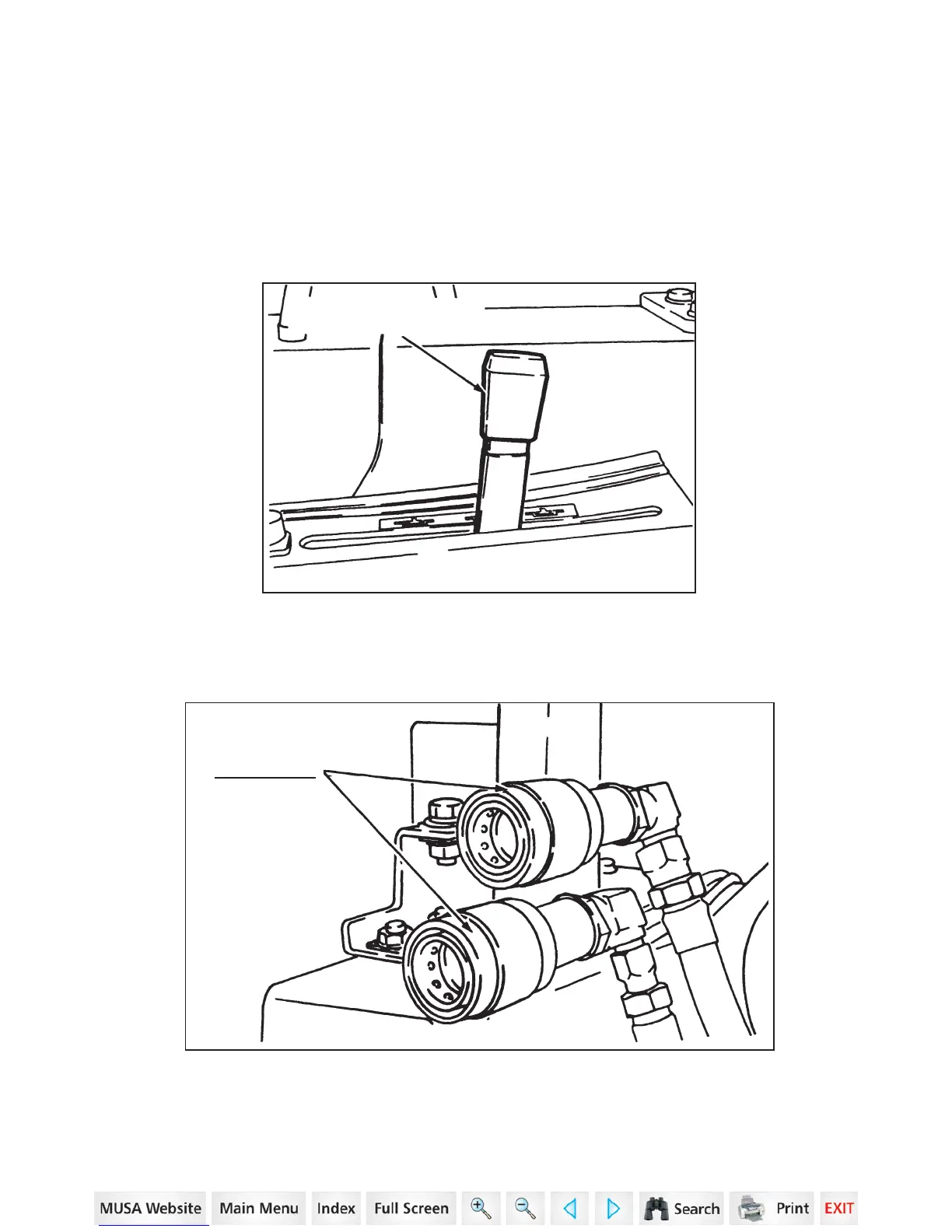

REMOTE HYDRAULIC CONTROL VALVE
(IF EQUIPPED)
REMOTE HYDRAULIC
CONTROL LEVER
HYDRAULIC
COUPLERS
FIELD OPERATION ________________________________________________________
A double acting remote hydraulic control valve with a “float position”, is
available from your Dealer or Factory Installed.
If equipped, the control lever is located on the right side.
Connect the implement hoses to the remote hydraulic couplers so that
the implement lowers when the control lever is pushed forward and
raises when the lever is pulled rearward. Switch the hoses if the imple-
ment works in the opposite way.
