16 Series, Model - 2816 HST
34
7. CLUTCH PEDAL — The clutch must be disengaged when starting the
engine, stopping the tractor, storing the tractor and operating the
following levers, gear shift lever, range lever, rear PTO lever, MID
PTO lever, MFD lever, creep lever.
7-1. SINGLE CLUTCH
Pedal has two positions as follows:
1. Pedal completely released – Transmission and PTO engaged
2. Pedal completely depressed – T ransmission and PTO disengaged

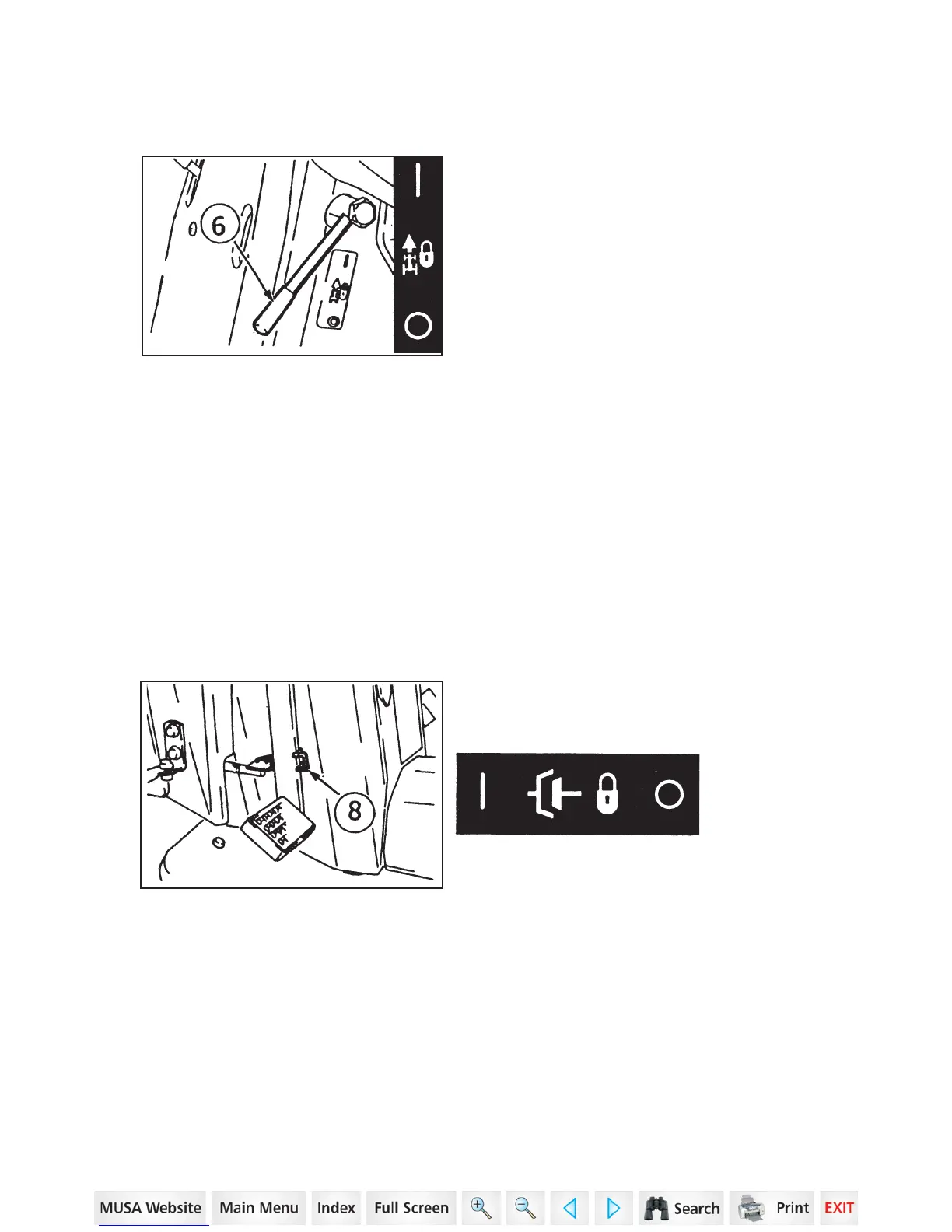

8. CLUTCH LOCK LATCH – For long term storage, lock the clutch
pedal in the disengaged position. This
will prevent the clutch disc from
sticking to the engine flywheel.
6. SPEED LOCK LEVER –To keep a constant forward travel sp-
eed, move the lever fully upward,
while holding the speed ratio control
pedal at the desired speed. It does
not work in reverse.
INSTRUMENTS/CONTROLS _____________________________________________
