16 Series, Model - 2816 HST
54

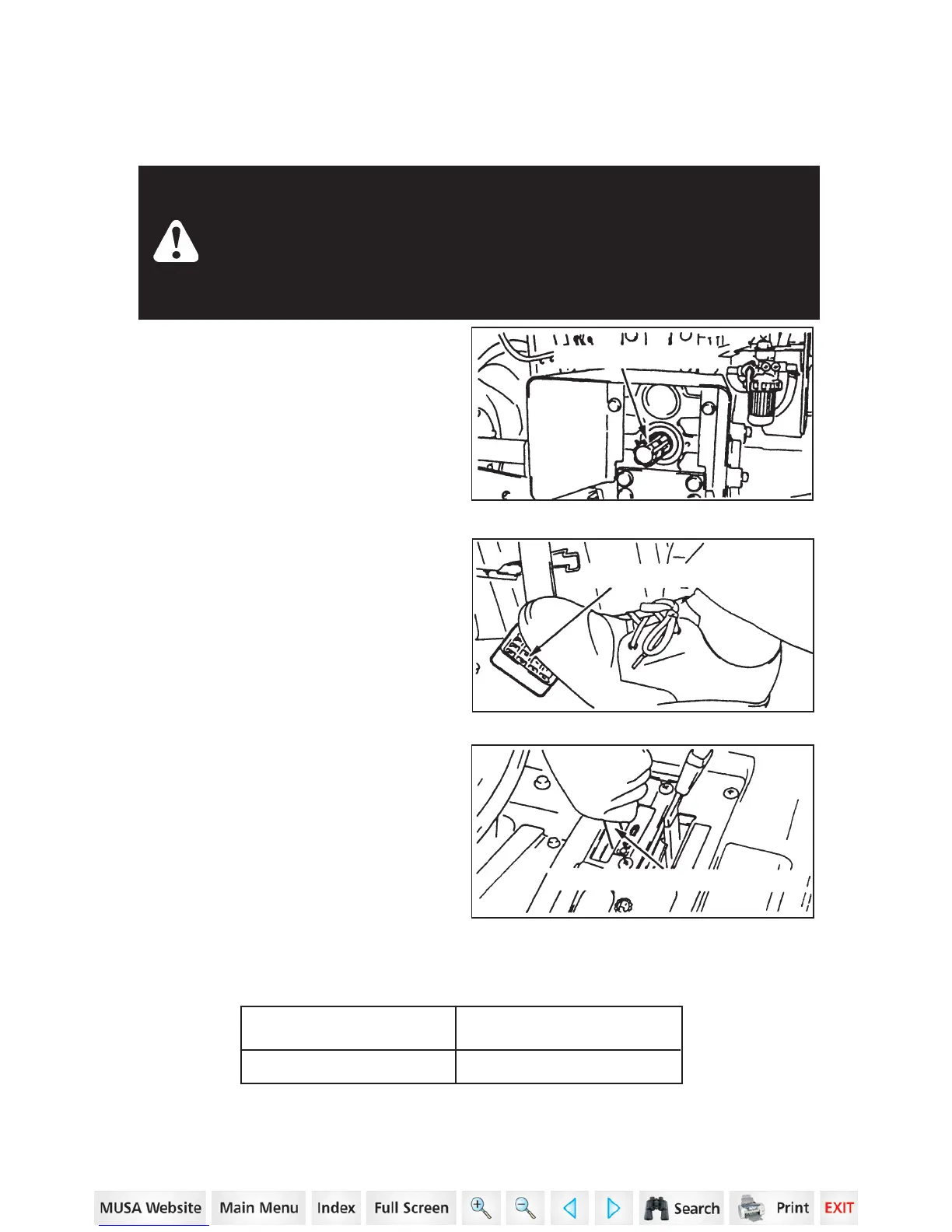

REAR PTO CONTROL LEVER
CLUTCH PEDAL
REAR PTO SHAFT
POWER TAKEOFF (PTO)
Rear PTO
The rear PTO is a 540 RPM with
a 34.9 mm (1 3/8 inch) diameter 6
spline output shaft.
ENGAGE THE REAR PTO AS
FOLLOWS:
1. Push the clutch pedal fully.
2. Move the PTO control lever
forward or rearward.
3. Release the clutch pedal slow-
ly.
DISENGAGE THE REAR PTO
AS FOLLOWS:
1. Push the clutch pedal fully.
2. Move
the PTO control lever to
the N (Engine Start) Slot.
NOTE: Keep the PTO control
lever in the OFF position when
starting the engine and when the
PTO is not being used.
3. Release the clutch pedal
slowly.
The following table shows the required engine speed to get the required
Rear PTO output shaft speed.
PTO Output Required
Shaft Speed Engine Speed
540 RPM 2356 RPM
PTO driven machinery can cause serious injury or death, usually due
to wrapped clothing. When required by the job to be in the drive shaft
area, stay clear of rotating parts. Before working on the drive shaft,
or servicing or clearing the driven machine, where applicable on this
tractor, put the PTO clutch lever in the DISENGAGE position, the PTO
lever in the NEUTRAL or OFF, and STOP the engine.
M125A
OPERATING INSTRUCTIONS _______________________________________________
