Mahindra 2816 HST User Manual

16 Series, Model - 2816 HST
83

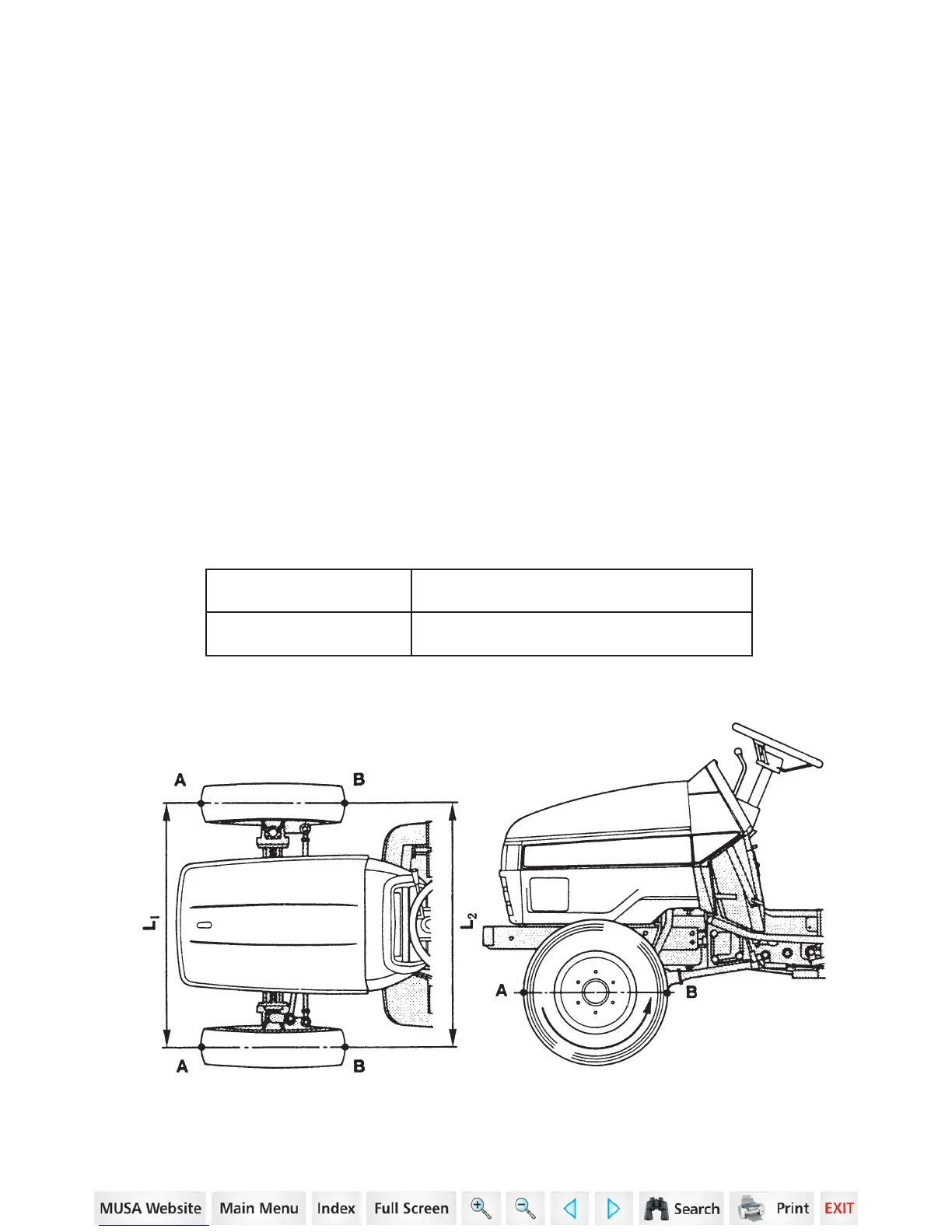

Toe-in Adjustment
TO CHECK THE TOE-IN, USE THE FOLLOWING PROCEDURE:
1. Put the tractor on level ground and the wheels in the straight ahead
position.
2. Place chalk marks at points A on the centerlines of both front tires at
the same height as the centerline of the hub cap.
3. Measure the distance (L
1
) between the chalk marks at points A.
4. Move the tractor forward a distance equal to one-half revolution of the
front wheels.
5. The chalk marks will now be at points B. Measure the distance (L
2
)
between the chalk marks at points B.
6. The figure of L
2
minus L
1
is the toe-in. Make sure the toe-in is
adjusted properly. If not, adjust the toe-in.
FRONT AXLE TYPE TOE-IN (L
2
— L
1
)
MFD 0 to 0.20 INCH (0 to 5 mm)
TURN THE WHEELS
ONE-HALF
REVOLUTION
TIRES/WHEELS/SPACING/BALLAST __________________________________________
