16 Series, Model - 2816 HST
88
HOOD
To do maintenance work on the engine lubrication system, cooling
system, fuel system and air induction system, you must lift the tractor
hood.
Pull the hood latch to release the
hood.
Remove both side covers.
Lift the hood, and connect the
Support Rod.
Unlock the rubber latches on top
of each side cover to release the
side cover.

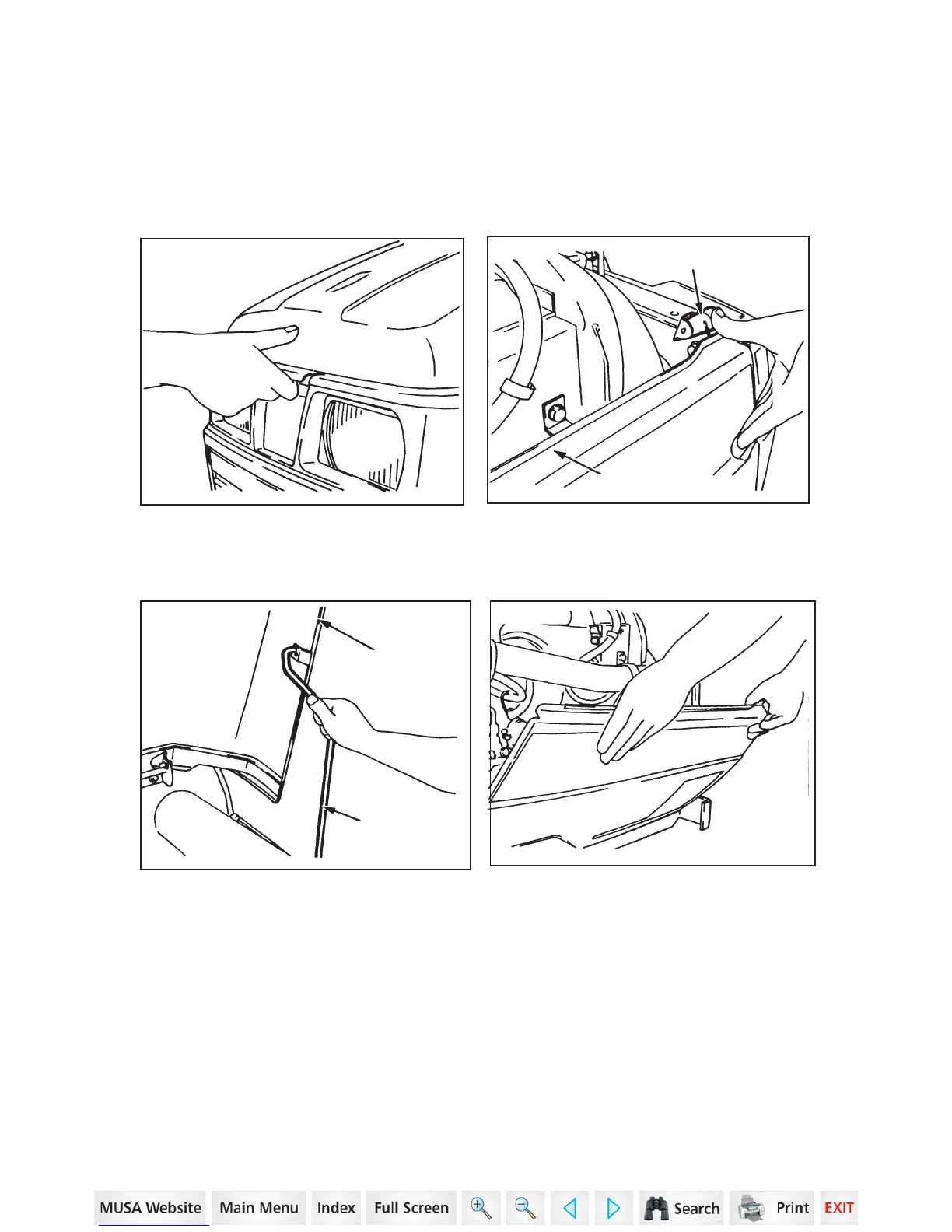

STEP1
STEP3
RUBBER LATCH
R.H. SIDE COVER
STEP2
BONNET
PROP ROD
STEP4
